Features:
Operator Size 14.4mm
Watts 20
Volt Amps 21
Voltage All
Insulation Class H
Rating IP65

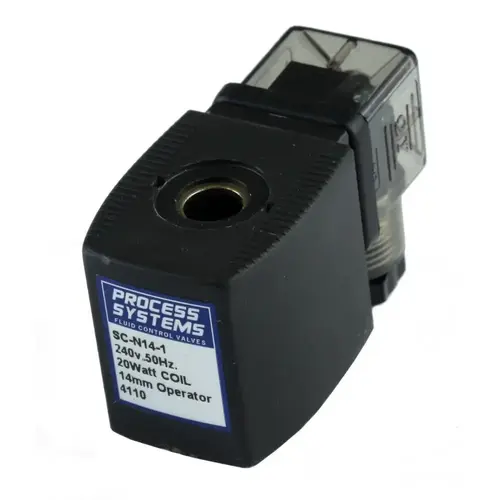

Solenoid Coil and DIN Plug to suit 14mm operator. It can suit any brand solenoid valve as long as it complies to the specs of this coil, our models are listed below. Class H closed wound insulation which results in a maximum operating temperature of 180°C and max ambient temperature of 50°C.
Valve Series | Description |
---|---|
B36 | Brass 2/2 General Purpose Differential Normally Open (up to 1”) |
S36 | Stainless Steel 2/2 General Purpose Differential Normally Open (above 1”) |
A67 | Aluminium 3/2 Differential Normally Closed |
ES55D | Stainless Steel 2/2 Direct Acting Normally Closed (1/4”) |
Model | Voltage | Resistance (Ω) | Amps | POWER | Operating Temperature (℃) |
---|---|---|---|---|---|
SC-N14 | DC12V | 8.64 | 1.330 | 16W | 85 |
DC24V | 41 | 0.560 | 13.5W | 80 | |
AC24V | 6.1 | 0.940 | 22VA | 70 | |
AC110V | 124 | 0.244 | 27VA | 85 | |
AC240V | 690 | 0.093 | 22.5VA | 70 |
