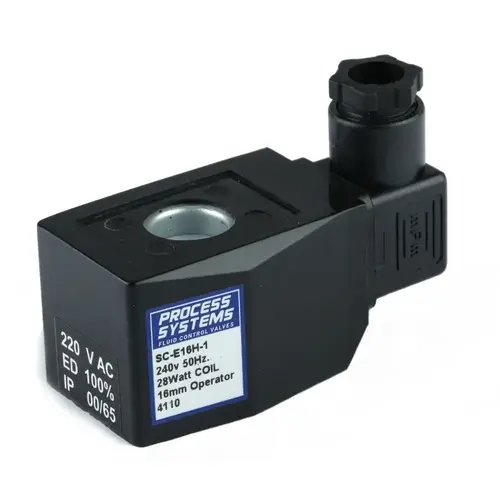

16mm Solenoid Coil

Operator Size 16mm
Watts 30
Volt Amps 45
Voltage All
Insulation Class H
Rating IP65

• What is a 16mm Solenoid Coil?

  This is a coil that is designed to fit over a 16mm operator on a solenoid valve. It is the part that lifts the armature inside the operator tube of the solenoid valve when power is applied. They are essential to every solenoid valve.

• How does a 16mm Solenoid Valve Coil work?

  The coil is essentially a number of copper windings formed around the operator. When power is applied to the coil it creates an electro-magnetic field which lifts the armature inside the operator tube of the solenoid valve. This will then allow the valve to operate. Power is applied to the coil through the DIN plug which is where your electrical cable is terminated. This has three terminals (+ve, -ve & earth or N, L & earth) which then fits over the male terminals on the coil.

• Does the coil include a DIN plug?

  Yes, we include DIN plugs with all of our coils and it is included in the price. More than likely if this is used as a replacement coil you will have an existing DIN plug wired in place. You can leave that wired in if it is working properly and keep the DIN plug that comes with our coil as a spare.

• How do I know that this coil will suit my existing solenoid valve?

  There are three critical components to sizing a solenoid coil to an existing valve. The first is the power of the coil. The power of the coil can be more than your valve requires but not less. The second is the operator diameter, the hole in the middle of the coil must suit the size of your operator so it can slide over the operator tube. It is best to have a snug fit so when the magnetic field is created it is transmitted straight onto your operator tube. This will also stop the coil from overheating. The third is the height of the coil. This must match the height of your operator. This is the distance that the magnetic field is created over and is crucial to the successful operation of your solenoid valve.

• How long will my 16mm Solenoid Coil last?

  Like any coil, this depends upon the usage case, duty cycle and external environment of the valve. If your valve is cycling every second, 24 hours a day, then its life will be shorter than one which is used once a day.  Our coils are 100% duty rated which means they can operate continuously as long as the heat generated can be dissipated.  The electrical supply to your coil can also determine its life cycle as over voltage and or voltage spikes can shorten it, the same as any electrical equipment.  Also, have the DIN plug cable gland facing down to avoid moisture entering and damaging the coil and DIN plug.

• What are typical uses of a 16mm Solenoid Coil ?

  These are used mostly in 2 way normally closed or normally open solenoid valves.

• How do I wire and install my 16mm Solenoid Coil?

  The good news is that our coils and DIN plugs are not polarity conscious. This means that you can have DC positive and negative to either of the two terminals or Neutral and Live if using AC power. It is essential that power is never connected to the earth terminal. The earth terminal can only be for earth and is the large flat terminal on the coil. Also double check the supply voltage is the same as what is specified on the coil before power is applied as this will potentially burn your coil if the voltage is higher than specified.

• Why do we measure DC in Watts and AC in Volt Amps for solenoid coils?

  Watts is the real power which is what the solenoid coil is using. This is straightforward in DC as it is calculated as Voltage x Current. However in AC there can be a phase difference where the voltage and current waveforms can be out of sync from either capacitive or inductive loads (solenoid coils are primarily inductive loads). This means that not all current flowing contributes to the solenoid coil. Therefore we use Volt Amperes which is the total load on the power source (whereas Watts would just be the power used by the coil).
