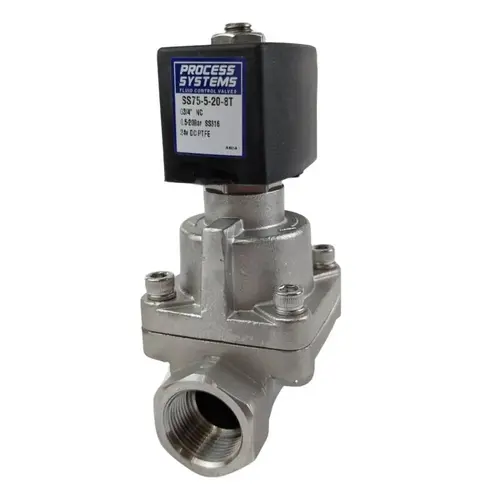

316 Stainless Steel High Temperature Normally Closed Solenoid Valve

From $440.00

Inc GST
In Stock
Make an Enquiry

A high flow / high pressure (up to 20 BAR) normally closed (power to open) piston type valve with a 316 Stainless Steel body and Teflon seats. Mainly used as a steam valve as it will do up to 180 degrees Celsius (steam at 10 BAR) with either a flying lead or DIN plug coil. Will handle fluids up to 50 centistoke viscosity. Typical Applications include high pressure irrigation, laundry equipment, hospitals, steam curing beds, boilers & general industry. Please note this is a hard PTFE seat so at low pressures/temperatures it may not give a bubble tight seal. Threads conform to ISO 7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Pressure (BAR) Media Temperature Coil Specifications
SS75-4-15-*T 1/2 15 4.5 0.5 to 20 -10°C to 180°C SC-C2
DIN Plug
24 Watts
24 Volt Amps
100% ED
Class H Insulation
IP65
SS75-5-20-*T 3/4 20 9.3 0.5 to 20 -10°C to 180°C
SS75-6-25-*T 1 25 13.2 0.5 to 20 -10°C to 180°C
SS75-7-35-*T 1 ¼ 35 26 0.5 to 20 -10°C to 180°C
SS75-8-35-*T 1 ½ 35 26 0.5 to 20 -10°C to 180°C
SS75-9-50-*T 2 50 48 0.5 to 20 -10°C to 180°C
SS75-4-15-*TF 1/2 15 4.5 0.5 to 20 -10°C to 180°C SC-H2
Flying Leads
25 watts
33 Volt Amps
100% ED
Class H Insulation
IP54
SS75-5-20-*TF 3/4 20 9.3 0.5 to 20 -10°C to 180°C
SS75-6-25-*TF 1 25 13.2 0.5 to 20 -10°C to 180°C
SS75-7-35-*TF 1 ¼ 35 26 0.5 to 20 -10°C to 180°C
SS75-8-35-*TF 1 ½ 35 26 0.5 to 20 -10°C to 180°C
SS75-9-50-*TF 2 50 48 0.5 to 20 -10°C to 180°C


*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vACPlease note this valve will only handle steam to 10 BAR.

For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

Stainless Steel Normally Closed Differential High Temperature Solenoid Valve

Model A B C D E F G (BSP) H Weight Kg
SS75-3-15-*T 75 52 129 52 45 41 3/8 14.5 1.65
SS75-4-15-*T 75 52 129 52 45 41 1/2 14.5 1.65
SS75-5-20-*T 85 60 141 52 45 41 3/4 18 2.13
SS75-6-25-*T 100 70 148 52 45 41 1 23 2.35
SS75-7-35-*T 120 90 168 52 45 41 1 1/4 33 3.85
SS75-8-35-*T 120 90 168 52 45 41 1 1/2 33 3.30
SS75-9-50-*T 150 122 203 52 45 41 2 40.5 7.35

All dimensions in mm unless otherwise shown.

Stainless Steel Normally Closed Differential High Temperature Solenoid Valve

Item Article Material
1 Armature Stainless Steel 304
2 Plunger Stainless Steel 304
3 Coil Brass Wire
4 Plunger Seat Teflon
5 Spring Stainless Steel 304
6 Valve Body Stainless Steel 316
7 Piston Stainless Steel 304
8 Leak proof & Piston Ring Teflon



Size 1/2" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body 316 Stainless Steel
Seat PTFE
Pressure Range 0.5 to 20 BAR (10 BAR Steam)
Media Steam & High Pressure Air / Oil Media

Others Also Bought

SS75

316 Stainless Steel High Temperature Normally Closed Solenoid Valve

Features:

Size 1/2" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body 316 Stainless Steel
Seat PTFE
Pressure Range 0.5 to 20 BAR (10 BAR Steam)
Media Steam & High Pressure Air / Oil Media

Description:

A high flow / high pressure (up to 20 BAR) normally closed (power to open) piston type valve with a 316 Stainless Steel body and Teflon seats. Mainly used as a steam valve as it will do up to 180 degrees Celsius (steam at 10 BAR) with either a flying lead or DIN plug coil. Will handle fluids up to 50 centistoke viscosity. Typical Applications include high pressure irrigation, laundry equipment, hospitals, steam curing beds, boilers & general industry. Please note this is a hard PTFE seat so at low pressures/temperatures it may not give a bubble tight seal. Threads conform to ISO 7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Pressure (BAR) Media Temperature Coil Specifications
SS75-4-15-*T 1/2 15 4.5 0.5 to 20 -10°C to 180°C SC-C2
DIN Plug
24 Watts
24 Volt Amps
100% ED
Class H Insulation
IP65
SS75-5-20-*T 3/4 20 9.3 0.5 to 20 -10°C to 180°C
SS75-6-25-*T 1 25 13.2 0.5 to 20 -10°C to 180°C
SS75-7-35-*T 1 ¼ 35 26 0.5 to 20 -10°C to 180°C
SS75-8-35-*T 1 ½ 35 26 0.5 to 20 -10°C to 180°C
SS75-9-50-*T 2 50 48 0.5 to 20 -10°C to 180°C
SS75-4-15-*TF 1/2 15 4.5 0.5 to 20 -10°C to 180°C SC-H2
Flying Leads
25 watts
33 Volt Amps
100% ED
Class H Insulation
IP54
SS75-5-20-*TF 3/4 20 9.3 0.5 to 20 -10°C to 180°C
SS75-6-25-*TF 1 25 13.2 0.5 to 20 -10°C to 180°C
SS75-7-35-*TF 1 ¼ 35 26 0.5 to 20 -10°C to 180°C
SS75-8-35-*TF 1 ½ 35 26 0.5 to 20 -10°C to 180°C
SS75-9-50-*TF 2 50 48 0.5 to 20 -10°C to 180°C


*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vACPlease note this valve will only handle steam to 10 BAR.

For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

.

316 Stainless Steel High Temperature Normally Closed Solenoid Valve

SS75

Dimensions:

Stainless Steel Normally Closed Differential High Temperature Solenoid Valve

Model A B C D E F G (BSP) H Weight Kg
SS75-3-15-*T 75 52 129 52 45 41 3/8 14.5 1.65
SS75-4-15-*T 75 52 129 52 45 41 1/2 14.5 1.65
SS75-5-20-*T 85 60 141 52 45 41 3/4 18 2.13
SS75-6-25-*T 100 70 148 52 45 41 1 23 2.35
SS75-7-35-*T 120 90 168 52 45 41 1 1/4 33 3.85
SS75-8-35-*T 120 90 168 52 45 41 1 1/2 33 3.30
SS75-9-50-*T 150 122 203 52 45 41 2 40.5 7.35

All dimensions in mm unless otherwise shown.

.

316 Stainless Steel High Temperature Normally Closed Solenoid Valve

SS75

Construction:

Stainless Steel Normally Closed Differential High Temperature Solenoid Valve

Item Article Material
1 Armature Stainless Steel 304
2 Plunger Stainless Steel 304
3 Coil Brass Wire
4 Plunger Seat Teflon
5 Spring Stainless Steel 304
6 Valve Body Stainless Steel 316
7 Piston Stainless Steel 304
8 Leak proof & Piston Ring Teflon
