SKU: SPS

316 Stainless Steel Push Fit Straight Joiner

From $14.30

Inc GST
In Stock
Make an Enquiry

316 Stainless Steel Straight Joiner push fit fitting. Great for use in corrossive environments such as water treatment plants or other industires such as food & beverage. Tested and passed to US FDA Generally Recognized As Safe (GRAS) and US Cookware Manufacture Assosication (CMA) metal specifications for Stainless Steel.

Material 316L Stainless Steel Body, FKM O-ring
Pressure Range 0 to 20 BAR
Temperature Range -10℃ to 120℃

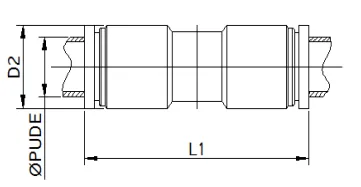

Stainless Steel Straight Joiner Push Fit Fitting

Model Tube L1 D2
SPS04 4 32 10
SPS06 6 34 12
SPS08 8 36 14
SPS10 10 38 16
SPS12 12 40 19

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 16mm
Function Straight Joiner Push Fit
Cert FDA Compliant
