SKU: SPL

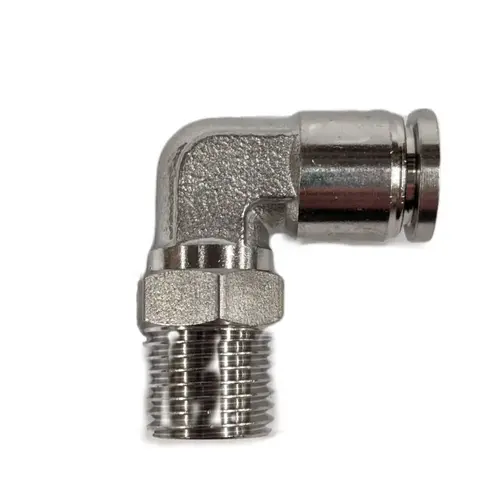

316 Stainless Steel Push Fit Swivel Elbow

From $17.60

Inc GST
In Stock
Make an Enquiry

316 Stainless Steel Tapered male BSP threaded swivel elbow push fit fitting. Great for use in corrossive environments such as water treatment plants or other industires such as food & beverage. Tested and passed to US FDA Generally Recognized As Safe (GRAS) and US Cookware Manufacture Assosication (CMA) metal specifications for Stainless Steel.

Material 316L Stainless Steel Body, FKM O-ring
Pressure Range 0 to 20 BAR
Temperature Range -10℃ to 120℃

Stainless Steel Male Swivel Elbow Push Fit FItting

Model Tube L1 L2 L3 D2 CH1 CH2
SPL04-M5 4 17 19 4 10.5 9.2 11
SPL04-01 4 17 23 8 10.5 9.2 11
SPL04-02 4 24 25 11 10.5 9.2 14
SPL06-M5 6 24 25 4 12.5 9.2 11
SPL06-01 6 24 25 8 12.5 9.2 11
SPL06-02 6 24 27 11 12.5 9.2 14
SPL06-03 6 24 28 11 12.5 9.2 17
SPL08-01 8 27 25 8 14.5 11.2 14
SPL08-02 8 27 27 11 14.5 11.2 14
SPL08-03 8 27 28 11 14.5 11.2 17
SPL10-02 10 30.5 38 11 17.5 13.2 17
SPL10-03 10 30.5 29 11 17.5 13.2 17
SPL10-04 10 30.5 31 14 17.5 13.2 22
SPL12-03 12 34 31.5 11 20.5 20.5 19
SPL12-04 12 34 33.5 14 20.5 20.5 22

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 16mm
Thread Size M5 to 3/4"
Function Male Swivel Elbow Push Fit
Cert FDA Compliant
