Features:
Size 1/4" BSP Only
Function 5 way 2 position solenoid/spring namur with manual override
Valve Operation Servo Assisted
Body Aluminium
Seat NBR
Pressure Range 1.5 to 8 BAR
Media Air

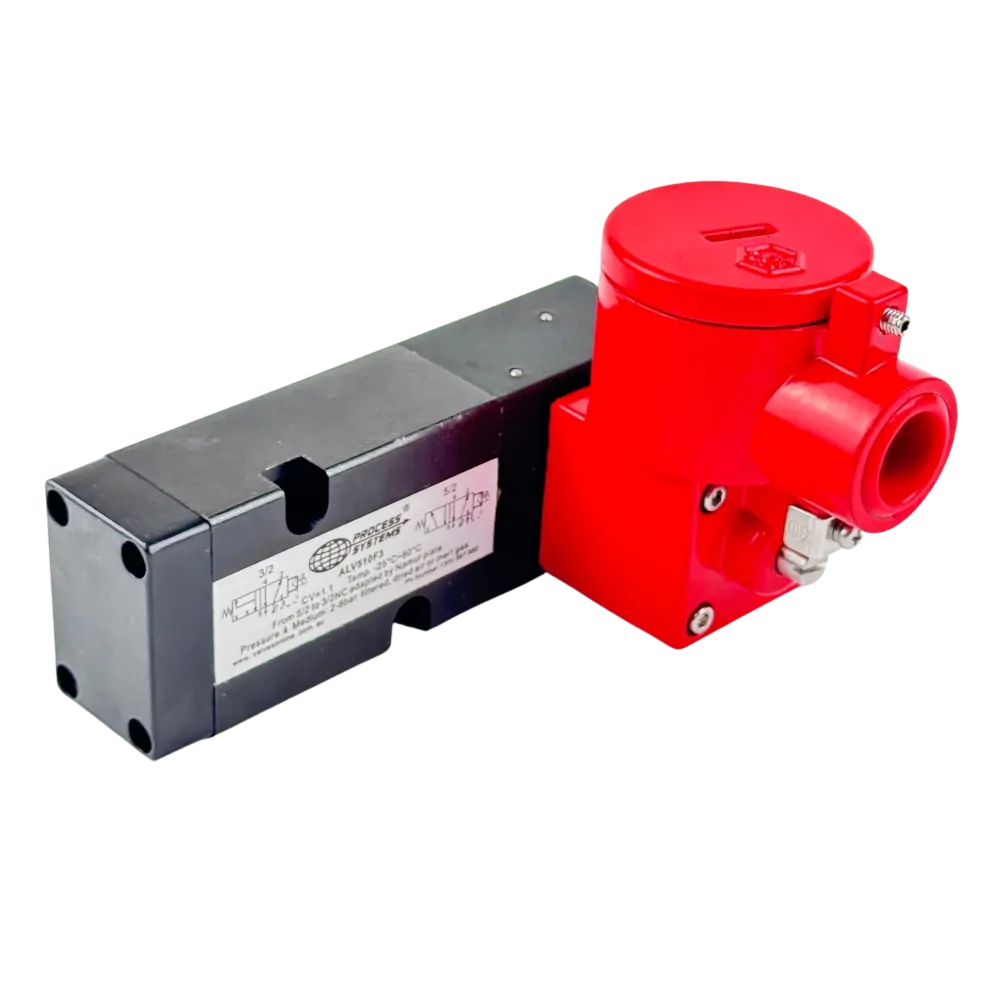

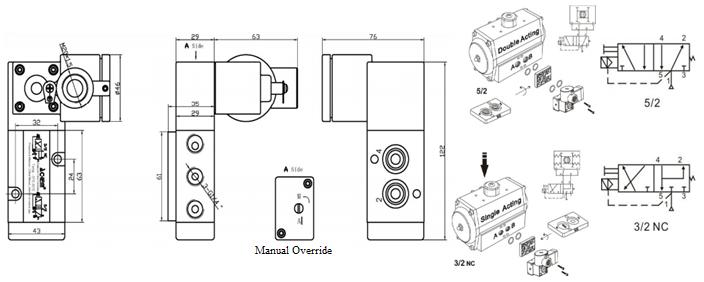

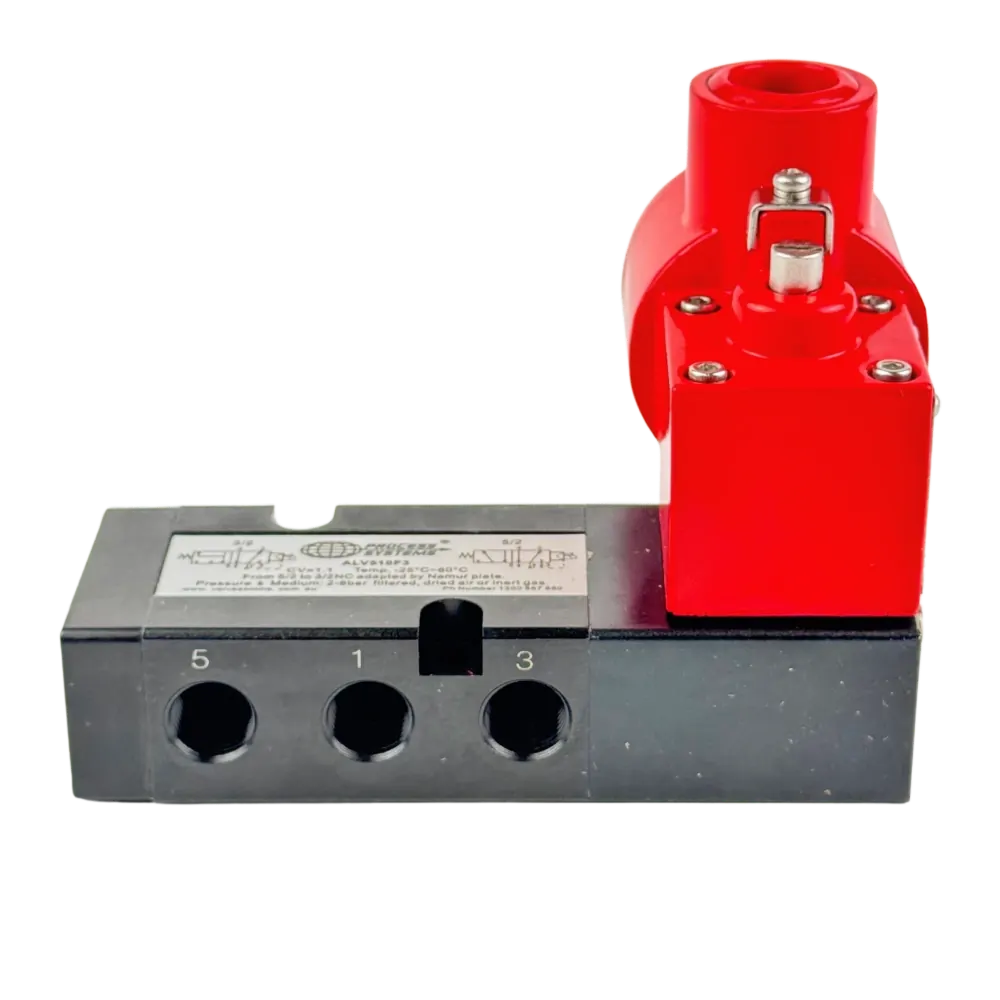

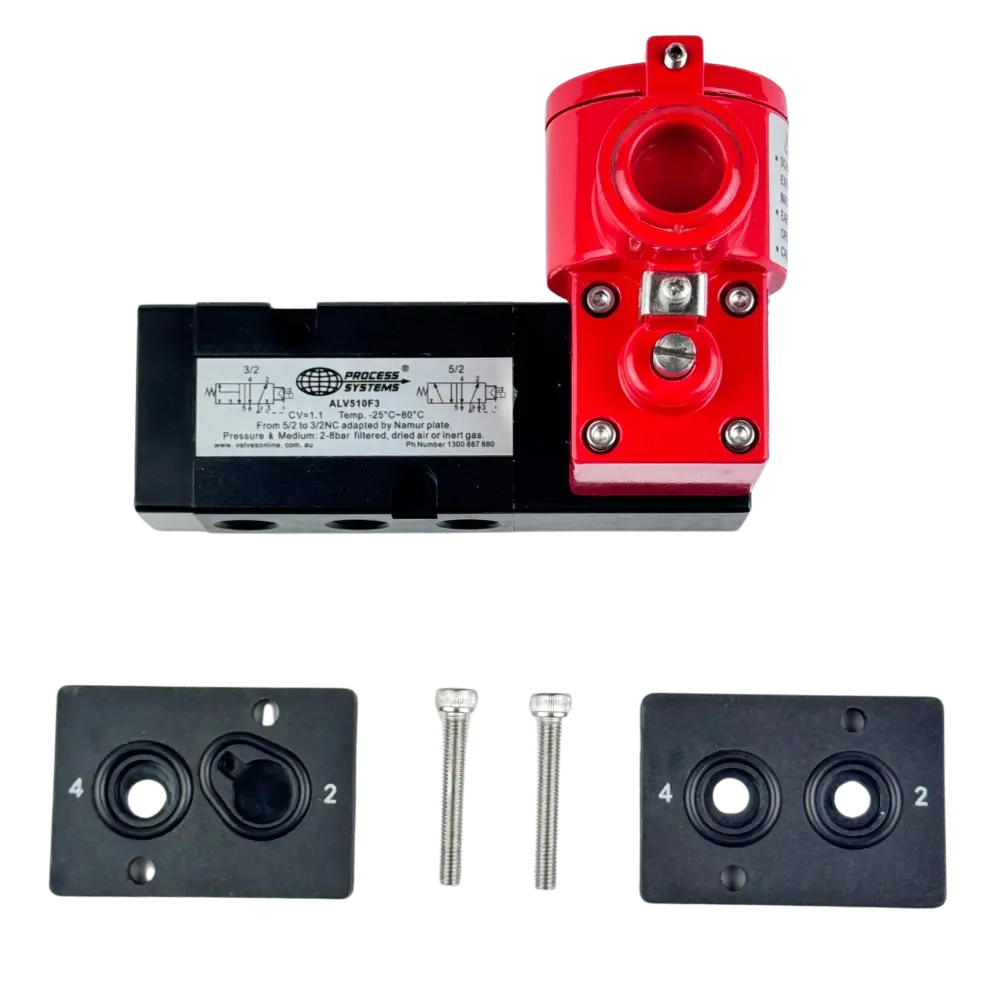

Our 5 way 2 position exd approved namur solenoid valve is suitable for hazardous areas where pneumatic actuators need a namur solenoid valve to operate. Can be adapted from 5/2 to 3/2 if needed however we recommend using the 5/2 configuration even for spring return actuators. Available in mono stable (solenoid/spring) and bi stable (solenoid/solenoid) configurations. Threads conform to ISO 7.1 Sealing Threads. IECEx Cert No. IECEx CQM 12.0022X (Ex d II C T6 Gb), NEPSI Cert No. GYB17.1935X (Ex d II C T6 Gb; Ex tD A21 IP6X T85°C).
Model | Voltage | Function | Port Size | Orifice | Cv | Media Temp | Media Pressure |
---|---|---|---|---|---|---|---|
ALV510F3-C5-1 | 240v AC | Solenoid/Spring | 1/4" | 6mm | 1.1 | -25°C to 80°C | 2 to 8 BAR |
ALV510F3-C5-2 | 110v AC | Solenoid/Spring | 1/4" | 6mm | 1.1 | -25°C to 80°C | 2 to 8 BAR |
ALV510F3-C5-8 | 24v DC | Solenoid/Spring | 1/4" | 6mm | 1.1 | -25°C to 80°C | 2 to 8 BAR |
