SKU: ALV510P2-C5

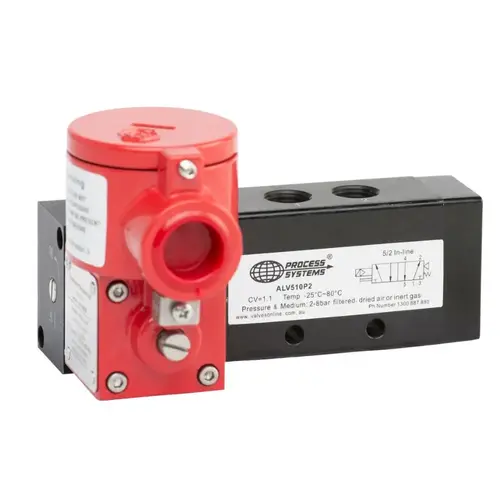

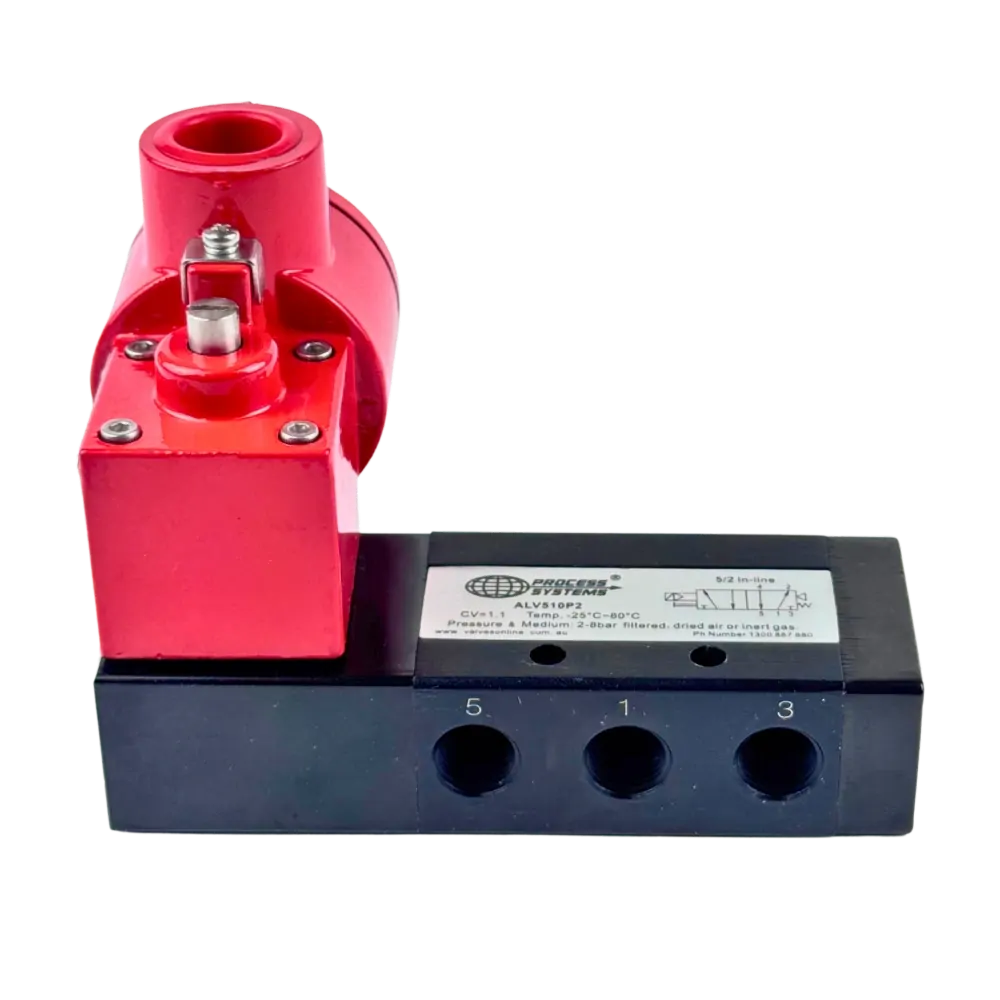

5 Way 2 position Exd Solenoid Spring

Aluminium 5/2 IECex approved Solenoid Valve

From $313.50

Inc GST
In Stock
Make an Enquiry

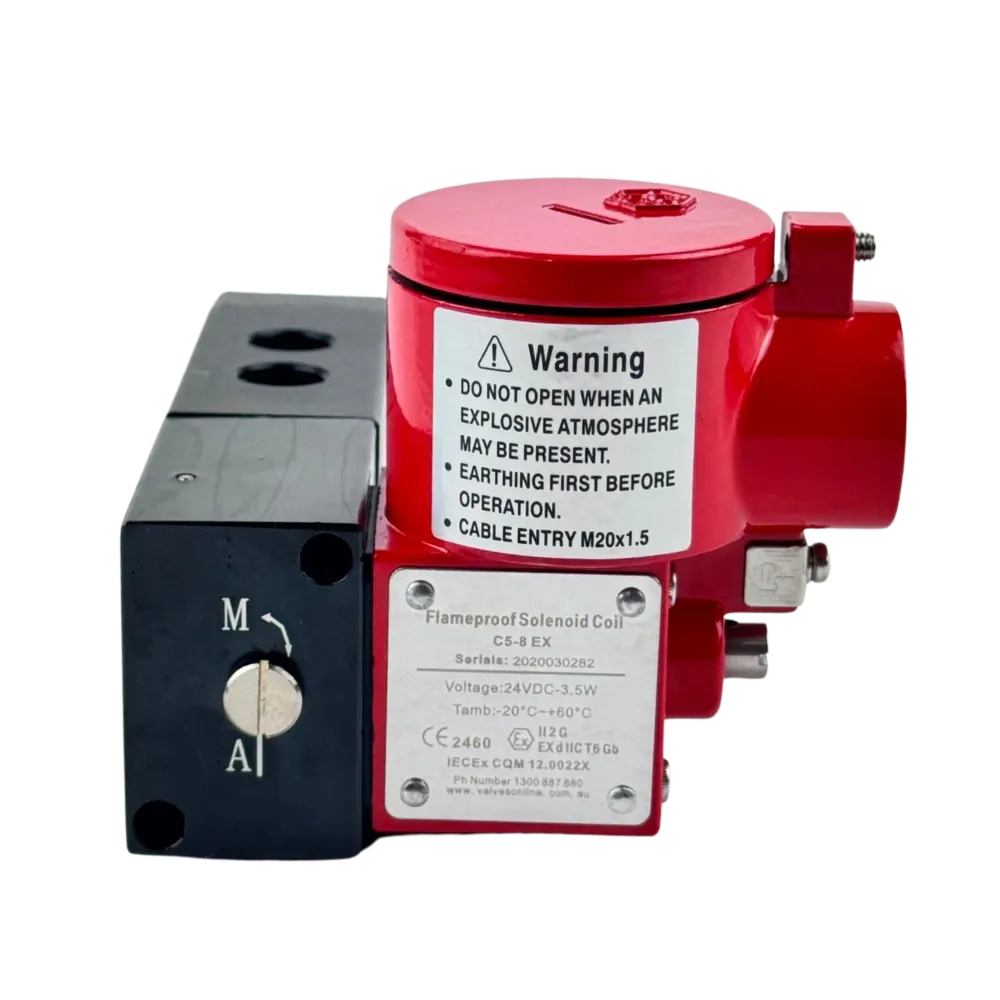

Our 5 way 2 position exd approved solenoid valve is suitable for hazardous areas where there is a need for a solenoid valve to operate.  Available in mono stable (solenoid/spring) and bi stable (solenoid/solenoid) configurations. Threads conform to ISO 7.1 Sealing Threads. IECEx Cert No. IECEx CQM 12.0022X (Ex d II C T6 Gb), NEPSI Cert No. GYB17.1935X (Ex d II C T6 Gb; Ex tD A21 IP6X T85°C).

Model Voltage Function Port Size Orifice Cv Media Temp Media Pressure
ALV510P2-C5-1 240v AC Solenoid/Spring 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR
ALV510P2-C5-2 110v AC Solenoid/Spring 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR
ALV510P2-C5-8 24v DC Solenoid/Spring 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR



Exd 5/2 Solenoid Valve Wiring Diagrame

Size 1/4" BSP
Function 5 way 2 position solenoid/spring with manual override
Valve Operation Servo Assisted
Body Aluminium
Seat NBR
Pressure Range 1.5 to 8 BAR
Media Air
