SKU: LEL52

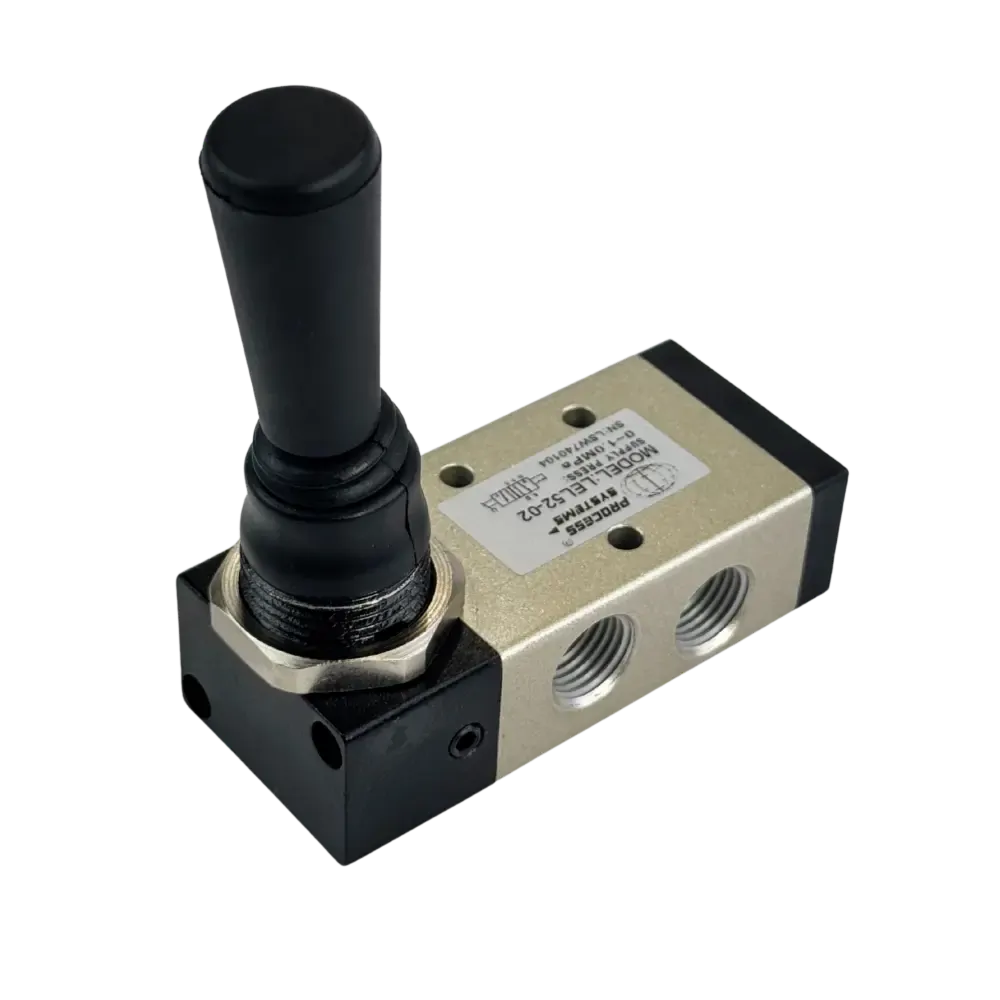

5 Way 2 position Lever Lever Valve

From $60.50

Inc GST
In Stock
Make an Enquiry

The LEL52 series are a five way two position joystick control valve. Ideal for controlling cylinders or pneumatic actuators simply push the lever one way or the other (note there is no spring return in the LEL52 model). Simple to use, install and maintain.

Specification LEL52-02 LEL52-03 LEL52-04
Port Size (BSPP) 1/4" 3/8" 1/2"
Exhaust Port Size 1/8” 1/4" 1/2"
Function 5/2 Lever Lever
Pressure Range 0 to 10 BAR (147 psi)
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Joystick Thermoplastic
Lubrication Not Required
Applicable Medium Air

Size 1/4" BSP
Function 5 way 2 position raised button
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

We Also Recommend

Others Also Bought

LEL52

5 Way 2 position Lever Lever Valve

Features:

Size 1/4" BSP
Function 5 way 2 position raised button
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

Description:

The LEL52 series are a five way two position joystick control valve. Ideal for controlling cylinders or pneumatic actuators simply push the lever one way or the other (note there is no spring return in the LEL52 model). Simple to use, install and maintain.

Specification LEL52-02 LEL52-03 LEL52-04
Port Size (BSPP) 1/4" 3/8" 1/2"
Exhaust Port Size 1/8” 1/4" 1/2"
Function 5/2 Lever Lever
Pressure Range 0 to 10 BAR (147 psi)
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Joystick Thermoplastic
Lubrication Not Required
Applicable Medium Air
.

5 Way 2 position Lever Lever Valve

LEL52

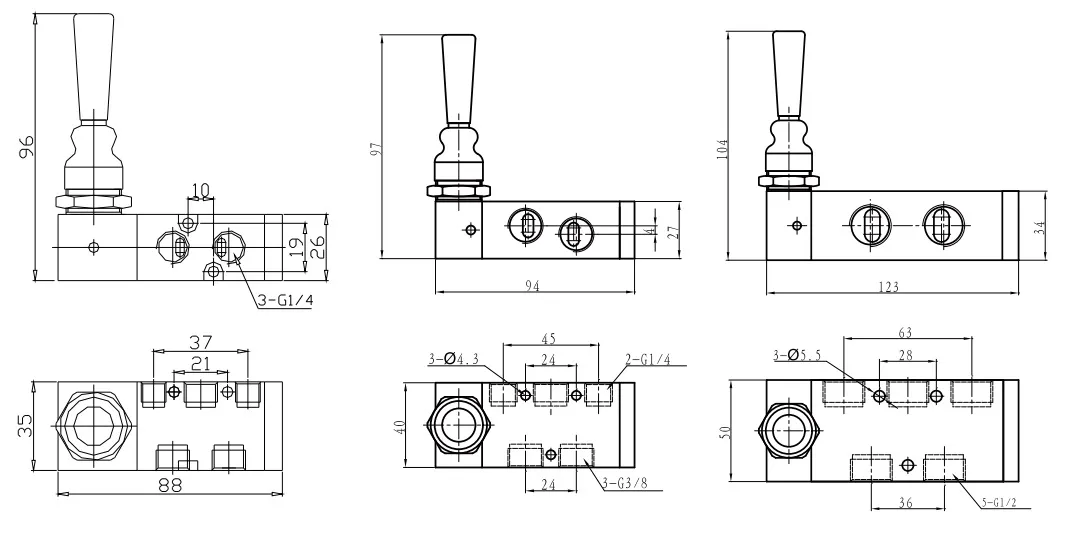

Dimensions:
