SKU: SCFW3

ANSI 300 Flanged WCB Swing Check Valve

From $374.00

Inc GST
In Stock
Make an Enquiry

Carbon Steel Swing Check Valve. Allows for a large flow rate and little head loss/pressure drop across the valve due to the full bore design and recess for the disc to sit in when fully open. Designed to API 594, RF Flanges according to ASME B16.5, face to face according to ASME B16.10, testing and inspection according to API598.

Model DN Pressure Range (at Ambient Temp) Media Temp Weight (kg)

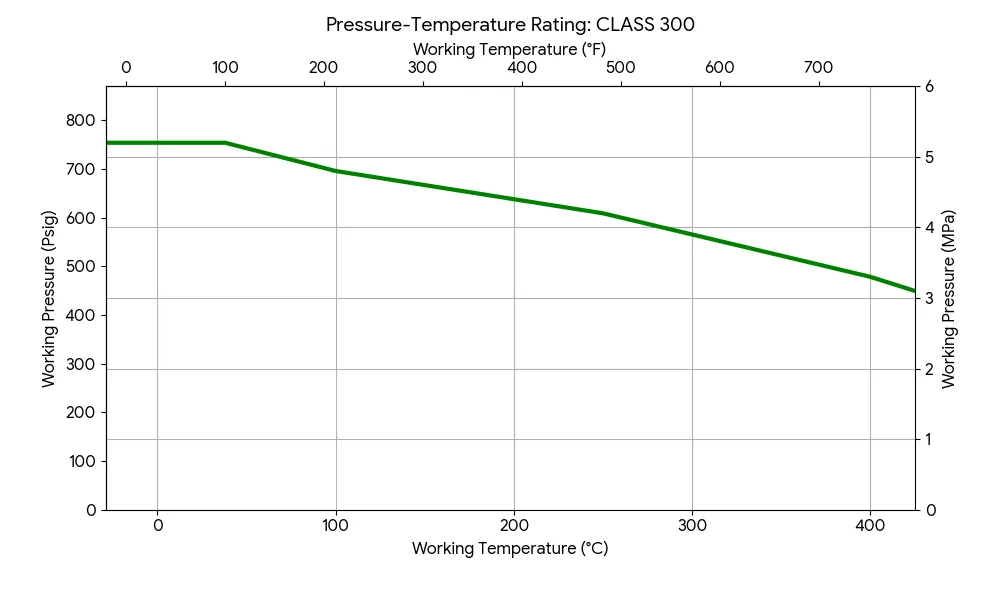

SCFW3-050 50 0 to 50 Bar 315°C at 38 Bar 16
SCFW3-065 65 0 to 50 Bar 315°C at 38 Bar 23
SCFW3-080 80 0 to 50 Bar 315°C at 38 Bar 29
SCFW3-100 100 0 to 50 Bar 315°C at 38 Bar 46
SCFW3-150 150 0 to 50 Bar 315°C at 38 Bar 82
SCFW3-200 200 0 to 50 Bar 315°C at 38 Bar 136
SCFW3-250 250 0 to 50 Bar 315°C at 38 Bar 204
SCFW3-300 300 0 to 50 Bar 315°C at 38 Bar 302

Model NPS L D D1 D2 b f z-⌀d
SCFW3-050 2" 267 165 127 92.1 20.7 2 8-19
SCFW3-065 2-1/2" 292 190 149.2 104.8 23.9 2 8-22
SCFW3-080 3" 318 210 168.3 127 27 2 8-22
SCFW3-100 4" 356 255 200 157.2 30.2 2 8-22
SCFW3-150 6" 445 320 269.9 215.9 35 2 12-22
SCFW3-200 8" 533 380 330.2 269.9 39.7 2 12-26
SCFW3-250 10" 622 445 387.4 323.8 46.1 2 16-29
SCFW3-300 12" 711 520 450.8 381 49.3 2 16-32

All dimensions in mm unless specified

No Part Name Material
1 Body ASTM A216-WCB
2 Seat ASTM A105 deposited 13Cr
3 Disc ASTM A216-WCB deposited 13Cr
4 Hinge ASTM A216-WCB
5 Hinge Pin ASTM A276-420
6 Support ASTM A216-WCB
7 Gasket Flexible Graphite/304
8 Bonnet ASTM A216-WCB
9 Bonnet Bolt ASTM A193 Gr.B7
10 Bonnet Bolt Nut ASTM A194 Gr.2H

Size 50mm to 300mm
Flange ANSI 300
Body Carbon Steel (WCB)
Seat Metal
Pressure 50 Bar @ ambient

Others Also Bought

SCFW3

ANSI 300 Flanged Cast Steel Swing Check Valve

Features:

Size 50mm to 300mm
Flange ANSI 300
Body Carbon Steel (WCB)
Seat Metal
Pressure 50 Bar @ ambient

Description:

Carbon Steel Swing Check Valve. Allows for a large flow rate and little head loss/pressure drop across the valve due to the full bore design and recess for the disc to sit in when fully open. Designed to API 594, RF Flanges according to ASME B16.5, face to face according to ASME B16.10, testing and inspection according to API598.

Model DN Pressure Range (at Ambient Temp) Media Temp Weight (kg)
SCFW3-050 50 0 to 50 Bar 315°C at 38 Bar 16
SCFW3-065 65 0 to 50 Bar 315°C at 38 Bar 23
SCFW3-080 80 0 to 50 Bar 315°C at 38 Bar 29
SCFW3-100 100 0 to 50 Bar 315°C at 38 Bar 46
SCFW3-150 150 0 to 50 Bar 315°C at 38 Bar 82
SCFW3-200 200 0 to 50 Bar 315°C at 38 Bar 136
SCFW3-250 250 0 to 50 Bar 315°C at 38 Bar 204
SCFW3-300 300 0 to 50 Bar 315°C at 38 Bar 302
.

ANSI 300 Flanged Cast Steel Swing Check Valve

SCFW3

Dimensions:

Model NPS L D D1 D2 b f z-⌀d
SCFW3-050 2" 267 165 127 92.1 20.7 2 8-19
SCFW3-065 2-1/2" 292 190 149.2 104.8 23.9 2 8-22
SCFW3-080 3" 318 210 168.3 127 27 2 8-22
SCFW3-100 4" 356 255 200 157.2 30.2 2 8-22
SCFW3-150 6" 445 320 269.9 215.9 35 2 12-22
SCFW3-200 8" 533 380 330.2 269.9 39.7 2 12-26
SCFW3-250 10" 622 445 387.4 323.8 46.1 2 16-29
SCFW3-300 12" 711 520 450.8 381 49.3 2 16-32

All dimensions in mm unless specified

.

ANSI 300 Flanged Cast Steel Swing Check Valve

SCFW3

Construction:

No Part Name Material
1 Body ASTM A216-WCB
2 Seat ASTM A105 deposited 13Cr
3 Disc ASTM A216-WCB deposited 13Cr
4 Hinge ASTM A216-WCB
5 Hinge Pin ASTM A276-420
6 Support ASTM A216-WCB
7 Gasket Flexible Graphite/304
8 Bonnet ASTM A216-WCB
9 Bonnet Bolt ASTM A193 Gr.B7
10 Bonnet Bolt Nut ASTM A194 Gr.2H
