SKU: RK-BLSFA-ST

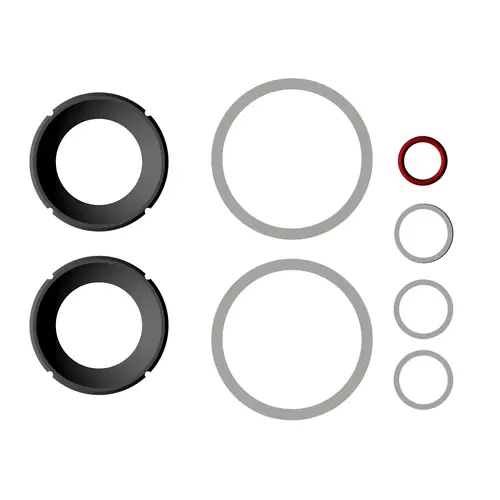

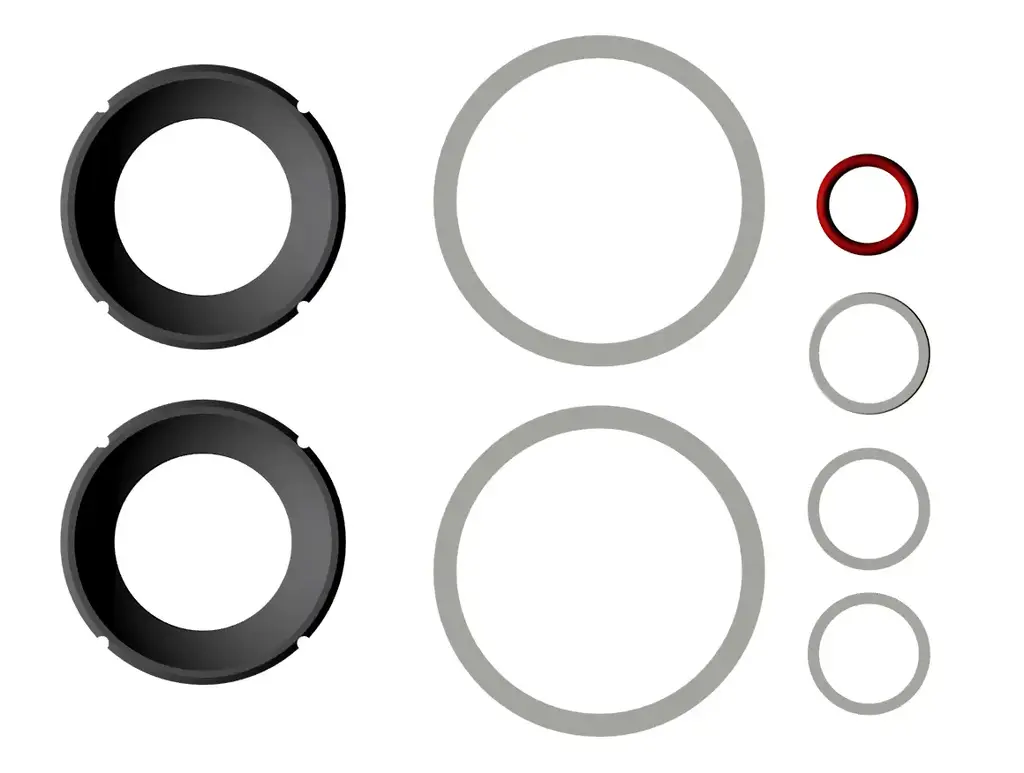

BLSFA Repair Kit 50% Stainless Steel/PTFE for ANSI 150 & ANSI 300 ball valves

From $22.00

Inc GST
In Stock
Make an Enquiry

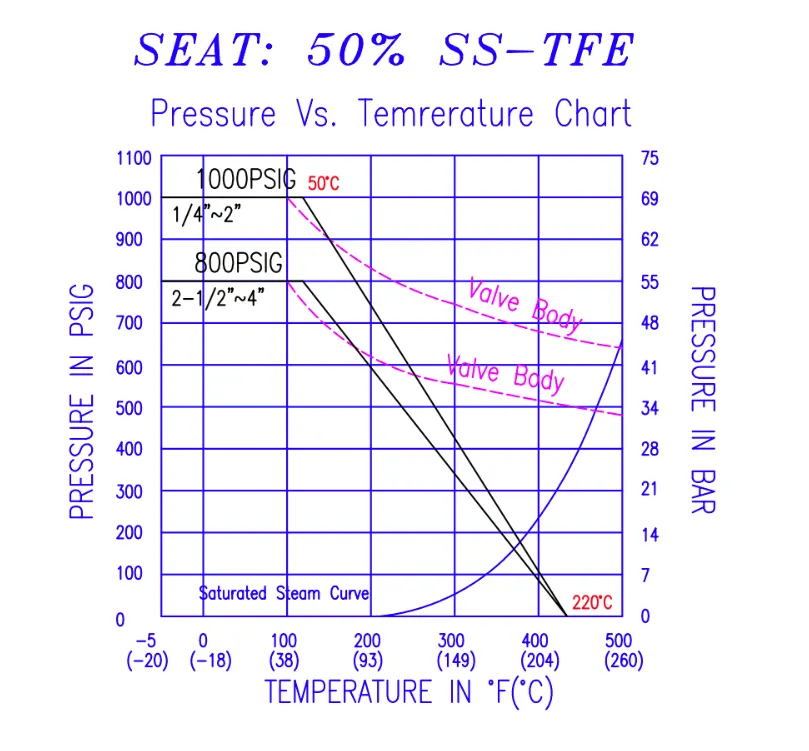

50% stainless and Teflon (PTFE) filled seats for higher pressure and temperature applications. Suits 2 way 2 piece 316 Flanged Stainless Steel Ball Valves. Great for V port ball valves where the seat is exposed to the media for longer periods. The below is pressure rating for the seats only, not the valve body (eg. if fitting to ANSI 150 pound ball valve, the rating of the ball valve applies not the seat). Please note that the 50/50 seat increases the torque of the ball valve as the table below shows. These are no load torques (valve without pressure), we recommend at least a 30% safety margin on top of these values when sizing actuators to suit.

Size Torque @ zero Pressure (Nm) Torque @ full Pressure (Nm) Torque increase vs standard seats
15mm 7 10 40%
20mm 11 16 38%
25mm 13 18 25%
32mm 18 29 29%
40mm 24 35 33%
50mm 33 50 32%
65mm 63 92 31%
80mm 98 148 31%
100mm 142 215 29%
125mm 250 360 25%
150mm 360 542 20%
200mm 500 650 25%

50% Stainless Steel Filled Seats for Flanged Ball Valves

Item Description Material Qty
1 Ball Seat 50% SS 50% PTFE 2
2 Body Gasket PTFE 2
3 Stem Packing PTFE 1 Set
4 O-Ring Viton 1

Size 15mm to 100mm
To Suit 316 Stainless Steel 2 piece Flanged Ball Valves
Pressure 63 BAR @ Ambient
Temperature -20°C to 220°C

Others Also Bought

RK-BLSFA-ST

BLSFA Repair Kit 50% Stainless Steel/PTFE for ANSI 150 & ANSI 300 ball valves

Features:

Size 15mm to 100mm
To Suit 316 Stainless Steel 2 piece Flanged Ball Valves
Pressure 63 BAR @ Ambient
Temperature -20°C to 220°C

Description:

50% stainless and Teflon (PTFE) filled seats for higher pressure and temperature applications. Suits 2 way 2 piece 316 Flanged Stainless Steel Ball Valves. Great for V port ball valves where the seat is exposed to the media for longer periods. The below is pressure rating for the seats only, not the valve body (eg. if fitting to ANSI 150 pound ball valve, the rating of the ball valve applies not the seat). Please note that the 50/50 seat increases the torque of the ball valve as the table below shows. These are no load torques (valve without pressure), we recommend at least a 30% safety margin on top of these values when sizing actuators to suit.

Size Torque @ zero Pressure (Nm) Torque @ full Pressure (Nm) Torque increase vs standard seats
15mm 7 10 40%
20mm 11 16 38%
25mm 13 18 25%
32mm 18 29 29%
40mm 24 35 33%
50mm 33 50 32%
65mm 63 92 31%
80mm 98 148 31%
100mm 142 215 29%
125mm 250 360 25%
150mm 360 542 20%
200mm 500 650 25%

50% Stainless Steel Filled Seats for Flanged Ball Valves

.

BLSFA Repair Kit 50% Stainless Steel/PTFE for ANSI 150 & ANSI 300 ball valves

RK-BLSFA-ST

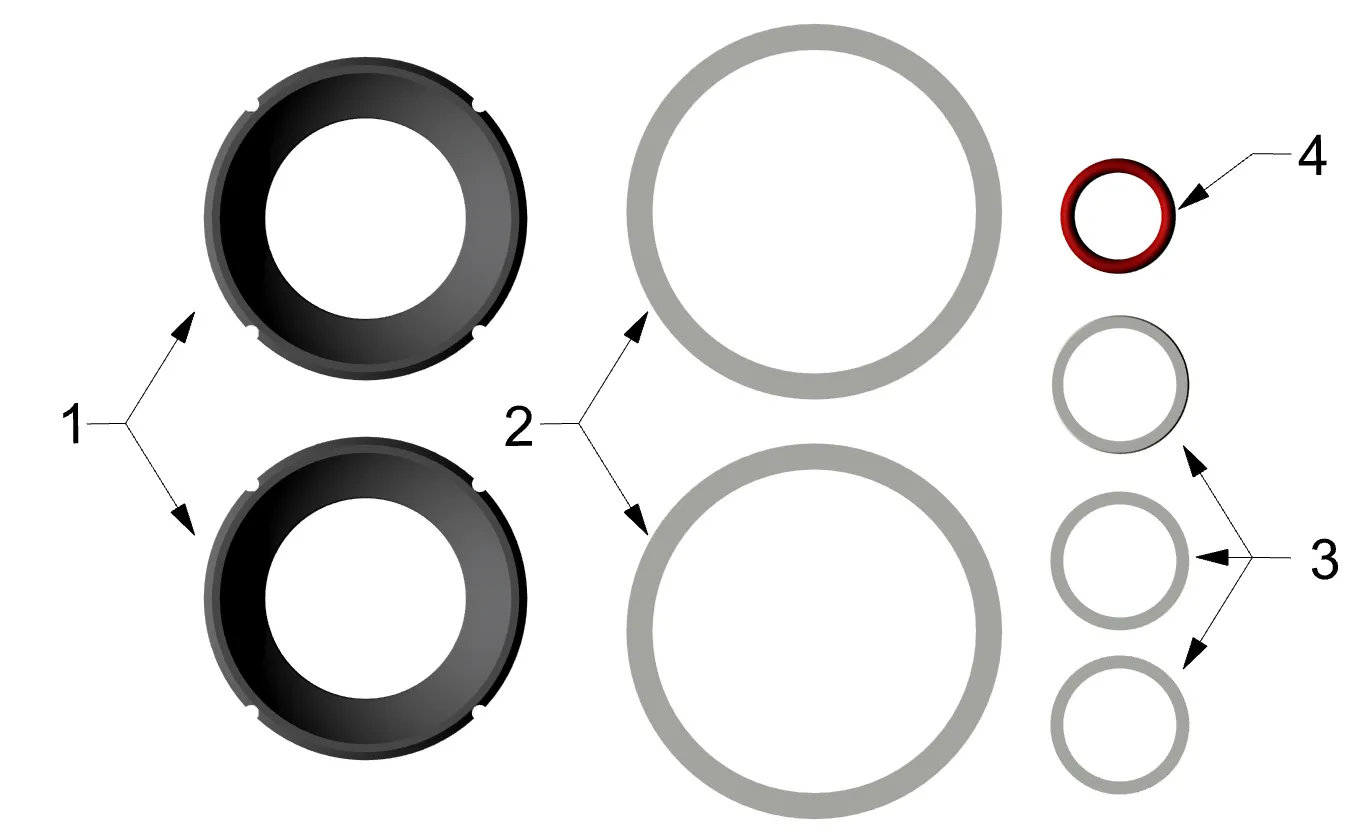

Construction:

Item Description Material Qty
1 Ball Seat 50% SS 50% PTFE 2
2 Body Gasket PTFE 2
3 Stem Packing PTFE 1 Set
4 O-Ring Viton 1
