Features:
Size 1/2" to 2" BSP
Function Normally Closed (power to open) with Manual Override
Valve Operation Servo Assisted
Body Brass
Seat NBR
Pressure Range 0.3 to 16 BAR
Media Non aggressive media

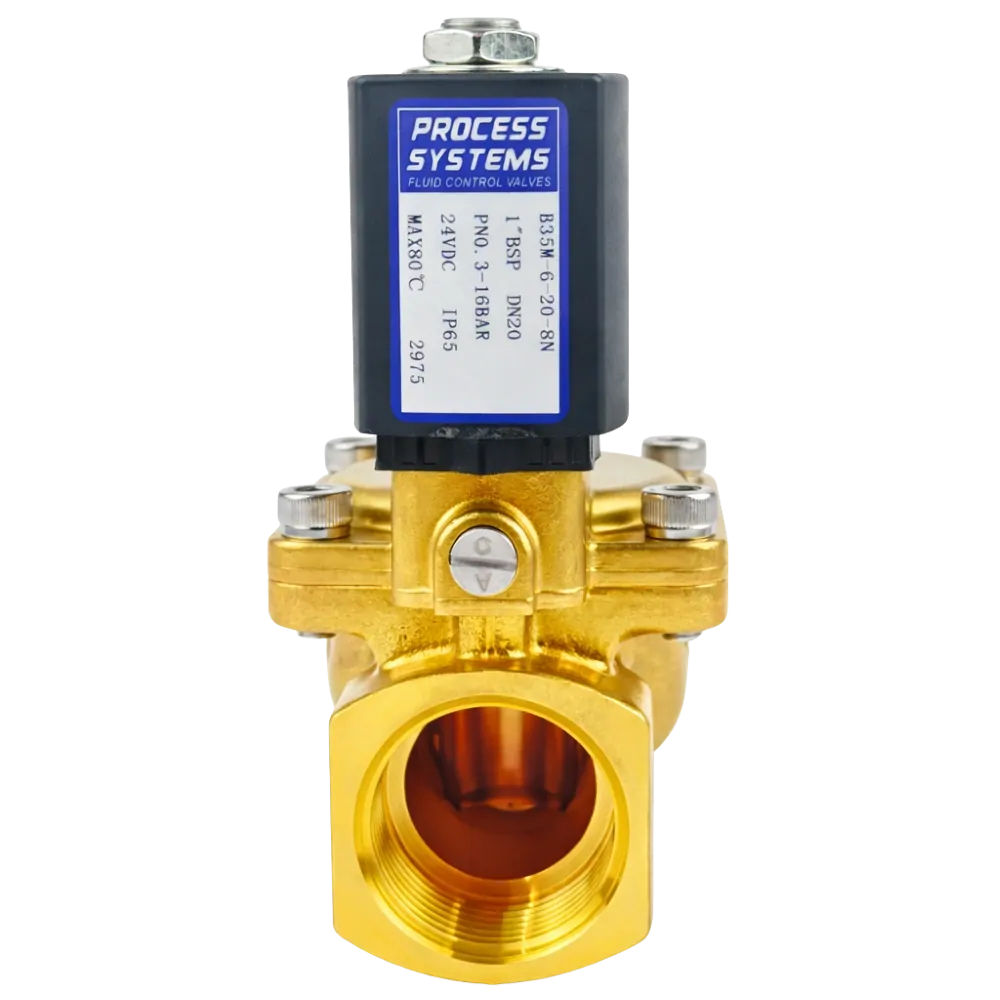

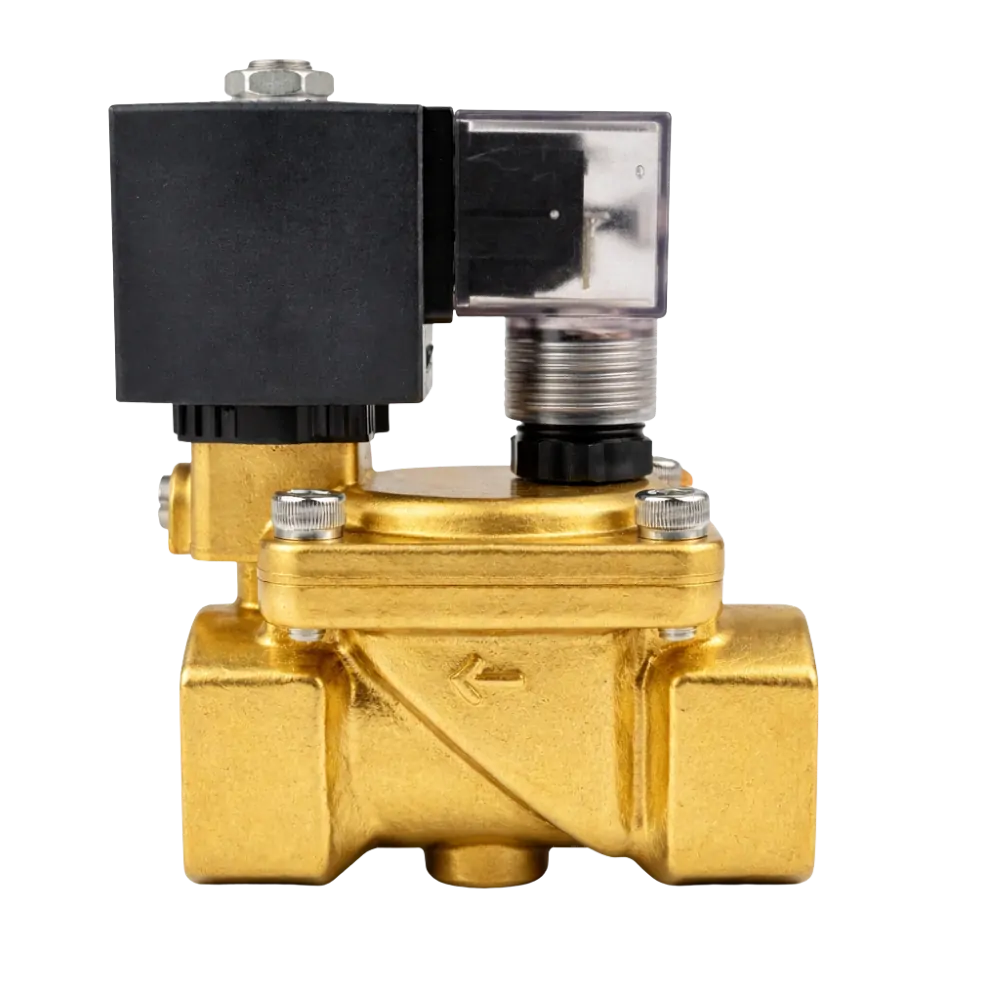

General purpose differential solenoid valve for air and water (non aggressive media up to 40CST viscosity). Designed with a tapered diaphragm (slow close) making it great for mains water applications or downstream of a pump/compressor. Normally closed (energise to open) and available in all voltages. Comes with coil, DIN plug (IP65 protection) and a manual override function. Threads conform to ISO7.1 sealing threads.
*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC
For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.
Model | G (BSP) | L (mm) | A (mm) | B (mm) | C (mm) | J (mm) |
---|---|---|---|---|---|---|
B35-4-14-*NM | 1/2" | 64 | 97 | 111 | 40 | 26 |
B35-5-20-*NM | 3/4" | 82 | 106.5 | 127 | 60 | 41 |
B35-6-20-*NM | 1” | 82 | 106.5 | 127 | 60 | 41 |
B35-7-40-*NM | 1-1/4” | 132 | 119 | 151 | 96 | 56 |
B35-8-40-*NM | 1-1/2” | 132 | 119 | 151 | 96 | 56 |
B35-9-50-*NM | 2” | 160 | 133.5 | 173 | 112 | 70 |
