Features:
Size 1/8" to 1" BSP
Function Button Silencer
Body Brass

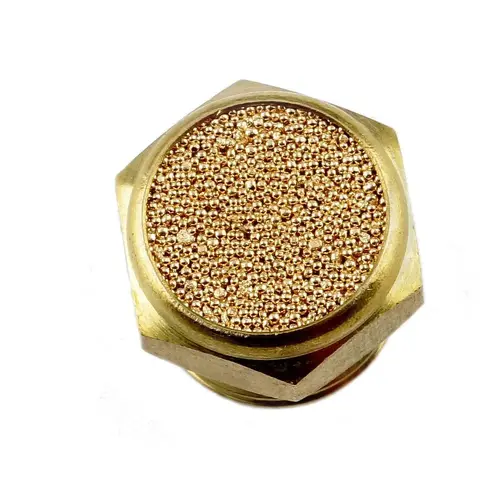

Sintered Brass mini or button air silencer. Typically used in exhaust ports or any port that is open to atmosphere to help keep out foreign particles. Low profile is ideal where space is an issue. Also exhaust air is diffused along the surface area of the silencer dampening the noise omitted. Available from 1/8" to 1" BSP.
| Item | R | B (mm) | H (mm) | A (mm) |
|---|---|---|---|---|
| BSM-01 | G1/8 | 12.3 | 12 | 6 |
| BSM-02 | G1/4 | 13.3 | 15 | 7.5 |
| BSM-03 | G3/8 | 14.4 | 18 | 8.7 |
| BSM-04 | G1/2 | 15.5 | 21 | 10 |
| BSM-05 | G3/4 | 15.5 | 27 | 11 |
| BSM-06 | G1 | 23 | 34 | 11.5 |
All dimensions in mm unless shown otherwise.
Size 1/8" to 1" BSP
Function Button Silencer
Body Brass
-
What is a Brass Mini Air Silencer?
Brass Mini Air Silencers are a low profile air silencer made of brass that are screwed into the exhaust ports of valves. They are designed to lower the noise of the air being expelled from the valve as well as keeping suspended solids out of the valve giving it a degree of protection.
-
How does a Brass Button Silencer work?
The outside of the brass fitting is threaded so it will go into the female exhaust port of the valve while the middle of the fitting holds a sintered brass surface which the air is dispersed through. This will slow the exhausted air down fractionally but it also lowers the noise of the exhausted air considerably. They also help stop any suspended solids from entering the valve through the exhaust port therefore prolonging the life of your valve.
-
How long will my Brass Mini Silencer last?
This depends upon the environment that the air silencer operates in. The units themselves see very little mechanical wear as it is only the air flowing in and out of the valve. The most common occurence is that they get blocked with dirt from the surrounding environment. They are meant to do this as they are protecting that dirt from going into the valve. They can usually be cleaned but may sometimes need to be replaced (it is a lot cheaper to replace these than your valve which is why they should be used).
-
How do I install a Brass Flat Air Silencer on Valves?
These silencers will be threaded into the female exhaust ports on your valve or pneumatic actuator. Thread tape or sealant can be used if the user would like however they are not needed as air will exhaust from this port so a bubble tight seal is not required.
-
What are typical uses of a Brass Mini Air Silencer?
The most common usage case would be on 5/2 valves such as namur solenoid valves or manually operated 5/2 valves. They are also commonly used on the exhaust ports of actuators where they are controlled by a 3/2 valve. Outside of this there are many other use cases such as exhausts of pressure relief valves, really anywhere air is exhausted there is a potential application. The low profile makes them suitable for areas where space may be restricted.
-
