Features:
Size 1/4" to 3/8" BSP
Function Normally Closed (power to open)
Valve Operation Direct Acting
Body Brass
Seat PTFE
Pressure Range 0.5 to 10 BAR
Media Steam

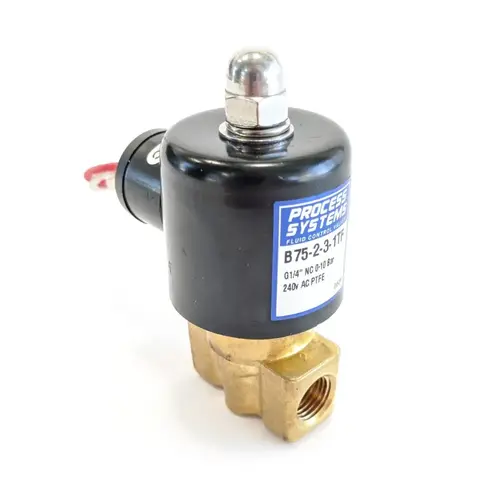

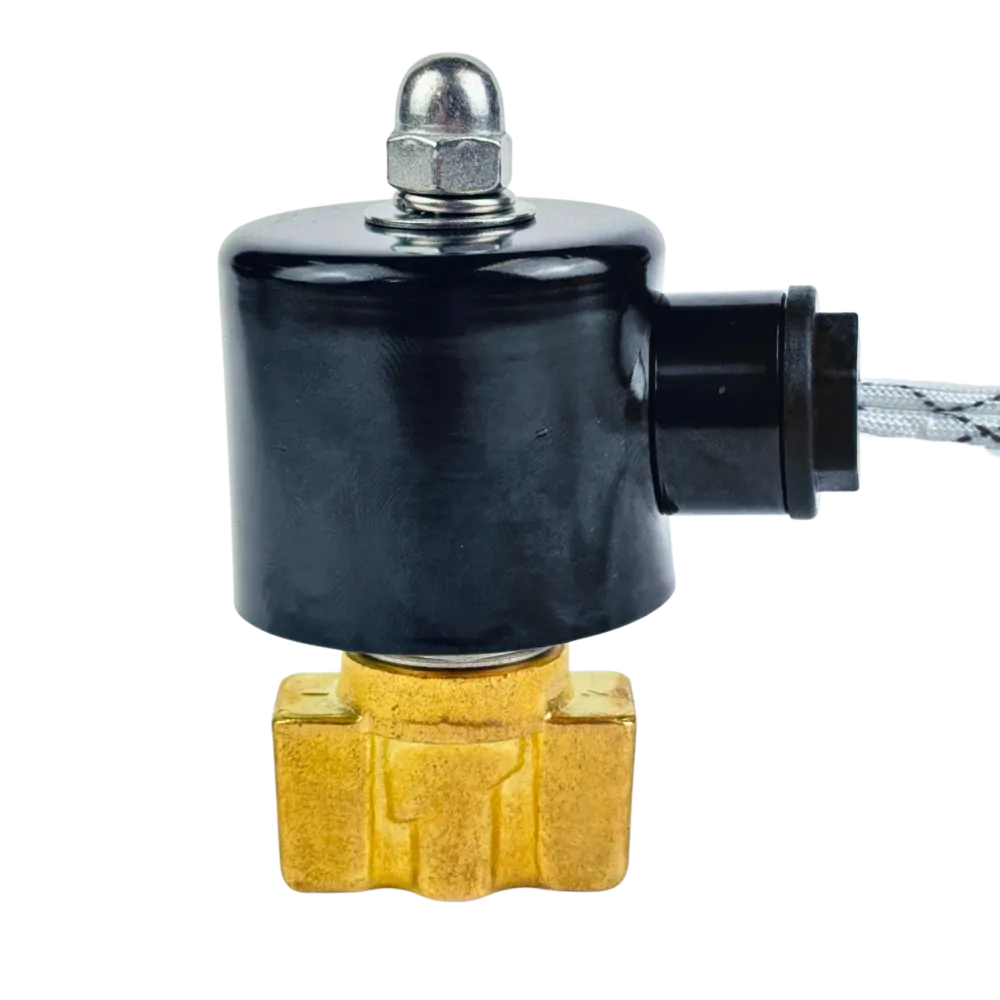

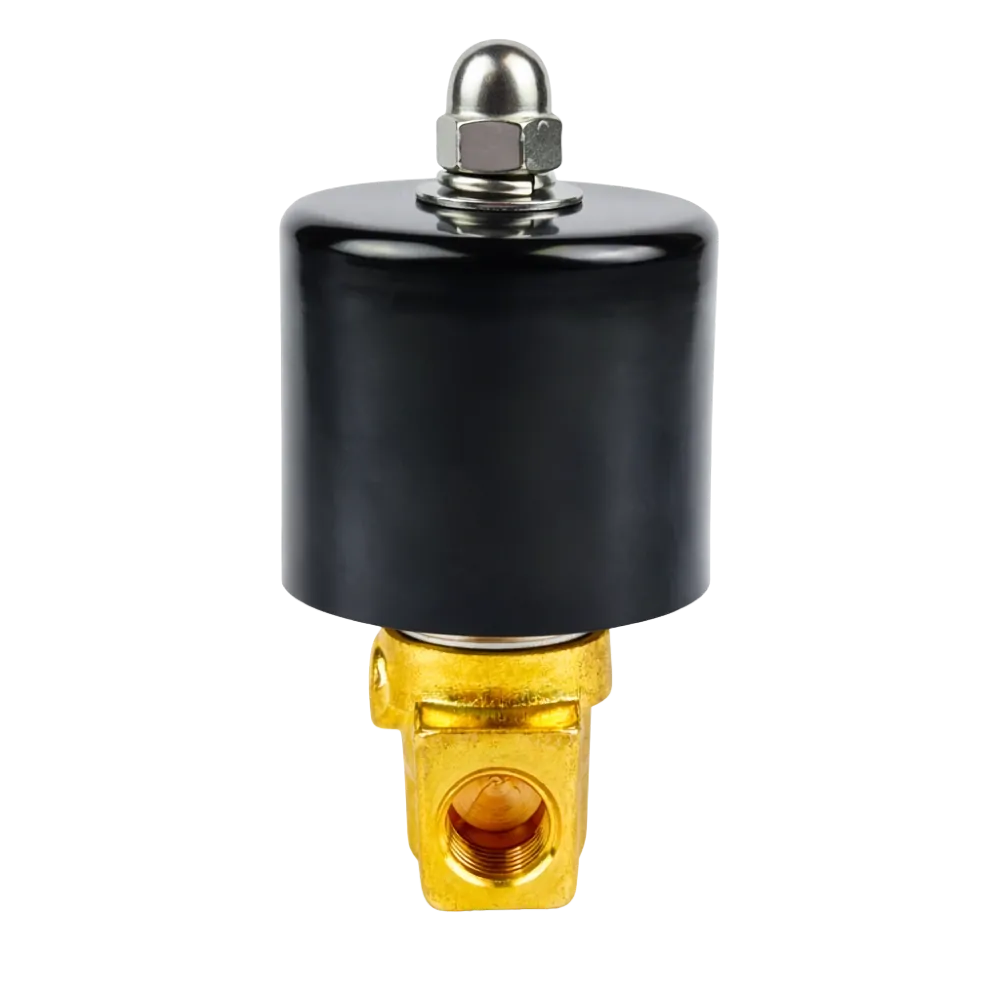

Direct Acting Brass Nomrally Closed Steam/High Temperature Solenoid Valve.
Model | Port Size BSP | Orifice ømm | CV | Pressure (BAR) | Media Temperature | Repair Kit | Coil Specification |
---|---|---|---|---|---|---|---|
B75-2-3-*TF | 1/4 | 3 | 0.26 | 0 to 10 | -10°C to 180°C | RK-B75D-2-T | SC-H1 9VA / 8W Class H Insulation 100%ED |
B75-2-5-*TF | 1/4 | 5 | 0.64 | 0 to 6 | -10°C to 180°C | RK-B75D-2-T | |
B75-3-4-*TF | 3/8 | 4 | 0.58 | 0 to 7 | -10°C to 180°C | RK-B75D-3-T | SC-H2 33VA / 25W Class H Insulation 100%ED |
*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC
For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves
.
