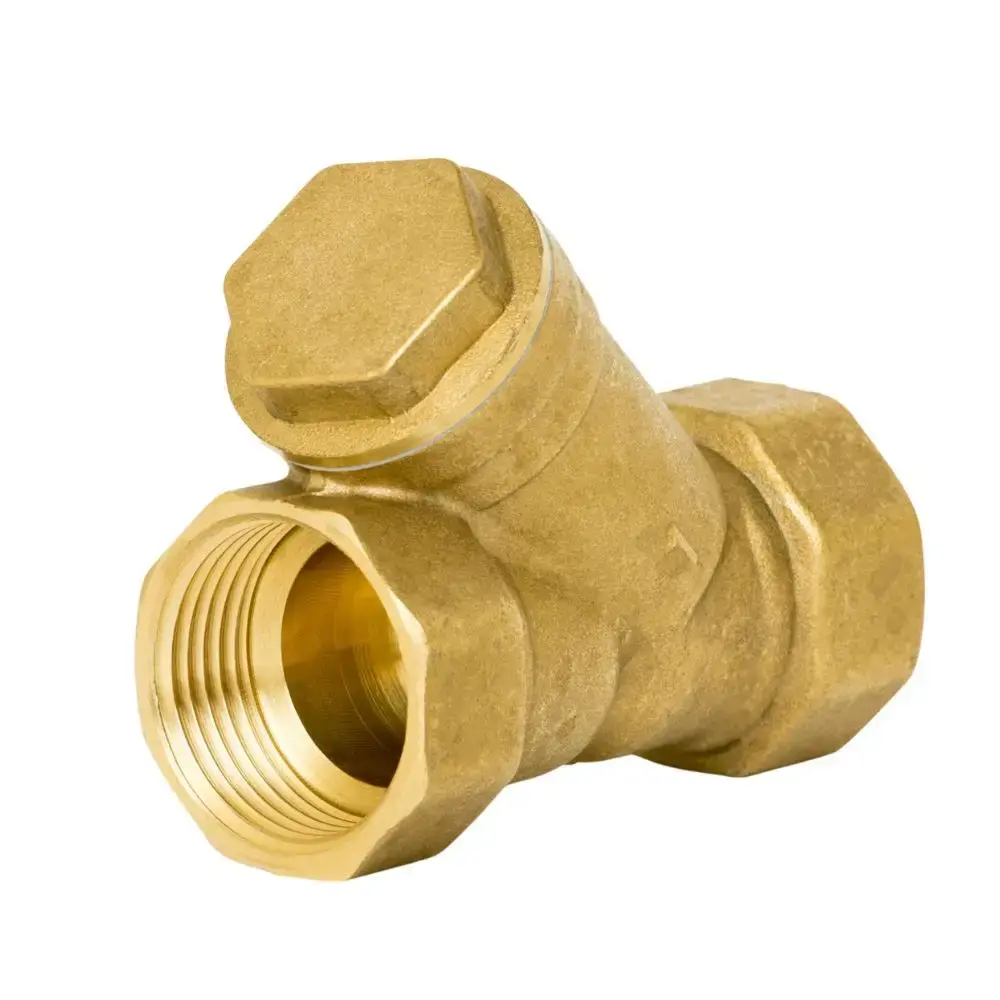

Brass Y Strainer

From $15.40

Inc GST
In Stock
Make an Enquiry
BSP Threaded BrassY strainer for media up to 16 BAR (235 PSI). Features a 1mm (also know as 18 mesh or 1000 micron) stainless steel perforated screen on a 60 degree angle to effectively remove suspended particles. Great for screening a line before a control valve or to stop contaminates spreading further down your line and potentially damaging property. Suited for water, gases and other non corrosive media with temperatures from -20°C to 150°C.

Model Size DN (mm) Media Pressure Media Temperature
YSB-04 ½” 15 0 to 16 BAR -20°C to 150°C
YSB-05 ¾” 20 0 to 16 BAR -20°C to 150°C
YSB-06 1” 25 0 to 16 BAR -20°C to 150°C
YSB-07 1 ¼” 32 0 to 16 BAR -20°C to 150°C
YSB-08 1 ½” 40 0 to 16 BAR -20°C to 150°C
YSB-09 2” 50 0 to 16 BAR -20°C to 150°C
YSB-11 3” 80 0 to 16 BAR -20°C to 150°C
YSB-12 4” 100 0 to 16 BAR -20°C to 150°C

Brass Y Strainer

DN (mm) BSP A B H
15 1/2" 12 57 30
20 3/4" 13 67 38
25 1” 14 76 46
32 1 ¼” 16 98 52
40 1 ½” 18 104 58
50 2” 19 127 73
65 2 ½” 25 148 102
80 3” 27 175 110
100 4” 27 196 135

All dimensions in mm unless shown otherwise.

Size 1/2" to 4" BSP
Body Brass
Mesh Brass
Pressure Range 0 to 16 BAR
Factory Accredited CE, ISO 9001

  • What is a Threaded Brass Y Strainer?

    A threaded Brass Y Strainer is a strainer that is made out of a Brass Housing which contains a 304 Stainless Steel perforated screen strainer element within it that sits on a 60 degree angle. This stems the nickname (trade name) as it forms a Y in the shape of the unit. The entry and exit are a threaded connection, in this case threaded BSP, and the strainer element can be accessed while the unit is inline by removing the cap on the bottom of the Y. This cap utilises a PTFE ring to form a seal between the cap and body. These Strainers are used inline to protect downstream equipment from suspended solids or debris of a size that the strainer element will catch.

  • How does a Brass Y Strainer work?

    The media enters the strainer and is then carried to the filter element inside the strainer. The exit is on the other side of the strainer element so it will flow through the strainer element while any particle will be caught in the strainer element as it cant fit through the holes. These are a very simple device as they have no moving parts and very valuable to all process lines as it offers a form of protection, quite often the first layer of defence. It is standard practice to use a strainer upstream in all process lines.

  • How do I maintain a Brass Y Strainer?

    Really the only maintenance that is required on a Y Strainer is to clean the element. How regularly this occurs depends upon how dirty the media is. There are some indicators that the element needs to be clean usually by a bigger than normal drop of pressure or a decrease in velocity of the media downstream from the strainer. For maintenance the line must first be isolated and pressure removed from it. To clean the element the plug on the bottom of the Y Strainer needs to be removed. This will then allow the element to be removed from the strainer and cleaned. It can then be reinstalled and pressure returned to the line.

  • How do I install a Brass Y Strainer?

    There are really only two steps to follow to ensure a good installation of these threaded Y strainers. The first and most important is to ensure the direction of flow is followed. This is indicated by an arrow on the side of the housing. The next is not essential but it is best to have the bottom of the Y strainer facing down. This is so any dirt or debris collected will sit at the bottom of the strainer element and will be very easy to remove when the bung is opened. There are some exceptions to this in media such as steam where it is common to have the Y strainer sit on its side. It is best to install an isolation valve before the strainer so the line can be isolated while maintenance is performed on the strainer. This could be as simple as a 2 piece stainless steel ball valve.

  • How long will my Brass Y Strainer Last?

    This really depends upon the media compatibility and how clean it is. Also the external environment will have some influence on the unit's lifetime. The unit itself has no moving parts so there is no mechanical wear, only from the media running through the Strainer.

  • What are typical uses of a Threaded Stainless Steel Y Strainer?

    These Brass Y Strainers have a wide range of usage cases as long as the media, temperature and pressure are compatible with the unit. This can include water, waste water, air, and any other compatible media.

  • How long will my product take to get to me?

    This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.

  • What warranty do I get?

    All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all Strainers leave our warehouse tested and inspected so there are rarely any issues. Also once your Strainer is in and operating it will most likely continue to do so for a very long time barring any external factors and it is kept clean.

Others Also Bought

YSB

Brass Y Strainer

Features:

Size 1/2" to 4" BSP
Body Brass
Mesh Brass
Pressure Range 0 to 16 BAR
Factory Accredited CE, ISO 9001

Description:

BSP Threaded BrassY strainer for media up to 16 BAR (235 PSI). Features a 1mm (also know as 18 mesh or 1000 micron) stainless steel perforated screen on a 60 degree angle to effectively remove suspended particles. Great for screening a line before a control valve or to stop contaminates spreading further down your line and potentially damaging property. Suited for water, gases and other non corrosive media with temperatures from -20°C to 150°C.

Model Size DN (mm) Media Pressure Media Temperature
YSB-04 ½” 15 0 to 16 BAR -20°C to 150°C
YSB-05 ¾” 20 0 to 16 BAR -20°C to 150°C
YSB-06 1” 25 0 to 16 BAR -20°C to 150°C
YSB-07 1 ¼” 32 0 to 16 BAR -20°C to 150°C
YSB-08 1 ½” 40 0 to 16 BAR -20°C to 150°C
YSB-09 2” 50 0 to 16 BAR -20°C to 150°C
YSB-11 3” 80 0 to 16 BAR -20°C to 150°C
YSB-12 4” 100 0 to 16 BAR -20°C to 150°C
.

Brass Y Strainer

YSB

Dimensions:

Brass Y Strainer

DN (mm) BSP A B H
15 1/2" 12 57 30
20 3/4" 13 67 38
25 1” 14 76 46
32 1 ¼” 16 98 52
40 1 ½” 18 104 58
50 2” 19 127 73
65 2 ½” 25 148 102
80 3” 27 175 110
100 4” 27 196 135

All dimensions in mm unless shown otherwise.
