SKU: OB-31

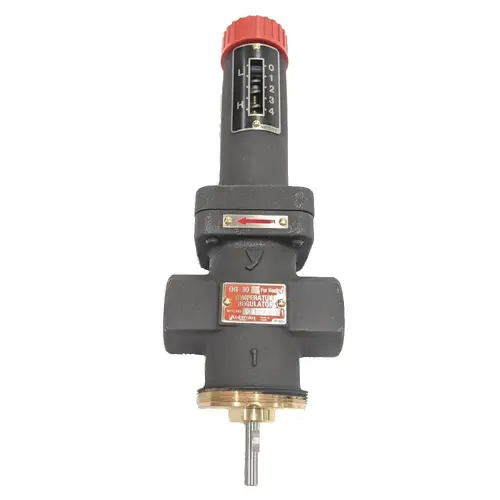

Bronze Temperature Regulator ( Cooling )

From $1,023.00

Inc GST
In Stock
Make an Enquiry
  • Small and compact with accurate control
  • PTFE/Stainless valve & seat enables long durability
  • Single valve and bellows offers stable temperature control without being affected by inlet pressure fluctuations
  • Thermal specification changeable by swapping thermal bulbs
  • Easy setting of the initial temperature by handle operation
  • Common Thermal Bulb connection allows for the Thermal Bulb to be interchanged between any sized valve
Application Water | Steam
Type External Pressurized Bellows Temperature Regulator
Max Pressure 10 Bar (17 Bar for water)
Temperature 185°C
Connection BSPT (ISO 7.1)
Max Bulb Pressure 10 Bar
Set Point Range 0~35°C| 25~70°C| 40~100°C| 60~130°C| 70~150°C
Max Temperature for Bulb Upper set point + 40°C
Body Bronze
Valve Disc PTFE
Valve Seat Stainless Steel
Bulb Copper (Nickel Chrome Plated)

Model d L H1 H Weight (kg)
OB-30-04 1/2" 75 130 318.5 2.7
OB-30-05 3/4" 80 130 318.5 2.8
OB-30-06 1" 90 130 318.5 3

Item Description Material
1 Body Bronze
2 Spring Chamber Bronze
3 Disc PTFE
4 Valve Brass
5 Valve Seat Stainless Steel
6 Balance Bellows Phosphor Bronze
7 Spindle Stainless Steel
8 Collar Brass
9 Nut Brass
10 & 11 Guide Brass
12 Spring Alloy Steel
13 Spring Plate Cast Iron
14 Spring Plate Brass
Item Description Material
15 Adjusting Screw Carbon Steel
16 Washer Stainless Steel
17 Handle Resin
18 Screw Steel
19 Washer Steel
20 Bellows Follower Brass
21 Bellows Phosphor Bronze
22 Ring Brass
23 Gasket PTFE
24 Cap Resin
25 Bolt Carbon Steel
26, 27 & 28 Name Plate Stainless Steel
29 Label Polyester



Size 1/2" to 1" BSPT
Body Broze
Pressure Range 0 to 10 BAR
Temperature Various
