Features:
Size 1 1/2" to 3" BSP & 80mm to 150mm Table D flanged
Function Normally Closed (power to open)
Valve Operation Pilot
Body Cast Iron
Seat Natural Rubber
Pressure Range 1.5 to 16 BAR
Media Non aggressive media

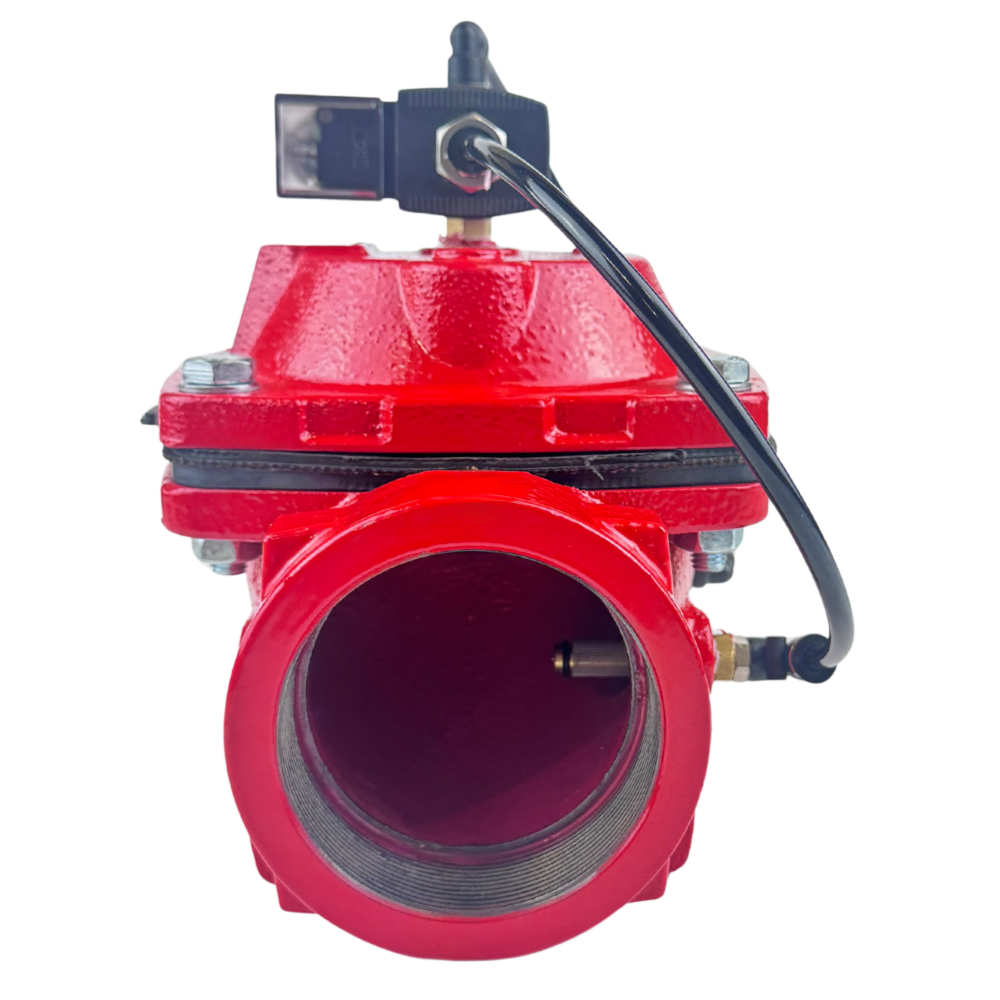

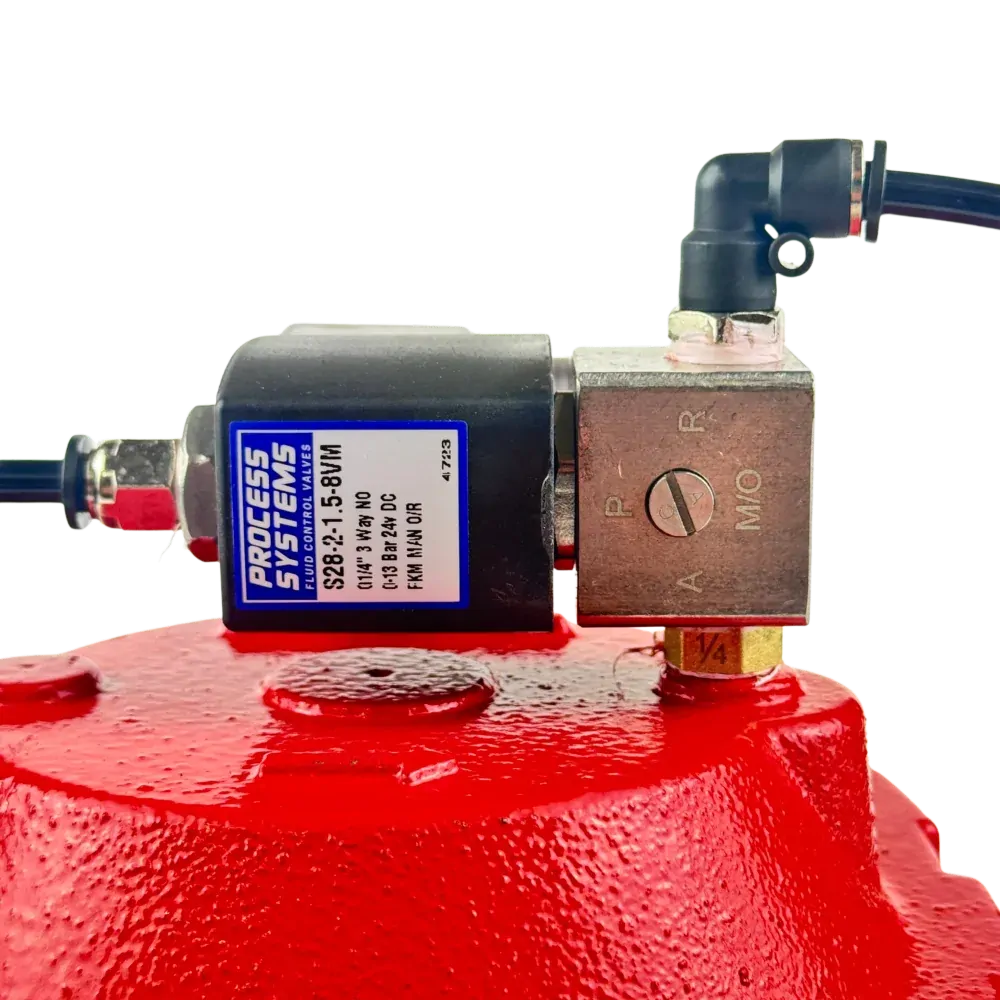

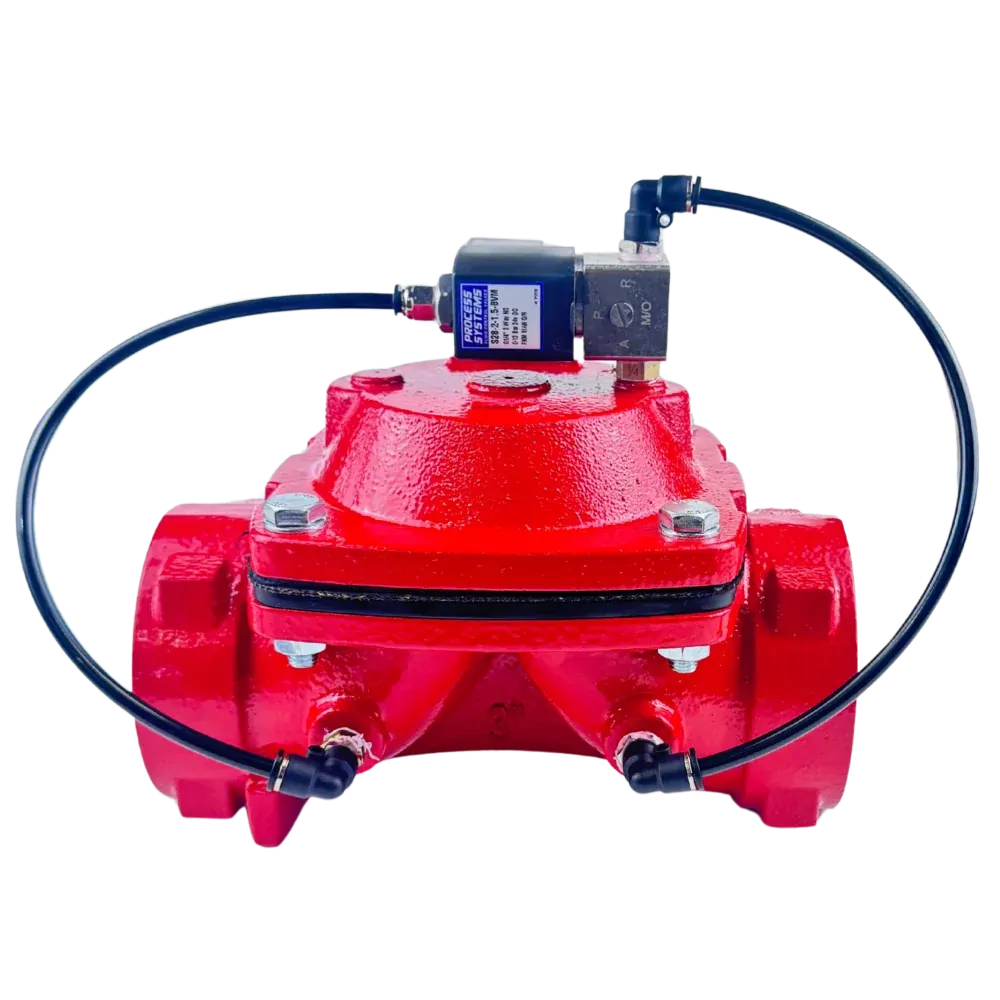

Cast Iron solenoid pilot operated diaphragm valves. Large orrifice sizes make it great for high flow applications. A remote pilot media can be used to control viscous or contaminated fluids if needed. Standard with finger filters to protect the pilot valve from contamination. Typical Applications include: Dust suppression & Delivery of liquids for industrial, agriculture or irrigation. Refer to our series 2 solenoid valve for pilot information.
* insert voltage code (12v DC, 24v DC, 24v AC, 110v AC, 240v AC, 415v AC)
For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.
Model | DN | L | W | H | Connection |
C85-8-40-* | 40 | 186 | 125 | 110 |
BSP Threaded
|
C85-9-50-* | 50 | 186 | 125 | 110 | |
C85-11-80-* | 80 | 210 | 125 | 150 | |
C85-11F-80-* | 80 | 252 | 170 | 210 |
Table D Flanged
|
C85-12F-100-* | 100 | 305 | 208 | 230 | |
C85-14F-150- | 150 | 390 | 300 | 315 |
All dimensions in mm unless shown otherwise.
