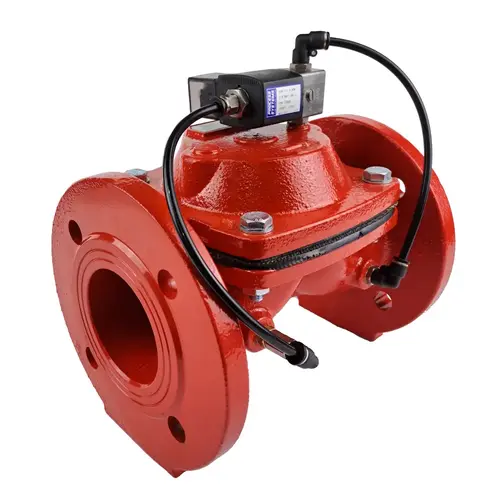

Cast Iron Normally Open Solenoid Valve

From $506.00

Inc GST
In Stock
Make an Enquiry

Cast Iron solenoid pilot operated diaphragm valves. Lare orrifice sizes make it great for high flow applications. A remote pilot media can be used to control viscous or contaminated fluids if needed.Standard with finger filters to protect the pilot valve from contamination. Typical Applications include: Delivery of liquids for industrial, agriculture, dust suppresion or irrigation.

Model Port Size Orifice ømm Pressure (BAR) Temperature Weight Kg
C86-8-40-* 1 ½ BSP 40 1.5-12 5°C to 50°C 4.2
C86-9-50-* 2 BSP 50 1.5-12 5°C to 50°C 4.2
C86-11-80-* 3 BSP 80 1.5-12 5°C to 50°C 8.2
C86-11F-80-* 80mm 80 1.5-12 5°C to 50°C 20.2
C86-12F-100-* 100mm 100 1.5-12 5°C to 50°C 22.2
C86-14F-150-* 150mm 150 1.5-12 5°C to 50°C 52.2

* insert voltage code (12v DC, 24v DC, 24v AC, 110v AC, 240v AC, 415v AC)

For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

Cast Iron Normally Open Solenoid Diaphragm Valve

Model DN L W H Connection
C86-8-40-* 40 186 125 110
BSP Threaded
C86-9-50-* 50 186 125 110
C86-11-80-* 80 210 125 150
C86-11F-80-* 80 252 170 210
Table D Flanged
C86-12F-100-* 100 305 208 230
C86-14F-150- 150 390 300 315

All dimensions in mm unless shown otherwise.

Cast Iron Normally Open Solenoid Diaphragm Valve

Size 1 1/2" to 3" BSP & 80mm to 150mm Table D flanged
Function Normally Open (power to close)
Valve Operation External Pilot
Body Cast Iron
Seat Natural Rubber
Pressure Range 1.5 to 12 BAR
Media Non aggressive media

Others Also Bought

C86

Cast Iron Normally Open Solenoid Valve

Features:

Size 1 1/2" to 3" BSP & 80mm to 150mm Table D flanged
Function Normally Open (power to close)
Valve Operation External Pilot
Body Cast Iron
Seat Natural Rubber
Pressure Range 1.5 to 12 BAR
Media Non aggressive media

Description:

Cast Iron solenoid pilot operated diaphragm valves. Lare orrifice sizes make it great for high flow applications. A remote pilot media can be used to control viscous or contaminated fluids if needed.Standard with finger filters to protect the pilot valve from contamination. Typical Applications include: Delivery of liquids for industrial, agriculture, dust suppresion or irrigation.

Model Port Size Orifice ømm Pressure (BAR) Temperature Weight Kg
C86-8-40-* 1 ½ BSP 40 1.5-12 5°C to 50°C 4.2
C86-9-50-* 2 BSP 50 1.5-12 5°C to 50°C 4.2
C86-11-80-* 3 BSP 80 1.5-12 5°C to 50°C 8.2
C86-11F-80-* 80mm 80 1.5-12 5°C to 50°C 20.2
C86-12F-100-* 100mm 100 1.5-12 5°C to 50°C 22.2
C86-14F-150-* 150mm 150 1.5-12 5°C to 50°C 52.2

* insert voltage code (12v DC, 24v DC, 24v AC, 110v AC, 240v AC, 415v AC)

For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

.

Cast Iron Normally Open Solenoid Valve

C86

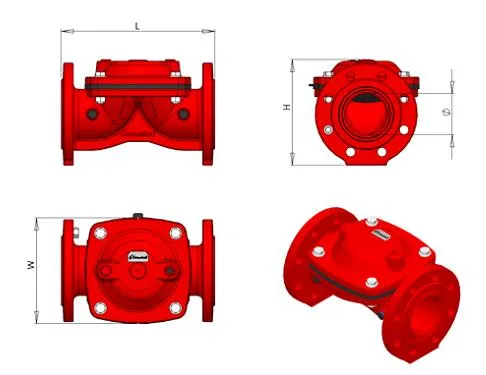

Dimensions:

Cast Iron Normally Open Solenoid Diaphragm Valve

Model DN L W H Connection
C86-8-40-* 40 186 125 110
BSP Threaded
C86-9-50-* 50 186 125 110
C86-11-80-* 80 210 125 150
C86-11F-80-* 80 252 170 210
Table D Flanged
C86-12F-100-* 100 305 208 230
C86-14F-150- 150 390 300 315

All dimensions in mm unless shown otherwise.

.

Cast Iron Normally Open Solenoid Valve

C86

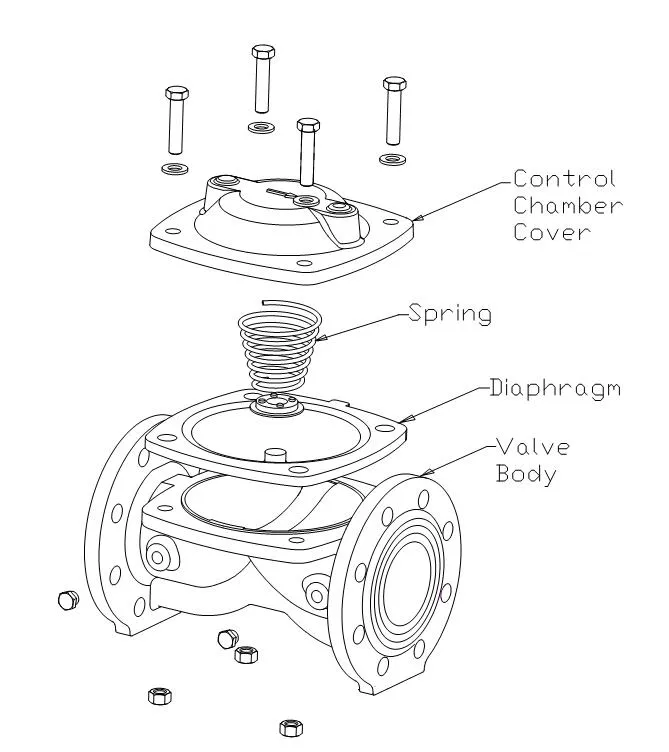

Construction:

Cast Iron Normally Open Solenoid Diaphragm Valve
