Class 800 Forged Steel Globe Valve

From $60.50

Inc GST
In Stock
Make an Enquiry

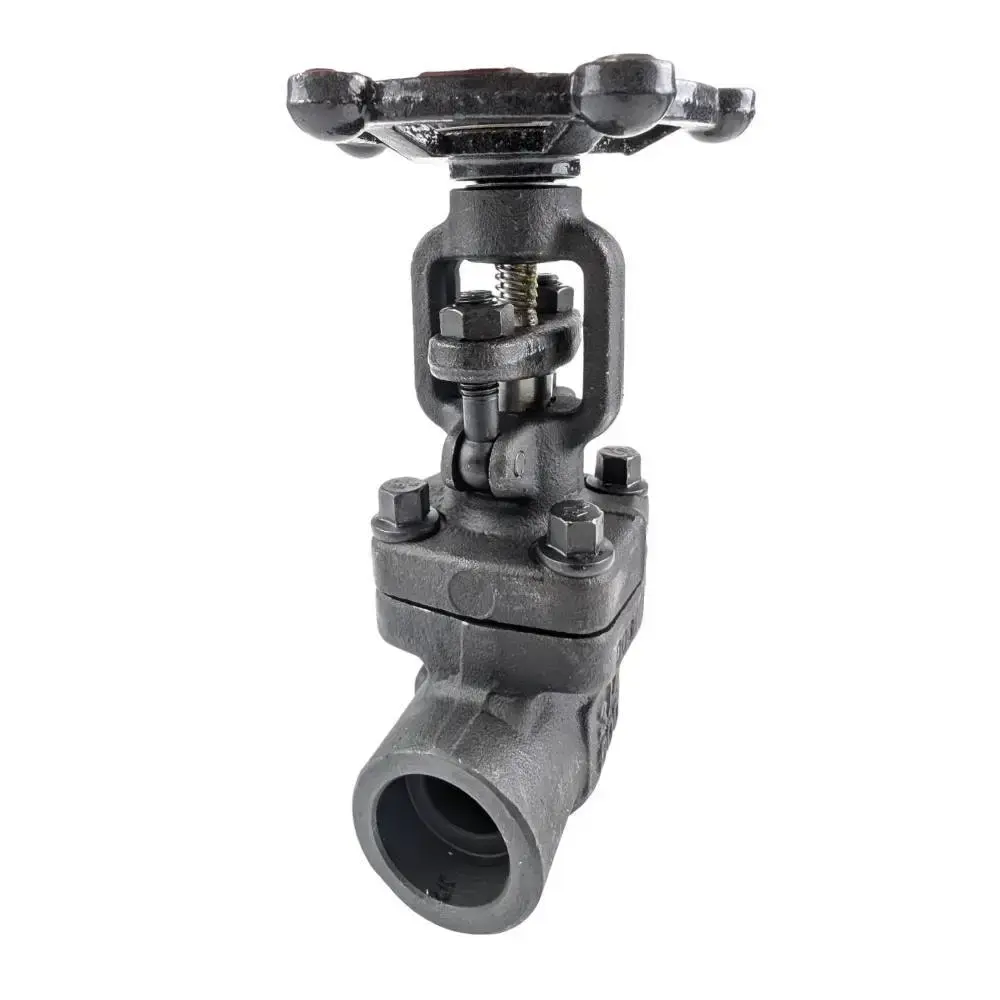

Robust Class 800 A105 Forged Steel Globe Valve from 1/2" to 2" Socket Weld end connections with rising stem manual hand wheel. For pressures up to 136 Bar depending upon temperature (see chart below) and media type. Suitable for use across Petrochemical, Steam, Mining and Industrial applications. Designed to API602 and tested to API598.

Model Size (Socket Weld) Design Pressure Media Temperature Weight (kg)
GLF8S-04 1/2" 13.62 MPa @ -29°C ~ 35°C 454°C @ 5.5 MPa 2.28
GLF8S-05 3/4" 2.37
GLF8S-06 1" 4.3
GLF8S-07 1 1/4" 5.75
GLF8S-08 1 1/2" 7.8
GLF8S-09 2" 12.5

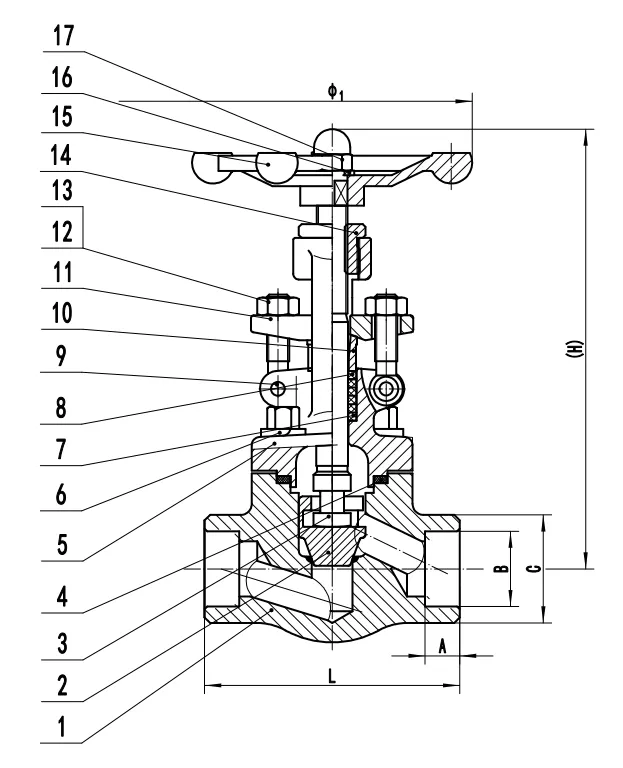

Class 800 Forged Steel Solvent Weld Globe Valve Dimensions

Model Size L A (+0.5) B (+0.4) C (Ø) Ø Hmin Hmax
GLF8S-04 1/2" 79 9.5 21 33 100 142 158
GLF8S-05 3/4" 92 12.5 27.2 39 100 144 159.5
GLF8S-06 1" 111 12.5 33.9 46 120 189.5 202
GLF8S-07 1 1/4" 120 12.5 42.7 56 160 222 236
GLF8S-08 1 1/2" 152 12.5 48.8 63 160 238 261. 5
GLF8S-09 2" 172 16 61.2 76 180 273 303

Class 800 Forged Steel Solvent Weld Globe Valve Dimensions

NO. NAME MATERIAL
1 BODY A105+13Cr
2 DISC 13Cr
3 STEM 1Cr13
4 BONNET GASKET 08F+GRAPHITE
5 BONNET A105
6 BOLT A193 B7
7 PACKING I GRAPHITE
8 PACKING II PACKING
9 PIN 45# STEEL
10 PACKING BUSHING 2Cr13
11 PACKING PLATE A105
12 NUT A194 2H
13 BOLT A193 B7
14 STEM NUT 35/1CR13
15 HANDWHEEL MALLEABLE CAST IRON
16 WASHER Q235
17 BONNET NUT A194 2H

Size 1/2" to 2" Socket Weld
Body Forged Steel
Seat 13Cr reinforced steel
Pressure 136 Bar
