SKU: YPLF

Female Swivel Elbow Push Fit

From $3.30

Inc GST
In Stock
Make an Enquiry

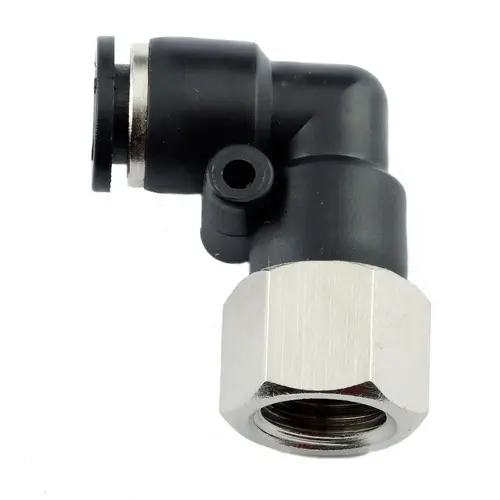

Female BSP end on a swivel elbow connector.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Pre-taped Teflon Gum, Allen key drive through centre

Female Swivel Elbow Push Fit Fitting

Model O.D Tube (øD) Thread (Rc) BSPP E B øP A H F ød
YPLF04-M5 4 M5 16.8 18.3 10.5 4 10 - -
YPLF04-01 4 1/8” 16.8 22.8 10.5 7 14 - -
YPLF04-02 4 1/4” 16.8 25.8 10.5 9.5 17 - -
YPLF06-M5 6 M5 19 21.8 13 4 12 8 3.2
YPLF06-01 6 1/8” 19 24.8 13 7 12 8 3.2
YPLF06-02 6 1/4” 19 27.8 13 9.5 17 8 3.2
YPLF06-03 6 3/8” 19 28.8 13 10.5 21 8 3.2
YPLF06-04 6 1/2" 19 30.8 13 13 24 8 3.2
YPLF08-01 8 1/8” 23 27 14.4 7 14 9 3.2
YPLF08-02 8 1/4” 23 31 14.4 9.5 17 9 3.2
YPLF08-03 8 3/8” 23 32 14.4 10.5 21 9 3.2
YPLF08-04 8 1/2" 23 34 14.4 13 24 9 3.2
YPLF10-01 10 1/8” 27.5 31 18.4 7 17 12 4.2
YPLF10-02 10 1/4” 27.5 35 18.4 9.5 17 12 4.2
YPLF10-03 10 3/8” 27.5 36 18.4 10.5 21 12 4.2
YPLF10-04 10 1/2" 27.5 38 18.4 13 24 12 4.2
YPLF12-02 12 1/4” 30 36.5 20 9.5 21 13.2 4.2
YPLF12-03 12 3/8” 30 37.5 20 10.5 21 13.2 4.2
YPLF12-04 12 1/2" 30 39.5 20 13 24 13.2 4.2

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 12mm
Thread Size M5 to 1/2"
Function Female Swivel Elbow Push Fit

Others Also Bought

YPLF

Female Swivel Elbow Push Fit

Features:

Tube Size 4mm to 12mm
Thread Size M5 to 1/2"
Function Female Swivel Elbow Push Fit

Description:

Female BSP end on a swivel elbow connector.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Pre-taped Teflon Gum, Allen key drive through centre
.

Female Swivel Elbow Push Fit

YPLF

Dimensions:

Female Swivel Elbow Push Fit Fitting

Model O.D Tube (øD) Thread (Rc) BSPP E B øP A H F ød
YPLF04-M5 4 M5 16.8 18.3 10.5 4 10 - -
YPLF04-01 4 1/8” 16.8 22.8 10.5 7 14 - -
YPLF04-02 4 1/4” 16.8 25.8 10.5 9.5 17 - -
YPLF06-M5 6 M5 19 21.8 13 4 12 8 3.2
YPLF06-01 6 1/8” 19 24.8 13 7 12 8 3.2
YPLF06-02 6 1/4” 19 27.8 13 9.5 17 8 3.2
YPLF06-03 6 3/8” 19 28.8 13 10.5 21 8 3.2
YPLF06-04 6 1/2" 19 30.8 13 13 24 8 3.2
YPLF08-01 8 1/8” 23 27 14.4 7 14 9 3.2
YPLF08-02 8 1/4” 23 31 14.4 9.5 17 9 3.2
YPLF08-03 8 3/8” 23 32 14.4 10.5 21 9 3.2
YPLF08-04 8 1/2" 23 34 14.4 13 24 9 3.2
YPLF10-01 10 1/8” 27.5 31 18.4 7 17 12 4.2
YPLF10-02 10 1/4” 27.5 35 18.4 9.5 17 12 4.2
YPLF10-03 10 3/8” 27.5 36 18.4 10.5 21 12 4.2
YPLF10-04 10 1/2" 27.5 38 18.4 13 24 12 4.2
YPLF12-02 12 1/4” 30 36.5 20 9.5 21 13.2 4.2
YPLF12-03 12 3/8” 30 37.5 20 10.5 21 13.2 4.2
YPLF12-04 12 1/2" 30 39.5 20 13 24 13.2 4.2

All dimensions in mm unless shown otherwise.
