Features:
Size 15mm to 100mm
Body 316 Stainless Steel
Seat RPTFE
Pressure 20 BAR @ ambient
Temperature -10°C to 180°C
Actuation Lockable Lever or Gear Box

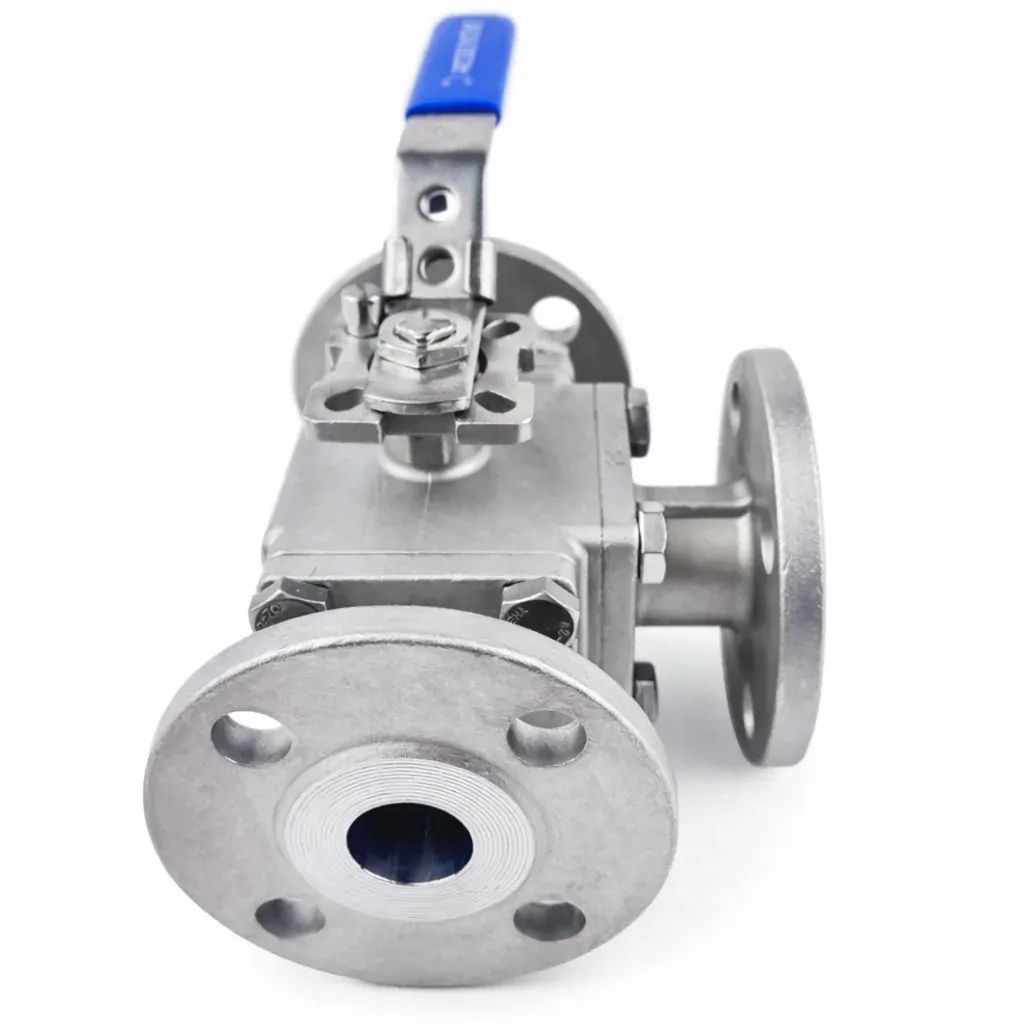

High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Typical applications include water treatment, chemical, marine, petrochemical and general industry.
| Model | DN (mm) | L port CV | T port CV (Through) | T port CV (Branch) | Media Pressure | Media Temperature | Torque (Nm) |
|---|---|---|---|---|---|---|---|
| BLS3L4FA-L-RT | 15 | 6 | 10 | 5 | Vacuum (29" Hg) to 20 Bar (10 Bar Steam) | -20°C to 180°C | 9 |
| BLS3L5FA-L-RT | 20 | 15 | 21 | 13 | Vacuum (29" Hg) to 20 Bar (10 Bar Steam) | -20°C to 180°C | 13 |
| BLS3L6FA-L-RT | 25 | 27 | 36 | 22 | Vacuum (29" Hg) to 20 Bar (10 Bar Steam) | -20°C to 180°C | 18 |
| BLS3L7FA-L-RT | 32 | 28 | 58 | 25 | Vacuum (29" Hg) to 20 Bar (10 Bar Steam) | -20°C to 180°C | 31 |
| BLS3L8FA-L-RT | 40 | 65 | 90 | 55 | Vacuum (29" Hg) to 20 Bar (10 Bar Steam) | -20°C to 180°C | 48 |
| BLS3L9FA-L-RT | 50 | 120 | 175 | 100 | Vacuum (29" Hg) to 20 Bar (10 Bar Steam) | -20°C to 180°C | 70 |
| BLS3L10FA-L-RT | 65 | 175 | 235 | 149 | Vacuum (29" Hg) to 20 Bar (10 Bar Steam) | -20°C to 180°C | 98 |
| BLS3L11FA-L-RT | 80 | 300 | 450 | 270 | Vacuum (29" Hg) to 20 Bar (10 Bar Steam) | -20°C to 180°C | 128 |
| BLS3L12FA-L-RT | 100 | 353 | 800 | 475 | Vacuum (29" Hg) to 20 Bar (10 Bar Steam) | -20°C to 180°C | 185 |
| L Port | T Port |
|---|---|
 |

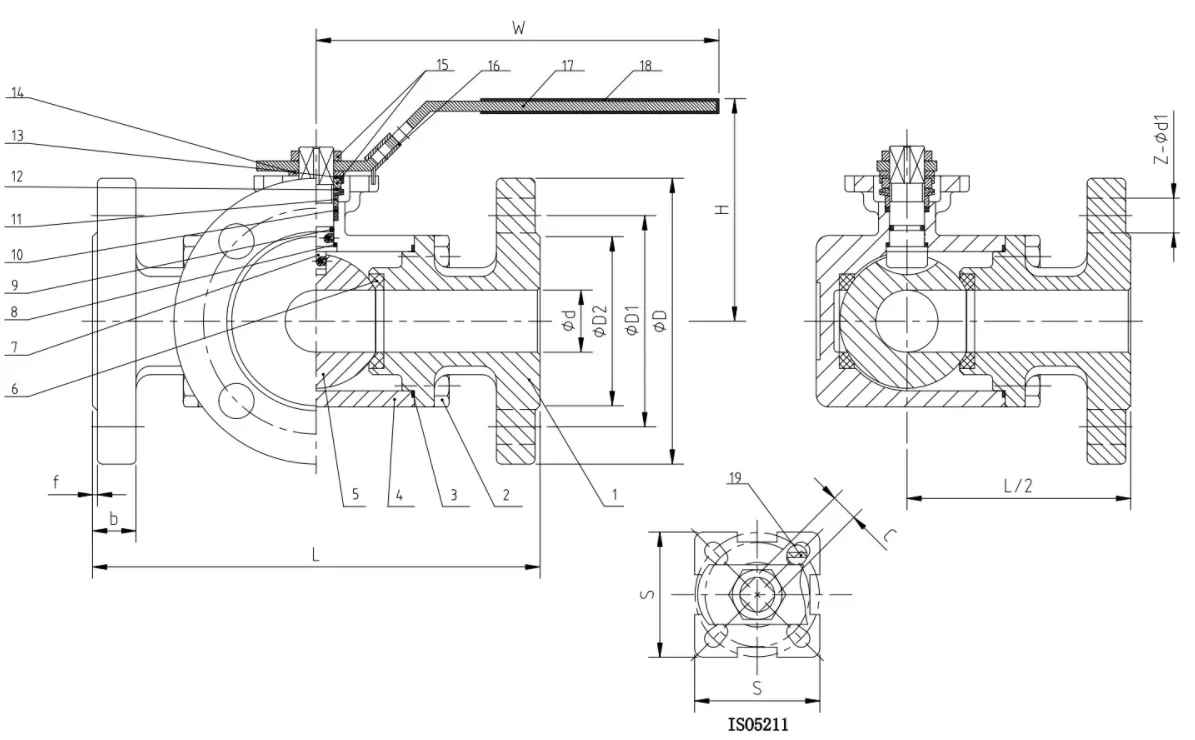

| Size | d | L | D | D1 | D2 | b | f | H | W | C | ISO5211 | Z- Ød1 | h | s |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 15 | 152 | 89 | 60.5 | 35 | 11 | 2 | 77 | 130 | 9 | F03/F04 | 4-15 | 48 | 42.6 |
| 3/4" | 20 | 167 | 98 | 70 | 43 | 11 | 2 | 84 | 161 | 11 | F04/F05 | 4-15 | 53 | 50.4 |
| 1" | 25 | 180 | 108 | 79.5 | 51 | 12 | 2 | 93 | 163 | 11 | F04/F05 | 4-15 | 58.5 | 50.4 |
| 1-1/4" | 32 | 190 | 117 | 89 | 64 | 13 | 2 | 113 | 209 | 14 | F05/F07 | 4-15 | 71 | 66.5 |
| 1-1/2" | 40 | 212 | 127 | 98.5 | 73 | 15 | 2 | 121 | 209 | 14 | F05/F07 | 4-15 | 77.5 | 66.5 |
| 2" | 49 | 230 | 152 | 120.5 | 92 | 16 | 2 | 126 | 209 | 14 | F05/F07 | 4-19 | 85 | 66.5 |
| 2-1/2" | 62 | 290 | 178 | 139.5 | 105 | 18 | 2 | 175 | 450 | 17 | F07/F10 | 4-19 | 110 | 93.6 |
| 3" | 75 | 310 | 190 | 152.5 | 127 | 19 | 2 | 188 | 500 | 17 | F07/F10 | 4-19 | 122.5 | 93.6 |
| 4" | 99 | 350 | 229 | 190.5 | 157 | 24 | 2 | 211 | 550 | 17 | F07/F10 | 8-19 | 145.5 | 93.6 |
All dimensions in mm unless specified otherwise
| Item | Parts | Material | Qty |
|---|---|---|---|
| 1 | Cap | CF8M | 3 |
| 2 | Bolt | SS304 | 12 |
| 3 | Body Gasket | PTFE | 3 |
| 4 | Body Gasket | CF8M | 1 |
| 5 | Ball | SS316 | 1 |
| 6 | Ball Seat | R-PTFE(15%) | 4 |
| 7 | Stem | SS316 | 1 |
| 8 | Thrust Washer | PTFE | 1 |
| 9 | O-Ring | Viton | 1 |
| 10 | Stem Packing | PTFE | 1 |
| Item | Parts | Material | Qty |
|---|---|---|---|
| 11 | Packing Ring | SS304 | 1 |
| 12 | Bellevile Washer | SS301 | 2 |
| 13 | Nut Stopper | SS304 | 1 |
| 14 | Plate Washer | SS304 | 1 |
| 15 | Nut | SS304 | 2 |
| 16 | Lock Device | SS304 | 1 |
| 17 | Handle | SS304 | 1 |
| 18 | Plastic Cover | Plastic | 1 |
| 19 | Stop Pin | SS304 | 1 |
Size 15mm to 100mm
Body 316 Stainless Steel
Seat RPTFE
Pressure 20 BAR @ ambient
Temperature -10°C to 180°C
Actuation Lockable Lever or Gear Box
-
What is a 3 Way ANSI Flanged Stainless Steel Ball Valve?
A three way flanged stainless steel ball valve operates on the same principal as a two way flanged ball valve but instead of complete shut off or complete open (2 states, closed or open) it will have one line open and one line closed. Also during its 90 degree turn from one port to the other there is a point where all lines are partially open to each other even though this is for a short period of time (depends upon how fast you actuate the valve). The 3 way ball valve itself is made of cast stainless steel (CF8M) with a polished stainless steel ball and a stainless steel handle. It utilised a flanged connection as opposed to a threaded connection in a typical three way ball valve.
-
How does a 3 Way Flanged Stainless Steel Ball Valve work?

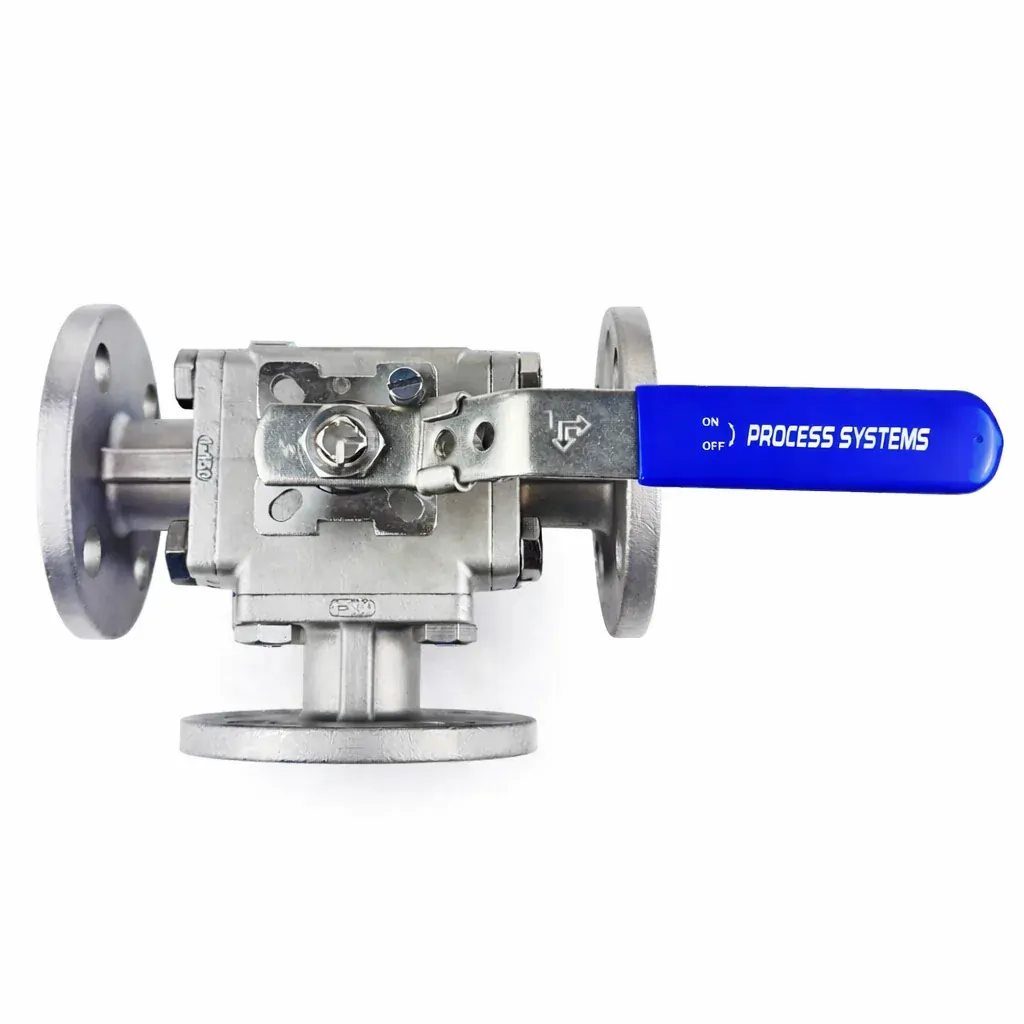

The 3 way flanged valve will work like most ball valves by rotating 90 degrees. This will be in a clockwise or anticlockwise direction depending upon how your actuation is set up (manual, electric or pneumatic) and how you want the ports to interface. In the above state where it is operated by a lever you will move the handle 90 degrees until it reaches the stop pin (this will complete one cycle). This means you cant turn it any further as it only needs a 90 degree rotation to switch from one line to the other. The lever is lockable so it can be padlocked into one position to avoid unwanted actuation.
-
How long will my 3 Way Flanged Ball Valve last?
This depends upon the usage case of your valve, its environment, media and how many times it is cycled. For instance if it is on a clean media, in a clean environment and not cycled regulary the life will be decades. If it is on a corrosive media and in a dry application with a high cycle rate the life will be much shorter. We conduct regular lab testing and 30,000 cycles is a reasonable life cycle depending upon the application.
-
How do I install a 3 Way Flanged Ball Valve?
This really depends upon the application it is going into. As this 3 way valve is flanged it will need another flange to fit against each of its ports. These should be sealed with a gasket in between each flange. The type of gasket will depend upon the media, for instance an inert ambient temperature substance such as water may use an NBR or EPDM gasket but a higher temperature steam application may use a spiral wound or graphite gasket.
-
What are typical uses of a three way flanged ball valve?
These three way flanged ball valves are used on a wide variety of applications. Everything from food industry, power generation, mining and irrigation. The common theme though is where either a diversion (switching from one line to another) or isolation of one line to change over to another is used. The media can range from water, steam all the way through to corrosive chemicals that are compatible with the materials of the valve. Usually been flanged it is used in larger sized applications or where the valve needs to be removed from the pipework easily (as opposed to threaded which can be more time consuming to remove).
-
How long will my product take to get to me?
This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days. Most of these valves weigh over 5kg (except for the smaller models) so it is more than likely that road freight will be used.
-
What warranty do I get?
All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all valves leave our warehouse tested (full material and testing certificates to API598 are available) and inspected so there are rarely any issues. Also once your valve is in and operating it will most likely continue to do so for a very long time.
