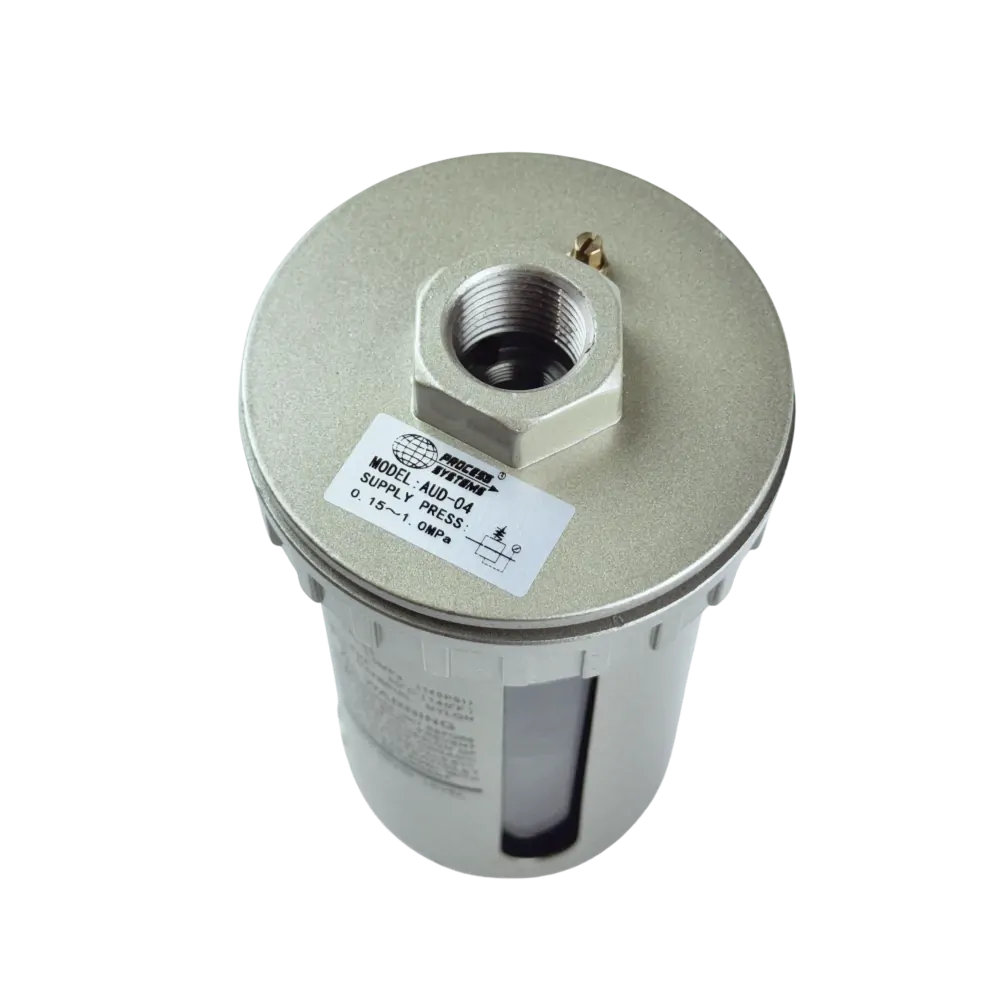

1/2" BSP Auto Drain for condensate

Size 1/2" BSP
Function Automatic drain
Body Die Cast Aluminium
Pressure Range 0 to 8.5 BAR
Media Air

• What is an Auto Drain Valve?

  An Auto Drain Valve also commonly known as a drip leg drain is used in compressed air systems to remove condensate (water) from the air line or receiver. The removal of water increases performance and reduces maintenance on downstream equipment.

• How does an Auto Drain Valve for Compressed Air work?

  Auto Drain Valves should be installed on all low points in airlines, ring maines and/or receivers where water will accumulate. Once the bowl has collected water the float will open the valve to discharge the water in the bowl and then close again once the water has been discharged. The name drip leg drain actually implies that it should be on drip legs which are droppers that come down from a ring main to accumulate and discharge condensate.

• How do I size an Auto Drain Valve?

  The unit is only available in one size, 1/2". A reducing bush or uneven nipple can be used to increase or decrease the port size. The unit itself can cycle as much or as little as necessary so it has a very large discharge capacity.

• How long will my Compressed Air Auto Drain Valve Last?

  The unit has only one moving part so it is very robust. If the air is filtered and free from large contaminants this blow down valve will last decades.

• How do I install an Auto Drain Valve?

  The auto drain must be installed at low points. This can either be at droppers on a ring main/compressed air line or on the bottom of a receiver.

• What are typical uses of a Compressed Air Auto Drain Valve?

  These auto drain valves are used as an automatic water discharge function so they can be used on any application which requires this. This is most commonly on drip legs which are droppers coming off a ring main compressed air line or on the bottom of receivers. These are widely used in all industrial applications from small service industries where a compressor is used to large facilities with pneumatic equipment.
