50% OFF RRP $88.00

SKU: ADV-04

1/2" BSP Float blow down valve 16 Bar

$44.00

Inc GST
In Stock
Make an Enquiry

Automatic Drain Valve to remove condensation from airlines and receivers. Operated automatically by a float in the chamber to discharge and water and then close once this has been expelled.

Port Size 1/2" BSP
Seat Material NBR
Media Air & Water
Working Pressure 0 to 16 Bar
Working Temperature -10°C to 80°C
Body Material Aluminium

Automatic Airline Blow Down Valve

Size 1/2" BSP
Function Automatic Drain
Body Die Cast Aluminium
Pressure Range 0 to 16 BAR
Media Air & Water

  • What is a Float Blow Down Valve?

    An Air Float Blow Down Valve is used in compressed air systems to remove condensate (water) from the air line or compressor. The removal of condensate function increases performance and reduces maintenance on equipment operated by compressed air.

  • How does a Compressed Air Blow Down Valve work?

    These Float Blow Down Valves are installed on all low points in airlines, ring maines and/or compressors where condensate/water will accumulate. Once the bowl has collected water the float will open the valve to discharge the water in the bowl and then close again once the water has been discharged.

  • How do I size an Air Blow Down Valve?

    The unit is only available in one size, 1/2". A reducing bush or uneven nipple can be used to increase or decrease the port size. The unit itself can cycle as much or as little as necessary so it has a very large discharge capacity.

  • How long will my Compressed Air Blow Down Valve Last?

    The unit has only one moving part so it is very robust. If the air is filtered and free from large contaminants this blow down valve will last decades.

  • How do I install a Blow Down Valve?

    The blow down valve must be installed at low points. This can either be at droppers on a ring main/compressed air line or on the bottom of a compressor.

  • What are typical uses of a Compressed Air Blow Down Valve?

    These blow down valves are used as an automatic water discharge function so they can be used on any application which requires this. This is most commonly on ring mains/airlines or on the bottom of compressors. These are widely used in all industrial applications from small service industries where a compressor is used to large facilities with pneumatic equipment.

  • How long will my product take to get to me?

    This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.

  • What warranty do I get?

    All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all Blow Down Valves leave our warehouse tested and inspected so there are rarely any issues. Also once your Valve is in and operating it will most likely continue to do so for a very long time barring any external factors.

We Also Recommend

Others Also Bought

ADV-04

1/2" BSP Float blow down valve 16 Bar

Features:

Size 1/2" BSP
Function Automatic Drain
Body Die Cast Aluminium
Pressure Range 0 to 16 BAR
Media Air & Water

Description:

Automatic Drain Valve to remove condensation from airlines and receivers. Operated automatically by a float in the chamber to discharge and water and then close once this has been expelled.

Port Size 1/2" BSP
Seat Material NBR
Media Air & Water
Working Pressure 0 to 16 Bar
Working Temperature -10°C to 80°C
Body Material Aluminium
.

1/2" BSP Float blow down valve 16 Bar

ADV-04

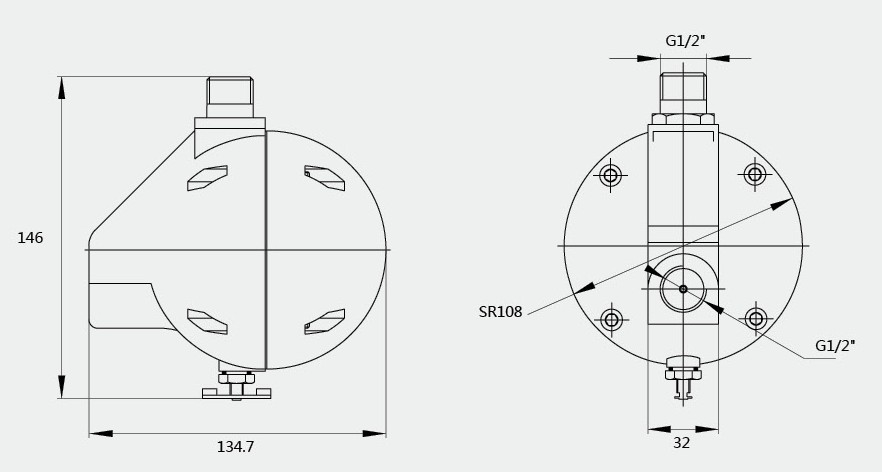

Dimensions:

Automatic Airline Blow Down Valve

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Process Systems Pty Ltd. Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Process Systems Pty. Ltd. are warranted by Process Systems to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Process Systems obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Process Systems and provided such defective product is returned to Process Systems freight prepaid and upon examination by Process Systems such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Process Systems Pty. Ltd. representatives or employees. Process Systems reserves the right to change Valve and Brochure specifications without notice.

.
