SKU: IPV

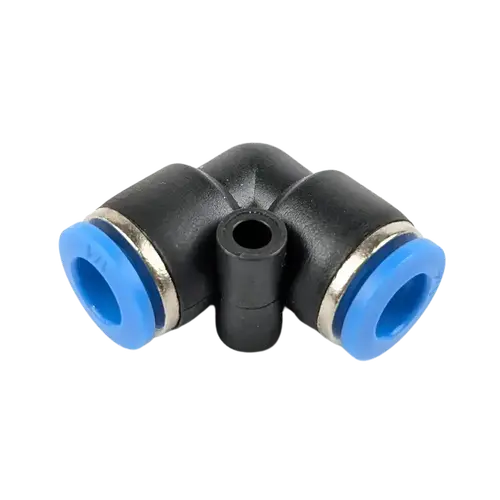

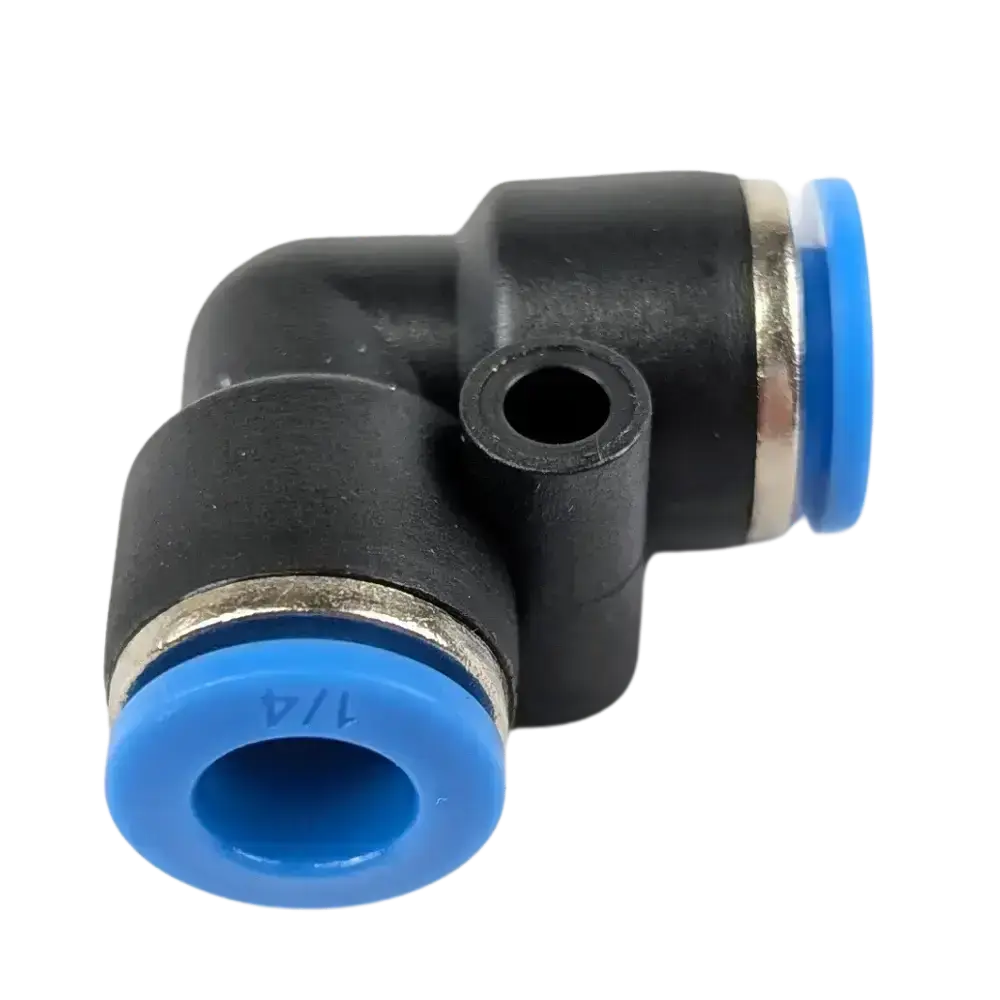

Imperial Elbow Joiner Push Fit

From $2.04

Inc GST
In Stock
Make an Enquiry

Elbow joiner push fit fitting.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C

Imperial Push Fit Joiner Dimensions

Model Tube A B
IPV1/4 1/4" 15.9 19.5
IPV5/16 5/16" 17.8 22.5
IPV3/8 3/8" 20.5 26.9
IPV1/2 1/2" 22.6 29.3

Dimensions in mm unless shown otherwise.

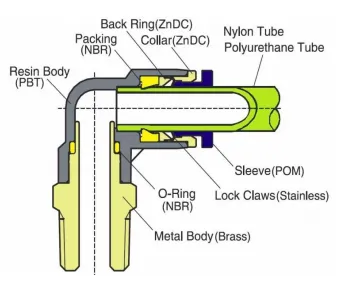

This threaded elbow is only representative of the construction.

Push Fit Fitting Construction

Tube Size 1/4" to 1/2"
Function Elbow Joiner Push Fit
