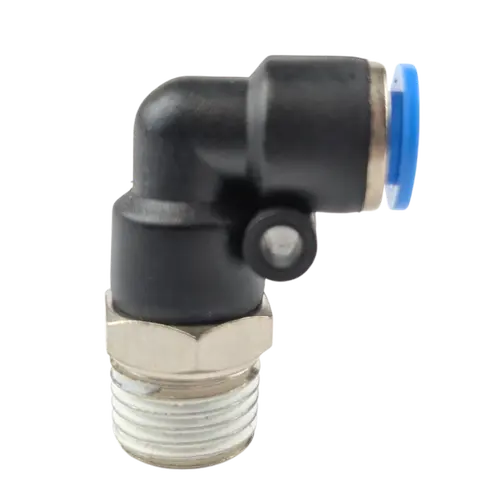

Features:
Tube Size 1/4" to 1/2"
Thread Size M5 to 1/2"
Function Make Swivel Elbow Push Fit
Male tapered thread with a female push fit swivel elbow. Please note the M5 thread is parallel with an oring seal.

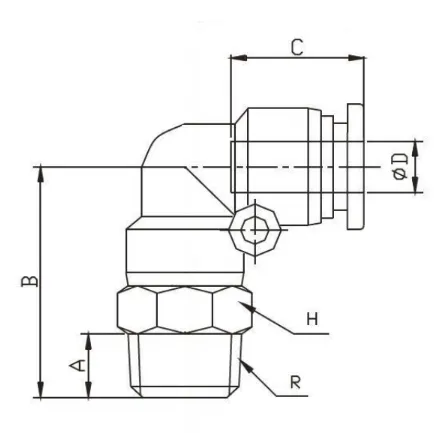

Model | Tube | A | B | C | H |
---|---|---|---|---|---|
IPL1/4-01 | 1/4" | 8 | 27 | 15.9 | 12 |
IPL1/4-02 | 1/4" | 11 | 28.5 | 15.9 | 12 |
IPL1/4-03 | 1/4" | 12 | 32 | 15.9 | 12 |
IPL1/4-04 | 1/4" | 15 | 35.5 | 15.9 | 12 |
IPL5/16-01 | 5/16" | 8 | 30 | 17.8 | 14 |
IPL5/16-02 | 5/16" | 11 | 33 | 17.8 | 14 |
IPL5/16-03 | 5/16" | 12 | 34.5 | 17.8 | 14 |
IPL5/16-04 | 5/16" | 15 | 38 | 17.8 | 14 |
IPL3/8-01 | 3/8" | 8 | 34.8 | 20.2 | 17 |
IPL3/8-02 | 3/8" | 11 | 37.8 | 20.2 | 17 |
IPL3/8-03 | 3/8" | 12 | 38.8 | 20.2 | 17 |
IPL3/8-04 | 3/8" | 15 | 42.3 | 20.2 | 17 |
IPL1/2-02 | 1/2" | 11 | 40.5 | 22.1 | 20 |
IPL1/2-03 | 1/2" | 12 | 41.5 | 22.1 | 20 |
IPL1/2-04 | 1/2" | 15 | 44.5 | 22.1 | 20 |
All dimensions in mm unless shown otherwise.
