Features:
Size 100mm
Valve Body 304 Stainless Steel
Seat EPDM
Gate 304 Stainless Steel
Pressure 10 BAR
Actuation Hand Lever
304 Stainless Steel Wafer Knife Gate Valve with EPDM seat and 304 Stainless Steel Gate. Operated by a Lever and suitable for up to 10 Bar media pressure. Suitable for a wide range of applications where elastomer seats acceptable with Table E Flange. Designed and Manufactured to JB/T8691.
Model | Size (mm) | Pressure Range | Media Temperature |
---|---|---|---|
KGSLE-100 | 100 | 0 to 10 Bar | 0°C to 80°C |
This is a superseded item with limited stock remaining.

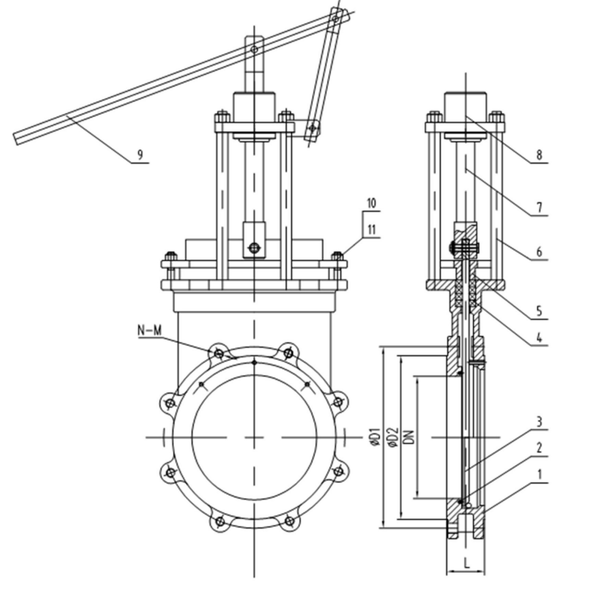

Model | DN(mm) | L | D | D1 | D2 |
---|---|---|---|---|---|
KGSLE-100 | 100 | 47 | 216 | 178 | 8-M16 |
Item | Description | Material |
---|---|---|
1 | Body | CF8 |
2 | Seat | EPDM |
3 | Disc | SS304 |
4 | Packing | PTFE |
5 | Gland | CF8 |
6 | Shoring | Q235 |
7 | Stem | 2Cr13 |
8 | Yoke | Q235 |
9 | Level | Q235 |
10 | Bolt | B8M |
11 | Nut | B8 |
