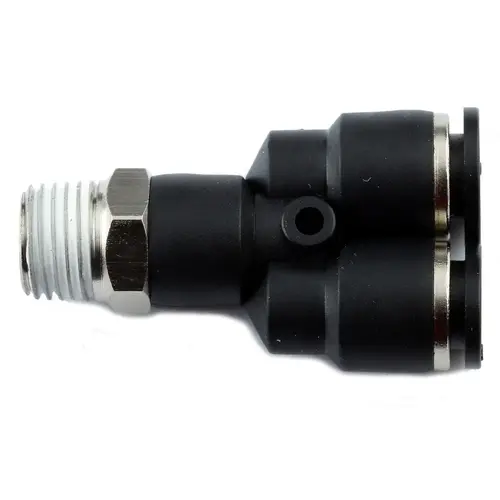

Male Y Branch Push Fit

From $2.97

Inc GST
In Stock
Make an Enquiry

Male BSP tapered thread Y branch connector. Please note the M5 threads are parallel with an oring seal.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Pre-taped Teflon Gum, Allen key drive through centre

Male Branch Y push fit fitting

Model O.D Tube (øD) Thread (R) BSPT E B øP A H F ød
YPX04-M5 4 M5 10.5 39 10.5 4 10 13.5 -
YPX04-01 4 1/8” 10.5 42 10.5 7 10 13.5 -
YPX04-02 4 1/4” 10.5 44.5 10.5 9.5 14 13.5 -
YPX06-M5 6 M5 13 40.5 13 4 12 14.5 3.2
YPX06-01 6 1/8” 13 43.5 13 7 12 14.5 3.2
YPX06-02 6 1/4” 13 46 13 9.5 14 14.5 3.2
YPX06-03 6 3/8” 13 47.5 13 10.5 17 14.5 3.2
YPX06-04 6 1/2" 13 51.5 13 13 21 14.5 3.2
YPX08-01 8 1/8” 14.5 47.5 14.4 7 14 18.5 3.2
YPX08-02 8 1/4” 14.5 50 14.4 9.5 14 18.5 3.2
YPX08-03 8 3/8” 14.5 51 14.4 10.5 17 18.5 3.2
YPX08-04 8 1/2" 14.5 55 14.4 13 21 18.5 3.2
YPX10-01 10 1/8” 18.5 56 18.4 7 17 21 4.2
YPX10-02 10 1/4” 18.5 58.5 18.4 9.5 17 21 4.2
YPX10-03 10 3/8” 18.5 59.5 18.4 10.5 17 21 4.2
YPX10-04 10 1/2" 18.5 63.5 18.4 13 21 21 4.2
YPX12-02 12 1/4” 20 63 20 9.5 19 22.5 4.2
YPX12-03 12 3/8” 20 64 20 10.5 19 22.5 4.2
YPX12-04 12 1/2" 20 67.5 20 13 21 22.5 4.2

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 12mm
Thread Size M5 to 1/2"
Function Male Branch Push Fit

Others Also Bought

YPX

Male Y Branch Push Fit

Features:

Tube Size 4mm to 12mm
Thread Size M5 to 1/2"
Function Male Branch Push Fit

Description:

Male BSP tapered thread Y branch connector. Please note the M5 threads are parallel with an oring seal.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Pre-taped Teflon Gum, Allen key drive through centre
.

Male Y Branch Push Fit

YPX

Dimensions:

Male Branch Y push fit fitting

Model O.D Tube (øD) Thread (R) BSPT E B øP A H F ød
YPX04-M5 4 M5 10.5 39 10.5 4 10 13.5 -
YPX04-01 4 1/8” 10.5 42 10.5 7 10 13.5 -
YPX04-02 4 1/4” 10.5 44.5 10.5 9.5 14 13.5 -
YPX06-M5 6 M5 13 40.5 13 4 12 14.5 3.2
YPX06-01 6 1/8” 13 43.5 13 7 12 14.5 3.2
YPX06-02 6 1/4” 13 46 13 9.5 14 14.5 3.2
YPX06-03 6 3/8” 13 47.5 13 10.5 17 14.5 3.2
YPX06-04 6 1/2" 13 51.5 13 13 21 14.5 3.2
YPX08-01 8 1/8” 14.5 47.5 14.4 7 14 18.5 3.2
YPX08-02 8 1/4” 14.5 50 14.4 9.5 14 18.5 3.2
YPX08-03 8 3/8” 14.5 51 14.4 10.5 17 18.5 3.2
YPX08-04 8 1/2" 14.5 55 14.4 13 21 18.5 3.2
YPX10-01 10 1/8” 18.5 56 18.4 7 17 21 4.2
YPX10-02 10 1/4” 18.5 58.5 18.4 9.5 17 21 4.2
YPX10-03 10 3/8” 18.5 59.5 18.4 10.5 17 21 4.2
YPX10-04 10 1/2" 18.5 63.5 18.4 13 21 21 4.2
YPX12-02 12 1/4” 20 63 20 9.5 19 22.5 4.2
YPX12-03 12 3/8” 20 64 20 10.5 19 22.5 4.2
YPX12-04 12 1/2" 20 67.5 20 13 21 22.5 4.2

All dimensions in mm unless shown otherwise.
