Square Drive Sleeve

From $8.80

Inc GST
In Stock
Make an Enquiry

Square sleeves that are used to insert into actuator to reduce the size of the female drive to fit onto the male drive/shaft a valve (most commonly ball, butterfly or gate valve). Come in all common sizes.

Model A B
ZT11-9SQ.DRIVE 11 9
ZT14-9SQ.DRIVE 14 9
ZT14-11SQ.DRIVE 14 11
ZT17-9SQ.DRIVE 17 9
ZT17-11SQ.DRIVE 17 11
ZT17-14SQ.DRIVE 17 14
ZT22-14SQ.DRIVE 22 14
ZT22-17SQ.DRIVE 22 17
ZT22-19SQ.DRIVE 22 19
ZT27-17SQ.DRIVE 27 17
ZT27-22SQ.DRIVE 27 22
ZT35-27SQ.DRIVE 35 27
ZT36-22SQ.DRIVE 36 22
ZT36-27-36SQ.DRIVE 36 27

Size 11mm to 36mm
Body Cast Steel
Function Square drive adaptor sleeve
Factory Accredited CE, ISO 9001, TUV

  • What is a Square Drive Sleeve?

    A square drive sleeve adapts a female square or star drive in an actuator to a male square drive on a valve stem.

  • How does a Square Drive Sleeve work?

    The outside of the square drive fits into the female drive on an actuator. This will then have a smaller square drive inside it which allows a step down in size to meet the male valve stem size.

  • How long will my Square Drive Sleeve last?

    This will depend upon the cycle rate and fit into the actuator. The fit should be tight to avoid movement of the drive. If it is tight and your actuator is not hitting its stops with a high impact the drive should last the life of your valve.

  • How do I install a Square Drive Sleeve between a valve & actuator?

    The outside square drive will be inserted into the female port in the bottom of the actuator. It should also be tested to make sure it is tight on the male stem of the valve. Once you are sure the sizes and fitting is correct the drive may need to be pressed into the female actuator port with some force. Once this is in place the male stem of the valve can be inserted into the square of the drive.

  • What are typical uses of a Square Drive Sleeve?

    These are used to adapt between different actuator and valve stem sizes.

  • How long will my product take to get to me?

    This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.

  • What warranty do I get?

    All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all product leaves our warehouse tested and inspected so there are rarely any issues. Also once your sleeves is in and operating it will most likely continue to do so for a very long time.

Others Also Bought

ZT

Square Drive Sleeve

Features:

Size 11mm to 36mm
Body Cast Steel
Function Square drive adaptor sleeve
Factory Accredited CE, ISO 9001, TUV

Description:

Square sleeves that are used to insert into actuator to reduce the size of the female drive to fit onto the male drive/shaft a valve (most commonly ball, butterfly or gate valve). Come in all common sizes.

.

Square Drive Sleeve

ZT

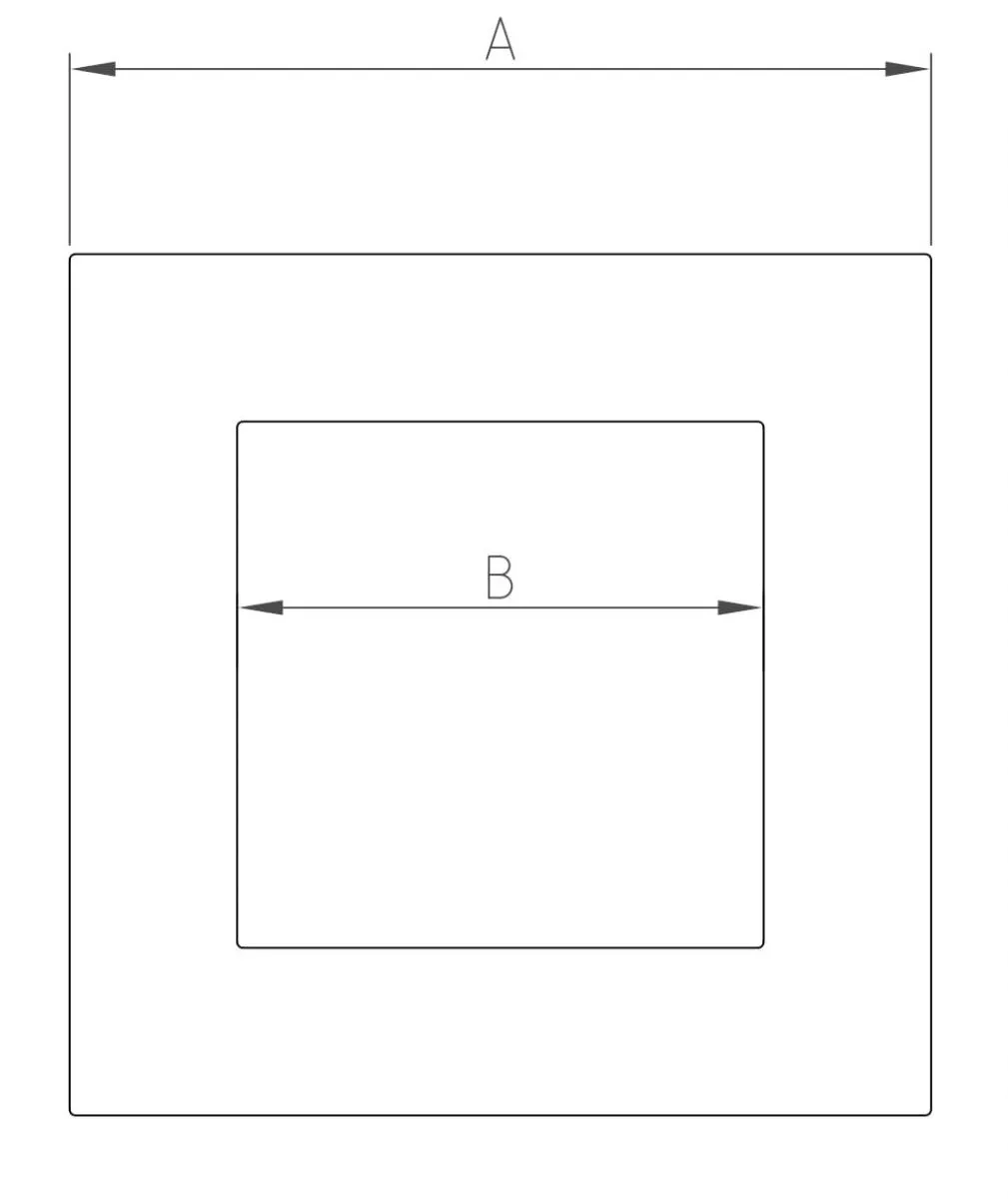

Dimensions:

Model A B
ZT11-9SQ.DRIVE 11 9
ZT14-9SQ.DRIVE 14 9
ZT14-11SQ.DRIVE 14 11
ZT17-9SQ.DRIVE 17 9
ZT17-11SQ.DRIVE 17 11
ZT17-14SQ.DRIVE 17 14
ZT22-14SQ.DRIVE 22 14
ZT22-17SQ.DRIVE 22 17
ZT22-19SQ.DRIVE 22 19
ZT27-17SQ.DRIVE 27 17
ZT27-22SQ.DRIVE 27 22
ZT35-27SQ.DRIVE 35 27
ZT36-22SQ.DRIVE 36 22
ZT36-27-36SQ.DRIVE 36 27
