Features:
Size 1/4" BSP only
Function 3 way normally Closed (power to open)
Valve Operation Direct Acting
Body 304 Stainless Steel
Seat FKM
Pressure Range 0 to 13 BAR
Media Nonagressive media
1/4” ported 3 way 304 Stainless Steel normally closed (power to open) direct acting solenoid valve with a nylon encapsulated coil. Standard with manual override and LED connector plug (IP65). Typical applications include pilot valve for air and fluid as well as vacuum applications. Threads conform to IS07/1 sealing threads.
*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC
For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

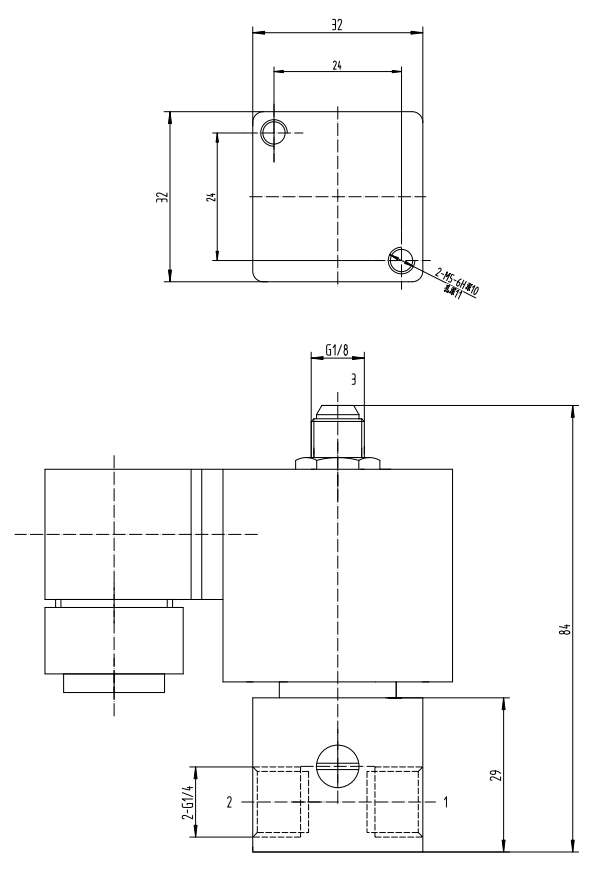

All dimensions in mm unless shown otherwise.

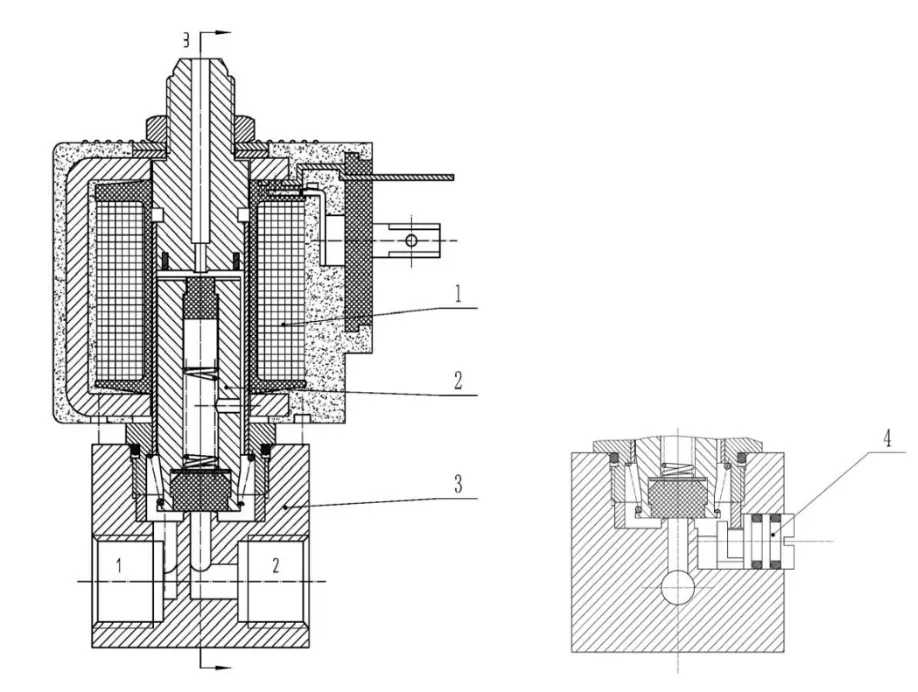

Number | Item | Material |
---|---|---|
1 | Coil | Epoxy |
2 | Armature | Martensitic stainless steel |
3 | Valve Body | 304 Stainless Steel |
4 | Manual Override | 304 Stainless Steel |
