Features:
Size 1/4" BSP only
Function 3 way normally Open (power to close)
Valve Operation Direct Acting
Body 304 Stainless Steel
Seat FKM
Pressure Range 0 to 13 BAR
Media Nonagressive media
1/4" ported 3 way 304 Stainless Steel normally open (power to close) direct acting solenoid valve with a nylon encapsulated coil. Standard with manual override and LED connector plug (IP65). Typical applications include pilot valve for air and fluid as well as vacuum applications. Threads conform to IS07/1 sealing threads.
*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC
For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

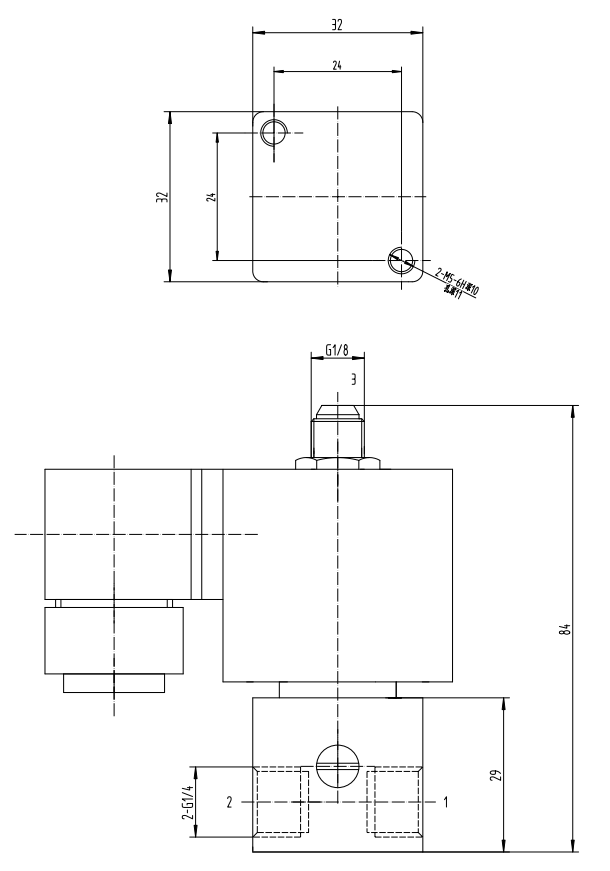

All dimensions in mm unless shown otherwise.
