Features:
Pad Size F03/F04 ~ F07/F10
Drive Size 9mm ~ 17mm
Body 304 Stainless Steel
Extension Height 100mm

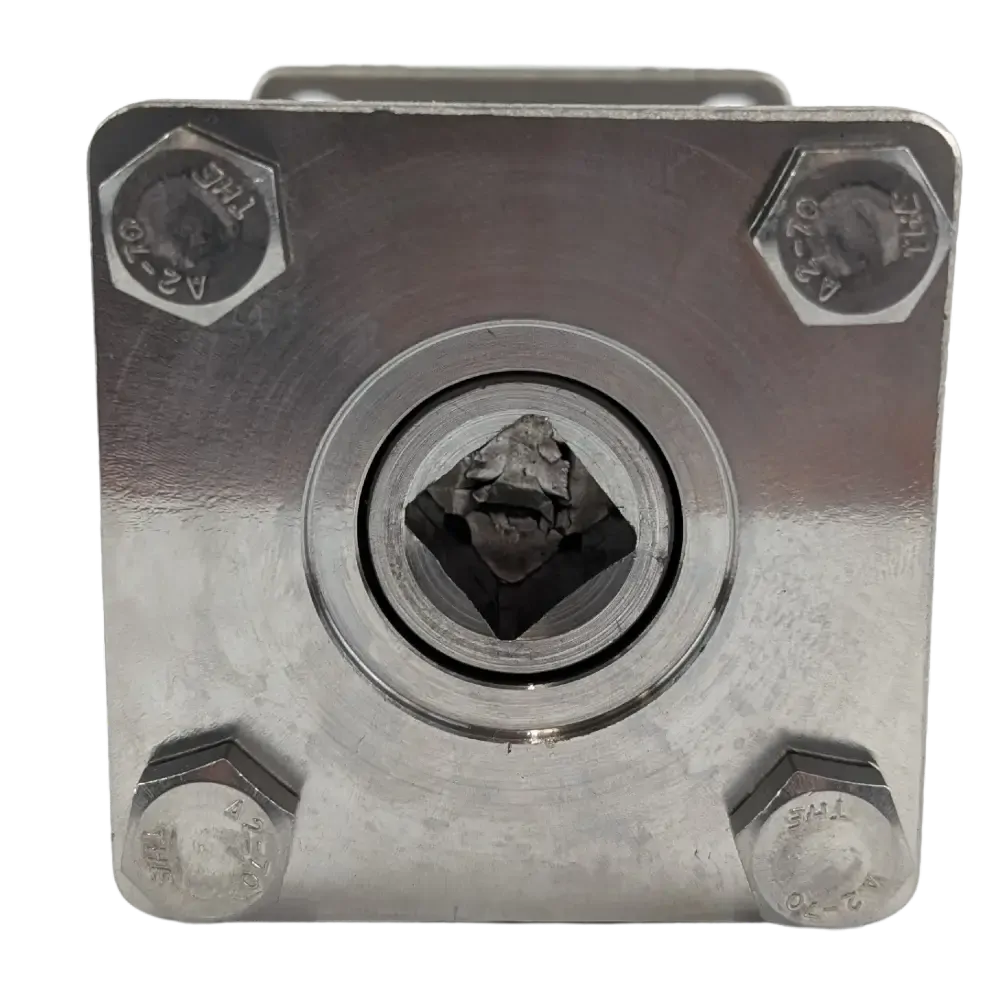

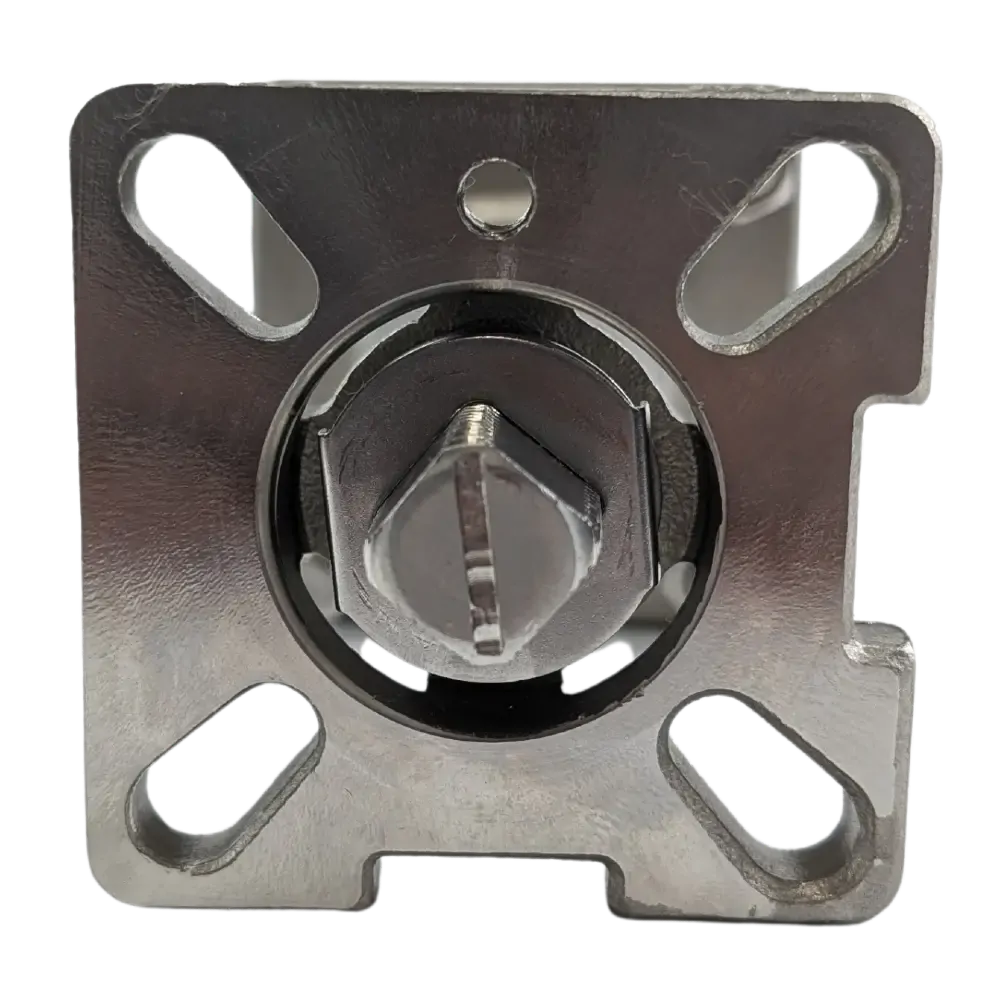

304 Stainless Steel Ball Valve Stem Extension to suit the BLS Series of Ball Valves. These extensions are designed to be bolted to the ISO pad on the ball valve and allow for the handle or actuator to be fixed to the ISO pad on the extension. Pad to Pad this extension offers a 100mm height across all sizes making this suitable for Thermal Standoff and other applications. The stem in this extension matches in construction to the Ball Valve stem featuring self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration.
Model | ISO Pad | Square Drive | Extension Height |
---|---|---|---|
SXT-F04-9 | F03/F04 | 9mm | 100mm |
SXT-F05-11 | F04/F05 | 11mm | 100mm |
SXT-F07-14 | F05/F07 | 14mm | 100mm |
SXT-F10-17 | F07/F10 | 17mm | 100mm |

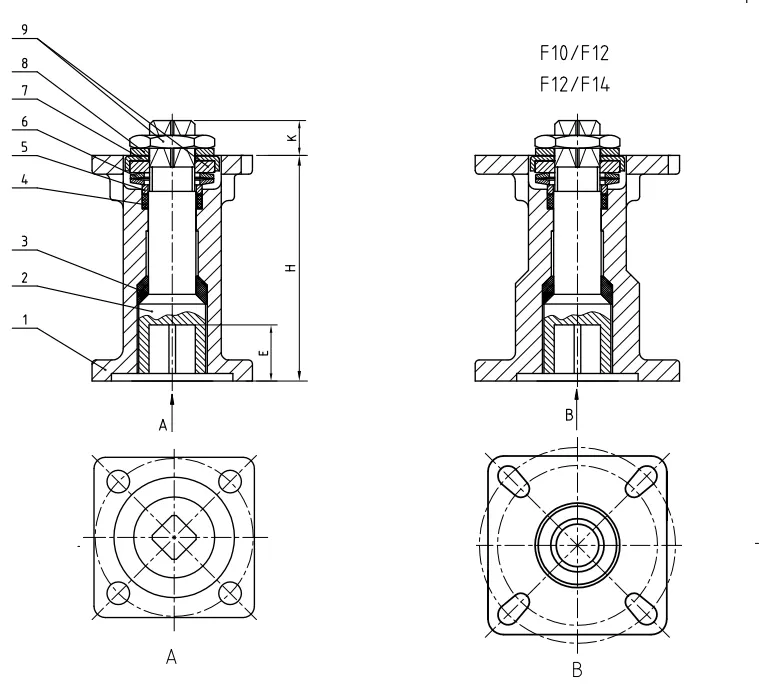

Model | ISO Pad | C | H | H1 | W |
---|---|---|---|---|---|
SXT-F04-9 | F04 | 9 | 100 | 130 | 117 |
SXT-F05-11 | F04/F05 | 11 | 100 | 130 | 134 |
SXT-F07-14 | F05/F07 | 14 | 100 | 140 | 203 |
SXT-F10-17 | F07/F10 | 17 | 100 | 150 | 255 |
All dimensions in mm unless stated otherwise

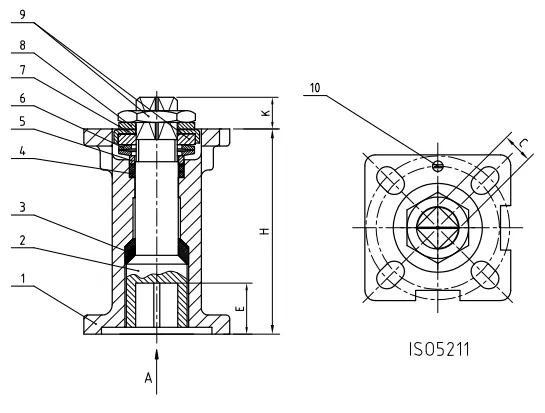

Item | Description | Material |
---|---|---|
1 | Body | CF8 |
2 | Stem | SS304 |
3 | Thrust Washer | PTFE |
4 | Stem Packing | PTFE |
5 | Packing Ring | SS304 |
6 | Belleville Washer | SS301 |
7 | Nut Stopper | SS304 |
8 | Plate Washer | SS304 |
9 | Handle | SS304 |
10 | Nut | SS304 |
11 | Lock Device | SS304 |
12 | Plastic Cover | Plastic |
