Features:
Size 50mm to 600mm
Body 316 Stainless Steel
Seat PTFE coated NBR
Disc 316 Stainless Steel
Pressure 10 BAR
Actuation Lever or Gearbox
The BFS series of butterfly valve has a 316 Stainless Steel body, 316 S.S disc and a PTFE coated NBR seat making them suited to a wide range of high end applications. These wafer butterfly valves will fit all standard flanges and are operated by either a lever (304 Stainless Steel) or gear box (FBE coated Ductile Iron however full stainless steel gear box is available upon request). The unique bonded catridge design gives them a longer life span, allow vacuum to be run through them and makes them replaceable if ever the need should arise. Common applications include food industry, chemicals, pharmaceuticals and other industrial applications. Please note that the number of guiding lugs vary according to size.
| Model | Size (mm) | Pressure Range | Temperature | Square drive size | ISO Mtg | Torque (Nm) |
|---|---|---|---|---|---|---|
| BFS50-L-T | 50 | 0 to 10 Bar | -10°C to 120°C | 9mm | F05 | 18.60 |
| BFS65-L-T | 65 | 0 to 10 Bar | -10°C to 120°C | 9mm | F05 | 25.20 |
| BFS80-L-T | 80 | 0 to 10 Bar | -10°C to 120°C | 9mm | F05 | 33.60 |
| BFS100-L-T | 100 | 0 to 10 Bar | -10°C to 120°C | 11mm | F07 | 56.00 |
| BFS125-L-T | 125 | 0 to 10 Bar | -10°C to 120°C | 14mm | F07 | 53.10 |
| BFS150-L-T | 150 | 0 to 10 Bar | -10°C to 120°C | 14mm | F07 | 133.80 |
| BFS200-L-T | 200 | 0 to 10 Bar | -10°C to 120°C | 17mm | F10 | 297.00 |
| BFS250-L-T | 250 | 0 to 10 Bar | -10°C to 120°C | 22mm | F10 | 486.00 |
| BFS300-L-T | 300 | 0 to 10 Bar | -10°C to 120°C | 22mm | F10 | 699.00 |
| BFS350-L-T | 350 | 0 to 10 Bar | -10°C to 120°C | 22mm | F10 | 825.00 |
| BFS400-L-T | 400 | 0 to 10 Bar | -10°C to 120°C | 22mm | F14 | 1,133.00 |
| BFS450-L-T | 450 | 0 to 10 Bar | -10°C to 120°C | 27mm | F14 | 1,253.00 |
| BFS500-L-T | 500 | 0 to 10 Bar | -10°C to 120°C | 27mm | F14 | 1,617.00 |
| BFS600-L-T | 600 | 0 to 10 Bar | -10°C to 120°C | 36mm | F16 | 2,622.00 |
Sizes above 300mm available on request

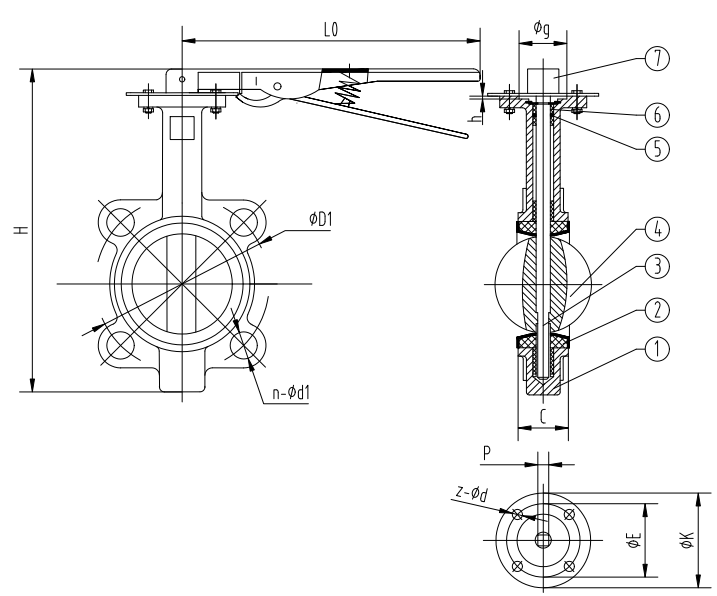

| DN | H | C | L0 | BS4504 PN10 | ANSI 150 | Table D | Table E | P | Upper Flange | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D1 | n-d1 | D1 | n-d1 | D1 | n-d1 | D1 | n-d1 | K | E | z-d | g | h | |||||
| 50 | 240 | 42 | 255 | 125 | 4-18 | 120.5 | 4-19 | 114 | 4-18 | 114 | 4-18 | 9 | 77 | 50 | 4-7 | 35 | 3 |
| 65 | 255 | 44.7 | 255 | 145 | 4-18 | 139.5 | 4-19 | 127 | 4-18 | 127 | 4-18 | 9 | 77 | 50 | 4-7 | 35 | 3 |
| 80 | 280 | 45.2 | 255 | 160 | 4(8)-18 | 152.5 | 4-19 | 146 | 4-18 | 146 | 4-18 | 9 | 77 | 50 | 4-7 | 35 | 3 |
| 100 | 300 | 52.1 | 255 | 180 | 4(8)-18 | 190.5 | 4(8)-19 | 178 | 4(8)-18 | 11 | 90 | 70 | 4-9 | 55 | 3 | ||
| 125 | 340 | 54.4 | 255 | 210 | 4(8)-18 | 216 | 4(8)-22 | 210 | 4(8)-18 | 210 | 4(8)-18 | 14 | 90 | 70 | 4-9 | 55 | 3 |
| 150 | 375 | 55.8 | 255 | 240 | 4(8)-23 | 241.5 | 4(8)-22 | 235 | 4(8)-18 | 235 | 4(8)-22 | 14 | 90 | 70 | 4-9 | 55 | 3 |
| 200 | 450 | 60.6 | 370 | 295 | 4(8)-23 | 298.5 | 4(8)-22 | 292 | 4(8)-18 | 292 | 4(8)-22 | 17 | 125 | 102 | 4-12 | 70 | 3 |
| 250 | 530 | 65.6 | 370 | 350 | 4(12)-23 | 362 | 4(12)-25 | 356 | 4(12)-22 | 22 | 125 | 102 | 4-12 | 70 | 3 | ||
| 300 | 595 | 76.9 | 370 | 400 | 4(12)-23 | 432 | 4(12)-25 | 406 | 4(12)-22 | 406 | 4(12)-26 | 22 | 125 | 102 | 4-12 | 70 | 3 |
| DN | H | C | L | p | Upper Flange | PN16 | ANSI 150 | Table E | Table D | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K | z-d | g | h | D1 | n-d1 | D1 | n-d1 | D1 | n-d1 | D1 | n-d1 | |||||
| 350 | 635 | 76.5 | 45 | 22 | 125 | 4-12 | 70 | 3 | 470 | 4(16)-27 | 476 | 4(12)-29 | 470 | 4(12)-26 | 470 | 4(12)-26 |
| 400 | 709 | 86.5 | 51.2 | 24 | 175 | 4-18 | 100 | 4 | 525 | 4(16)-30 | 539.5 | 4(16)-29 | ||||
| 450 | 750 | 105.6 | 51.2 | 27 | 175 | 4-18 | 100 | 4 | 585 | 4(20)-30 | 578 | 4(16)-32 | 584 | 4(16)-26 | ||
| 500 | 841 | 131.8 | 64.2 | 36 | 175 | 4-18 | 100 | 4 | 650 | 4(20)-33 | 635 | 4(20)-32 | ||||
| 600 | 1021 | 152 | 70.2 | 36 | 210 | 4-23 | 130 | 5 | 770 | 4(20)-36 | 749.5 | 4(20)-35 | ||||
| Item | Part Name | Material | Grade | Standard |
|---|---|---|---|---|
| 1 | Body | Stainless Steel | CF8M | ASTM A370 |
| 2 | Seat | PTFE coated NBR | ||
| 3 | Shaft | Stainless Steel | SS316 | ASTM A370 |
| 4 | Disc | Stainless Steel | CF8M | ASTM A370 |
| 5 | Bushing | Polymers | ||
| 6 | O-ring | NBR | ||
| 7 | Handle | Stainless Steel | SS304 | ASTM A370 |
| Notch Plate | Stainless Steel | SS304 | ASTM A370 | |
| Fasteners | Stainless Steel | SS304 | ASTM A370 |
Size 50mm to 600mm
Body 316 Stainless Steel
Seat PTFE coated NBR
Disc 316 Stainless Steel
Pressure 10 BAR
Actuation Lever or Gearbox
-
What is a Wafer Stainless Steel Butterfly Valve?
A stainless steel wafer butterfly valve is a butterfly valve that is designed to clamp between two flanges without the need for the bolts to go through threaded holes on the body of the butterfly valve. It sits like a 'wafer' between the flanges and therefore fit multiple flange standards unlike lugged which will be designed to fit only one standard. In this case we are talking about 316 stainless steel center line wafer butterfly valves. The center line refers to the location of the disc and shaft in relation to the body (there are other kinds of butterfly valves such as double & triple offset) where it is precisely in the middle. These valves have a PTFE coated NBR seat.
-
How does a Wafer Stainless Steel Butterfly Valve work?
A butterfly valve works by the shaft rotating 90 degrees which will take the position of the disc in the flow from open to close (or vice versa). When it is closed a seal will be formed between the disc and the seat effectively stopping the flow of the media. When it is opened again the disc comes away from the seat and when it is fully open sits side (smallest surface area facing) on to the direction of the upstream flow. This 90 degree turn will take place from either a lockable handle (has a notch plate to stop at different positions within the 90 degree turn) or a gear box. Both have stops to prevent turning the valve past 90 degrees.
-
How long will my Wafer Stainless Steel Butterfly Valve last?
Like any valve this depends upon the usage case of your butterfly valve, its environment, media and how many times it is cycled. For instance if it is on a clean wet media, in a clean environment and not cycled regularly the life will be decades. If it is on a corrosive media and in a dry application with a high cycle rate the life will be much shorter. We conduct regular lab testing and 6,000 cycles is a reasonable life cycle depending upon the application.
-
How do I install a Stainless Steel Butterfly Valve?
These wafer butterfly valves are designed to clamp between two flanges. The bolts will pass through from one flange to the other to give the clamping force on the valve and keep it in position. The seat of the valve also forms the gasket on the flanges so there is no need for a secondary gasket. The bolts should be tightened in a diagonal shape to avoid over tightening in one area. For a full list of instructions please visit our butterfly valve installation & maintenance guide.
-
What are typical uses of a Stainless Steel Butterfly Valve?
These are mainly used in corrosive environments or areas where a stainless steel body is needed. They can really be used in any application where the media, temperature and pressure are compatible.
-
