SKU: S25

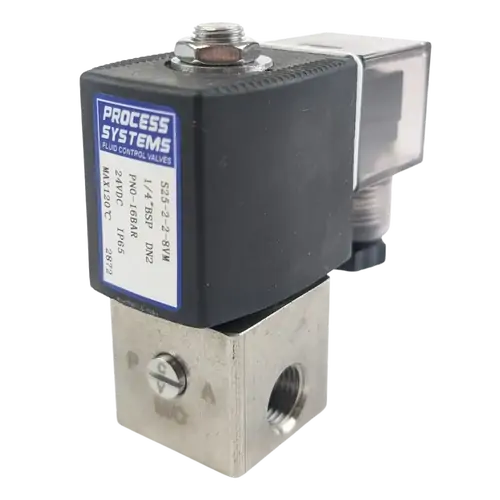

Stainless Steel Direct Acting Normally Closed Solenoid Valve

From $121.00

Inc GST
In Stock
Make an Enquiry

¼” ported 2 way 304 Stainless Steel normally closed (power to open) direct acting solenoid valve with a nylon encapsulated coil. Standard with manual override and LED connector plug (IP65). Typical applications include general industry, vacuum and some chemicals. Threads conform to IS07/1 sealing threads.

Model Port Size Orifice ømm CV Media Pressure Media Temperature Weight Kg Coil Specifications
S25-2-2-*VM ¼” BSP 2 0.1 0 to 12 BAR -10°Ct o 100°C 0.5 SC-A2
10 Volt Amps
10 Watts
Class F Insulation
100% ED

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

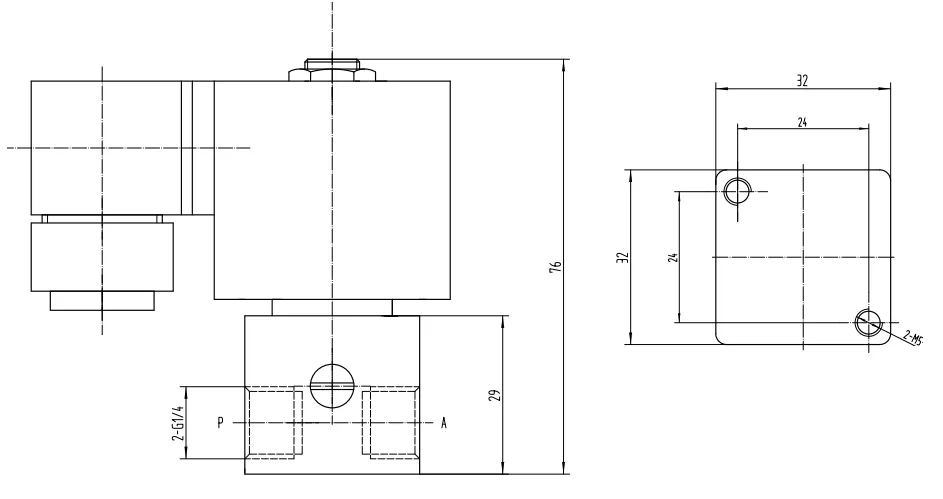

S25 two way direct acting solenoid valve dimensions

All dimensions in mm unless shown otherwise.

Size 1/4" BSP only
Function Normally Closed (power to open)
Valve Operation Direct Acting
Body 304 Stainless Steel
Seat FKM
Pressure Range 0 to 12 BAR
Media Nonagressive media
