SKU: S26

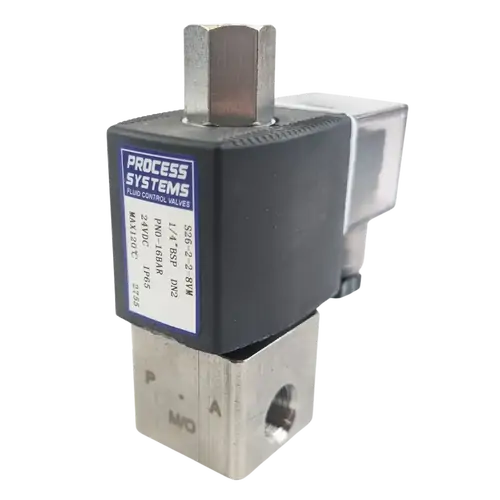

Stainless Steel Direct Acting Normally Open Solenoid Valve

From $132.00

Inc GST
In Stock
Make an Enquiry

¼” ported 2 way 304 Stainless Steel normally open (power to close) direct acting solenoid valve with a nylon encapsulated coil. Standard with manual override and LED connector plug (IP65). Typical applications include general industry, vacuum and some chemicals. Threads conform to IS07/1 sealing threads. The manual override is operated by screwing down the operator through the top of the valve.

Model Port Size Orifice ømm CV Media Pressure Media Temperature Weight Kg Coil Specifications
S26-2-2-*VM ¼” BSP 2 0.1 0 to 16 BAR -10°C to 100°C 0.5 SC-A2
10 Volt Amps
10 Watts
Class F Insulation
100% ED

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

S26 Two way normally open solenoid valve dimensions

All dimensions in mm unless shown otherwise.

Size 1/4" BSP only
Function Normally Open (power to close)
Valve Operation Direct Acting
Body 304 Stainless Steel
Seat FKM
Pressure Range 0 to 12 BAR
Media Nonagressive media

.
.
