Features:
Size 1/2" to 2" BSP
Body 316 Stainless Steel
Seat Stainless Steel
Pressure Range 0 to 13 BAR
Forged 316 Stainless Steel threaded gate valve designed to ANSI B16.34. Qualified BSP threaded female ends with an aluminium handle. This gate vavle is tested and Inspected according to API598 for quality assurance. All stainless construction gives it a wide range of industry and media uses including water, gas, oil and some acids. Simple to use, install and maintain.
Model | BSP | DN (mm) | Pressure Range | Media Temp | Weight (kg) |
---|---|---|---|---|---|
GVS-04 | ½” | 15 | 0 to 13 BAR | 0 to 180°C | 0.45 |
GVS-05 | ¾” | 20 | 0 to 13 BAR | 0 to 180°C | 0.55 |
GVS-06 | 1” | 25 | 0 to 13 BAR | 0 to 180°C | 0.7 |
GVS-07 | 1 ¼” | 32 | 0 to 13 BAR | 0 to 180°C | 1 |
GVS-08 | 1 ½” | 40 | 0 to 13 BAR | 0 to 180°C | 1.3 |
GVS-09 | 2” | 50 | 0 to 13 BAR | 0 to 180°C | 1.8 |

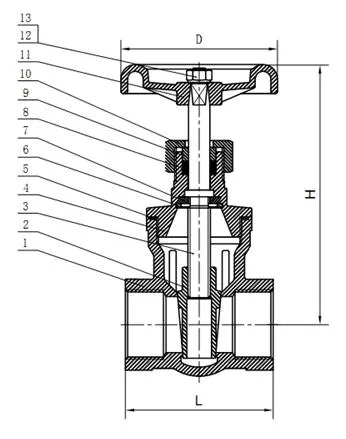

Model | Size | DN | L | H | D |
---|---|---|---|---|---|
GVS-04 | ½” | 15 | 55 | 95 | 62 |
GVS-05 | ¾” | 20 | 61 | 100 | 72 |
GVS-06 | 1” | 25 | 68 | 105 | 72 |
GVS-07 | 1 ¼” | 32 | 72 | 125 | 78 |
GVS-08 | 1 ½” | 40 | 79 | 145 | 95 |
GVS-09 | 2” | 50 | 87 | 165 | 95 |
All dimensions in mm unless shown otherwise.
Number | Name | Material |
---|---|---|
1 | Body | ASTM A351 CF8M |
2 | Disc | ASTM A351 CF8M |
3 | Stem | ASTM A276 316 |
4 | Bonnet | ASTM A351 CF8M |
5 | Body Gasket | PTFE |
6 | Snap Ring | ASTM A276 316 |
7 | Washer | ASTM A276 316 |
8 | Packing | PTFE |
9 | Packing Sleeve | ASTM A276 304 |
10 | Packing Gland | ASTM A351 CF8M |
11 | Hand Wheel | Aluminium Alloy |
12 | Nut | ASTM A194-B8M |
13 | Plain Washer | ASTM A276 304 |
