Features:
Size 1/8" to 1/4" BSP
Function Normally Closed (power to open)
Valve Operation Direct Acting
Body 304 Stainless Steel
Seat FKM
Pressure Range 0 to 25 BAR (depend on size)
Media Non aggressive media

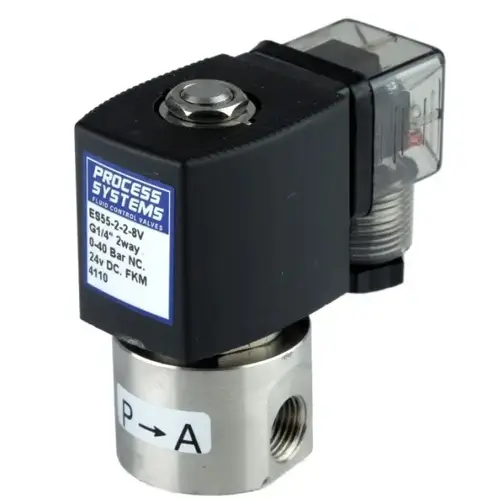

A normally closed (power to open) direct acting solenoid valve with a 304 Stainless Steel machined body and stainless steel operator. Suitable for low head and zero head applications with a Viton (FKM) seat. Liquids to 50 centistoke viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug. Typical Applications include tank drain, iodine dosing for dairies, chemicals and other general industry. Threads conform to IS07/1 sealing threads.
Model | Port Size (BSP) | Orifice ømm | CV | Pressure (BAR) | Temperature | Coil |
---|---|---|---|---|---|---|
ES55-1-1-*V | 1/8 | 1 | 0.04 | 0~25 | -10°C to 95°C | SC-N14 16 Watts 27 Volt Amps Class H Insulation 100% Ed |
ES55-2-2-*V | 1/4 | 2 | 0.1 | 0~16 | -10°C to 95°C | |
ES55-2-3-*V | 1/4 | 3 | 0.2 | 0~10 | -10°C to 95°C | |
ES55-2-4-*V | 1/4 | 4 | 0.4 | 0~6 | -10°C to 95°C |
*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC
For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.
All dimensions in mm unless shown otherwise.

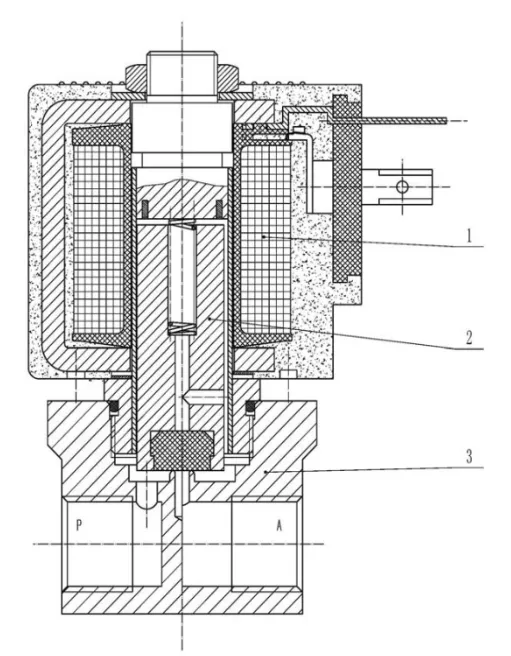

Number | Item | Material |
---|---|---|
1 | Coil | Epoxy |
2 | Armature | Martensitic stainless steel |
3 | Valve Body | 304 Stainless Steel |
