Features:
Size 1/2" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body 304 Stainless Steel
Seat RPTFE
Pressure Range 0.5 to 25 BAR
Media Steam, Hot Oil

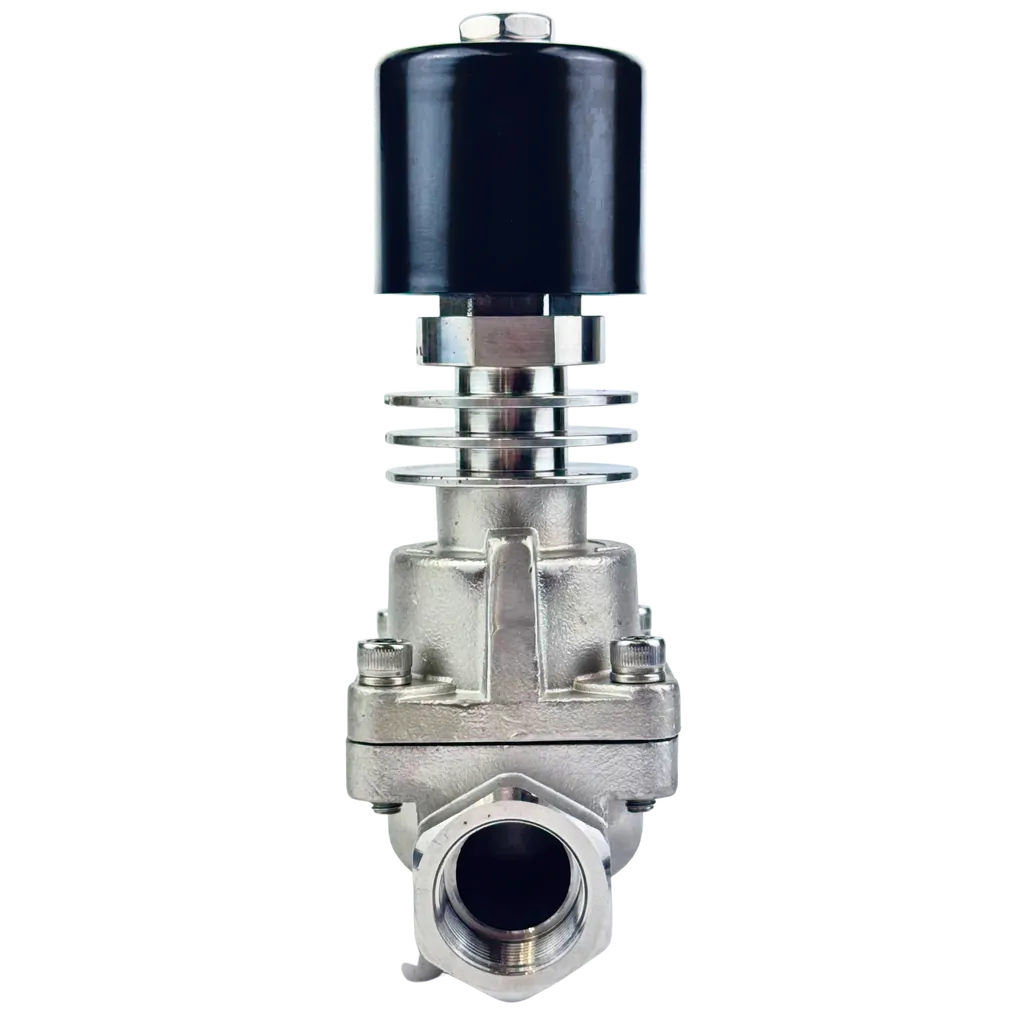

A very high temperature normally closed (power to open) piston type solenoid valve with a 304 Stainless Steel body and reinforced Teflon seats. Mainly used for high temperature applications as it will do up to 200°C saturated steam and up to 225°C in other media such as hot oil. Will handle fluids up to 50 centistoke viscosity. Typical Applications include steam, laundry equipment, hot oil, steam curing beds, boilers & general industry. Please note this is a hard PTFE seat so at low pressures/temperatures it may not give a bubble tight seal. Threads conform to ISO 7.1 Sealing Threads.
Model | Port Size (BSP) | Orifice ømm | CV | Pressure Steam | Pressure Air/Oil | Coil Specifications |
---|---|---|---|---|---|---|
S75T-4-15-*T | 1/2 | 15 | 4.5 | 0.5 to 15 BAR | 0.5 to 25 BAR | SC-N16-* DIN Plug 24 Watts 24 Volt Amps 100% ED Class H Insulation IP65 |
S75T-5-20-*T | 3/4 | 20 | 9.3 | 0.5 to 15 BAR | 0.5 to 25 BAR | |
S75T-6-25-*T | 1 | 25 | 13.2 | 0.5 to 15 BAR | 0.5 to 25 BAR | |
S75T-8-35-*T | 1 ½ | 35 | 26 | 0.5 to 15 BAR | 0.5 to 25 BAR | |
S75T-9-50-*T | 2 | 50 | 48 | 0.5 to 15 BAR | 0.5 to 25 BAR | |
S75T-4-15-*TF | 1/2 | 15 | 4.5 | 0.5 to 15 BAR | 0.5 to 25 BAR | SC-H2 Flying Leads 25 watts 33 Volt Amps 100% ED Class H Insulation IP54 |
S75T-5-20-*TF | 3/4 | 20 | 9.3 | 0.5 to 15 BAR | 0.5 to 25 BAR | |
S75T-6-25-*TF | 1 | 25 | 13.2 | 0.5 to 15 BAR | 0.5 to 25 BAR | |
S75T-8-35-*TF | 1 ½ | 35 | 26 | 0.5 to 15 BAR | 0.5 to 25 BAR | |
S75T-9-50-*TF | 2 | 50 | 48 | 0.5 to 15 BAR | 0.5 to 25 BAR |
*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC
For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

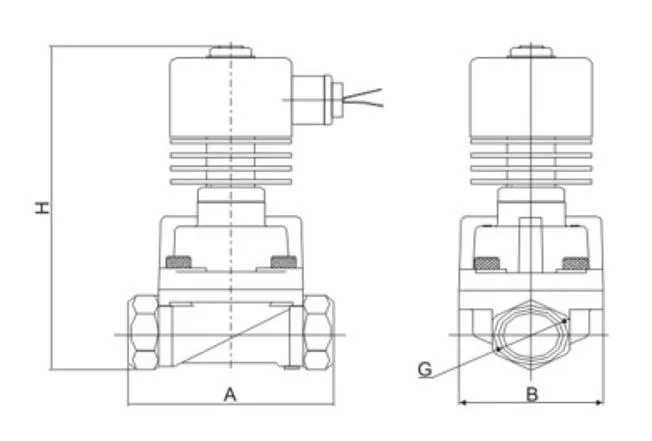

All dimensions in mm unless shown otherwise.
