StarDrive Sleeve

From $8.80

Inc GST
In Stock
Make an Enquiry

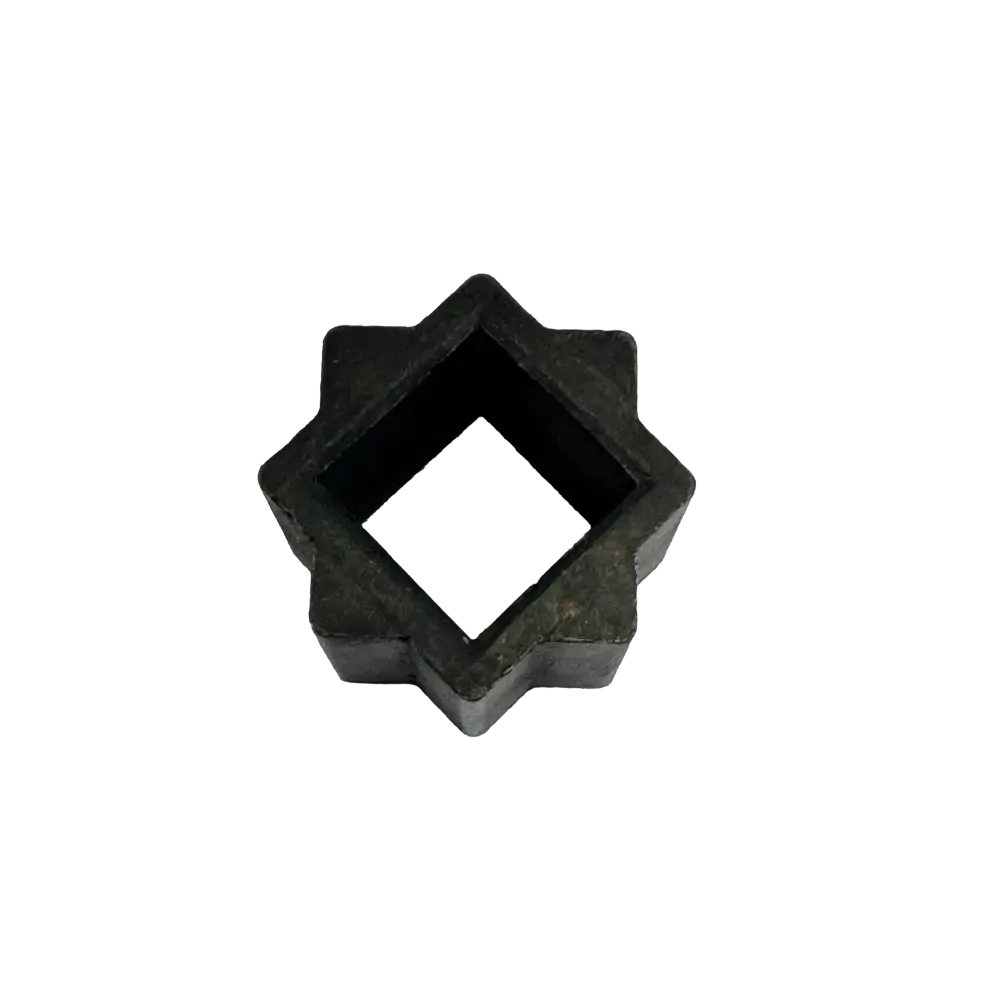

Sleeves that are used to insert into actuator to reduce the size of the female drive to fit onto the male drive/shaft a valve (most commonly ball, butterfly or gate valve). Come in all common sizes.

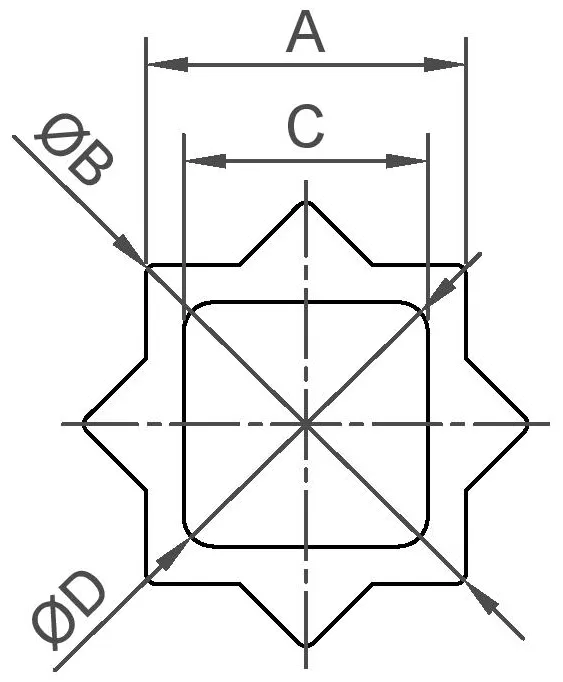

Model A ⌀B C ⌀D Length
ST11-9STARDRIVE 11 14.9 9 12.5 13
ST14-9STARDRIVE 14 18.2 9 12.5 16
ST14-11STARDRIVE 14 18.2 11 15.2 16
ST17-9STARDRIVE 17 22.2 9 12.5 19
ST17-11STARDRIVE 17 22.2 11 15.2 19
ST17-14STARDRIVE 17 22.2 14 19.2 19
ST19-11STARDRIVE 19 25.2 11 15.2 21
ST19-14STARDRIVE 19 25.2 14 19.2 21
ST19-17STARDRIVE 19 25.2 17 23.2 21
ST22-14STARDRIVE 22 28.2 14 19.2 24
ST22-17STARDRIVE 22 28.2 17 23.2 24
ST22-19STARDRIVE 22 28.2 19 26.2 24
ST27-17STARDRIVE 27 36.2 17 23.2 29
ST27-22STARDRIVE 27 36.2 22 29.2 29
ST36-19STARDRIVE 36 48.2 19 26.2 38
ST36-22STARDRIVE 36 48.2 22 29.2 38
ST36-27STARDRIVE 36 48.2 27 37.2 38
ST46-27STARDRIVE 46 60.2 27 37.2 48
ST46-36STARDRIVE 46 60.2 36 49.2 48

Size 11mm to 46mm
Body Cast Steel
Function Star drive adaptor sleeve
Factory Accredited CE, ISO 9001, TUV

  • What is a Star Drive Sleeve?

    A star drive sleeve adapts a male star drive to a female square drive. Usually used for adapting ball and butterfly valves to electric or pneumatic actuators.

  • How does a Star Drive Sleeve work?

    The star drive fits into the female drive on an actuator. This will then have a smaller square drive inside it which allows a step down in size to meet the male valve stem size

  • How long will my Star Drive Sleeve last?

    This will depend upon the cycle rate and fit into the actuator. The fit should be tight to avoid movement of the drive. If it is tight and your actuator is not hitting its stops with a high impact the drive should last the life of your valve.

  • How do I install a Star Drive Sleeve between a valve & actuator?

    The star drive will be inserted into the female port in the bottom of the actuator. It should also be tested to make sure it is tight on the male stem of the valve. Once you are sure the sizes and fitting is correct the drive may need to be pressed into the female actuator port with some force. Once this is in place the male stem of the valve can be inserted into the square of the drive.

  • What are typical uses of Star Drive Sleeve?

    These are used to adapt between different actuator and valve stem sizes.

  • How long will my product take to get to me?

    This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.

  • What warranty do I get?

    All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all product leaves our warehouse tested and inspected so there are rarely any issues. Also once your sleeves is in and operating it will most likely continue to do so for a very long time.

Others Also Bought

ST

StarDrive Sleeve

Features:

Size 11mm to 46mm
Body Cast Steel
Function Star drive adaptor sleeve
Factory Accredited CE, ISO 9001, TUV

Description:

Sleeves that are used to insert into actuator to reduce the size of the female drive to fit onto the male drive/shaft a valve (most commonly ball, butterfly or gate valve). Come in all common sizes.

.

StarDrive Sleeve

ST

Dimensions:

Model A ⌀B C ⌀D Length
ST11-9STARDRIVE 11 14.9 9 12.5 13
ST14-9STARDRIVE 14 18.2 9 12.5 16
ST14-11STARDRIVE 14 18.2 11 15.2 16
ST17-9STARDRIVE 17 22.2 9 12.5 19
ST17-11STARDRIVE 17 22.2 11 15.2 19
ST17-14STARDRIVE 17 22.2 14 19.2 19
ST19-11STARDRIVE 19 25.2 11 15.2 21
ST19-14STARDRIVE 19 25.2 14 19.2 21
ST19-17STARDRIVE 19 25.2 17 23.2 21
ST22-14STARDRIVE 22 28.2 14 19.2 24
ST22-17STARDRIVE 22 28.2 17 23.2 24
ST22-19STARDRIVE 22 28.2 19 26.2 24
ST27-17STARDRIVE 27 36.2 17 23.2 29
ST27-22STARDRIVE 27 36.2 22 29.2 29
ST36-19STARDRIVE 36 48.2 19 26.2 38
ST36-22STARDRIVE 36 48.2 22 29.2 38
ST36-27STARDRIVE 36 48.2 27 37.2 38
ST46-27STARDRIVE 46 60.2 27 37.2 48
ST46-36STARDRIVE 46 60.2 36 49.2 48
