Features:
Size 1/2" to 2" BSP & Solvent Weld
Body UV Stabalised PVC
Seat EPDM or FKM
Pressure Range 0 to 10 BAR
Temperature Ambient

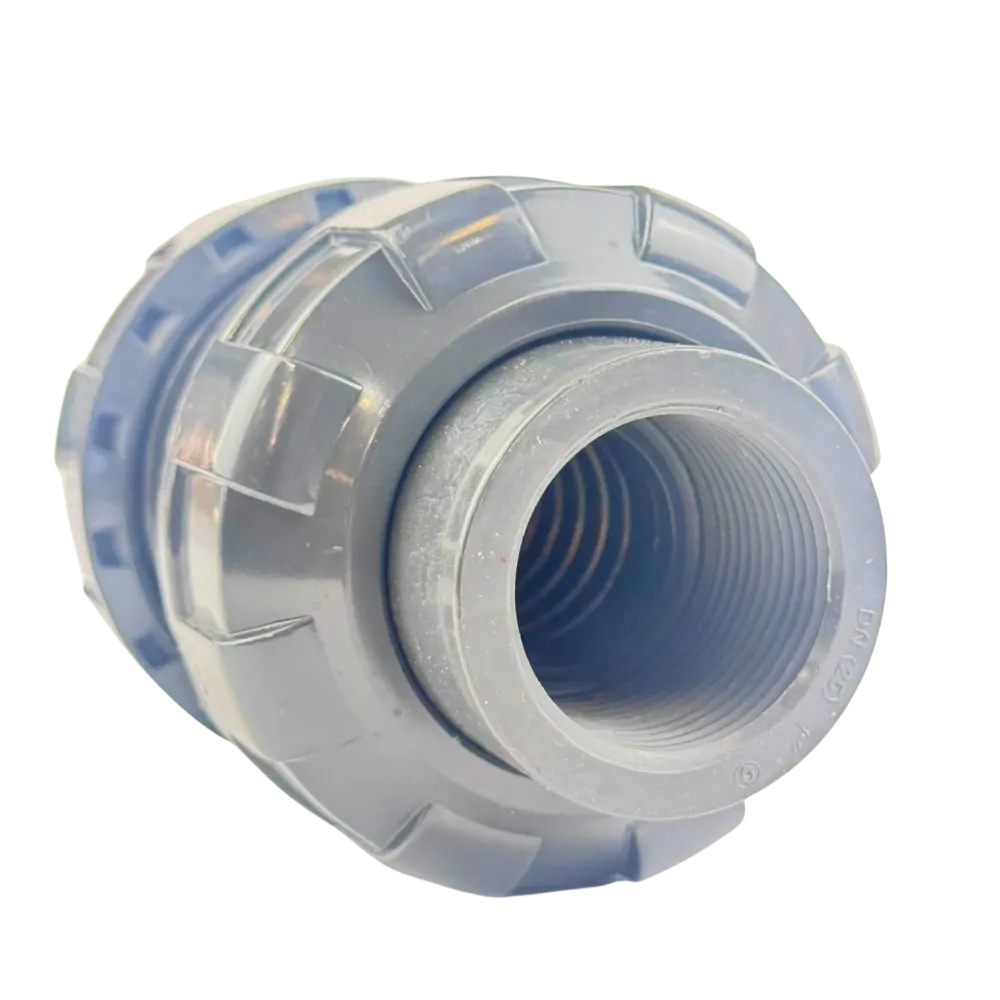

UV stabilised PVC true union ball check valve. Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). ). Also features a chem lock insert In the end so the true union can be removed for service work and the ball will not leak when in the closed position. Great for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration. Choose between Solvent Weld (ANSI Standard designed to fit Schdule 40 & 80 pipe) and BSP threaded ends. Stainless Steel spring allows it to be operated on any angle however this can be removed if it is incompatible with the media (in this case the check valve must be operated vertically ). Pls Note: The 1/2" version of this product does not contain a spring.
Model | Size | DN(mm) | Media Pressure | Media Temperature |
---|---|---|---|---|
BCPEB-04 | 1/2 | 15 | 0 to 10 Bar | Ambient |
BCPEB-05 | 3/4 | 20 | 0 to 10 Bar | Ambient |
BCPEB-06 | 1 | 25 | 0 to 10 Bar | Ambient |
BCPEB-07 | 1 ¼ | 32 | 0 to 10 Bar | Ambient |
BCPEB-08 | 1 ½ | 40 | 0 to 10 Bar | Ambient |
BCPEB-09 | 2 | 50 | 0 to 10 Bar | Ambient |
Change the 'E' to a 'V' for FKM. Change the 'B' to an 'S' for Solvent Weld.

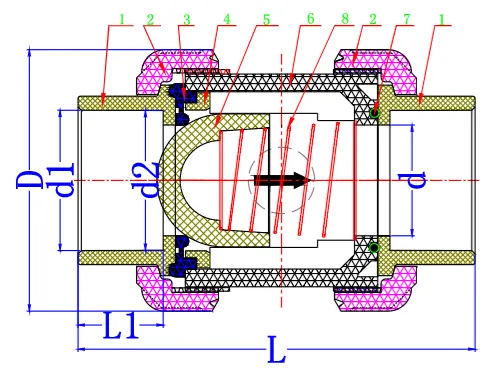

Model | Size | D | d1 | d2 | L | L1 |
---|---|---|---|---|---|---|
BCPEB-04 | 1/2 | 54 | 21.4 | 21.25 | 91 | 23 |
BCPEB-05 | 3/4 | 63 | 26.75 | 26.58 | 106.5 | 26 |
BCPEB-06 | 1 | 73.5 | 33.52 | 33.28 | 125 | 29 |
BCPEB-07 | 1 ¼ | 84.5 | 42.28 | 42.05 | 141 | 33 |
BCPEB-08 | 1 ½ | 98 | 48.4 | 48.12 | 150.5 | 35.5 |
BCPEB-09 | 2 | 119 | 60.45 | 60.18 | 169.5 | 38.5 |
All dimensions in mm unless shown otherwise.

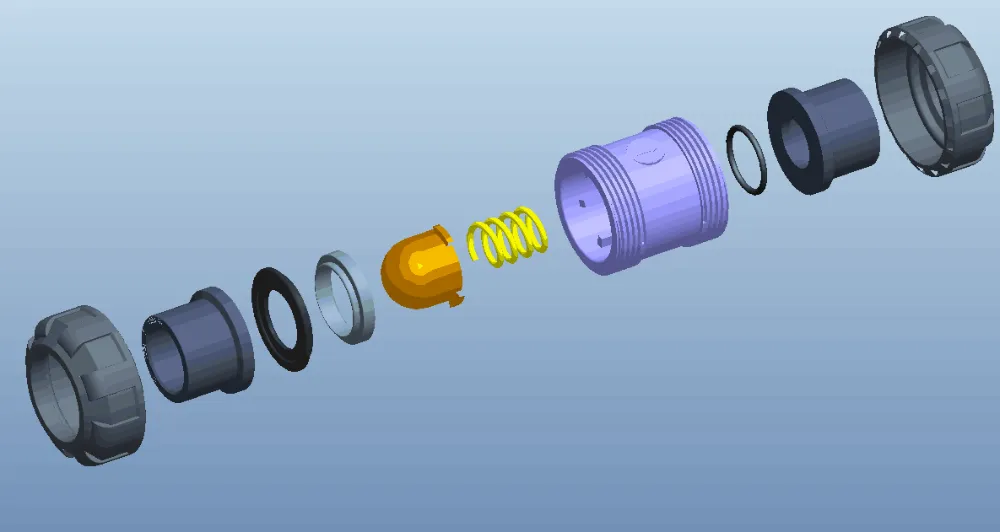

Item | Material |
---|---|
Body | UV Stabalised PVC |
Spring | 304 Stainless Steel |
Ball | UV Stabalised PVC |
Seals | EPDM or FKM |
Seat | EPDM or FKM |
