Vacuum Generator

From $33.00

Inc GST
In Stock
Make an Enquiry

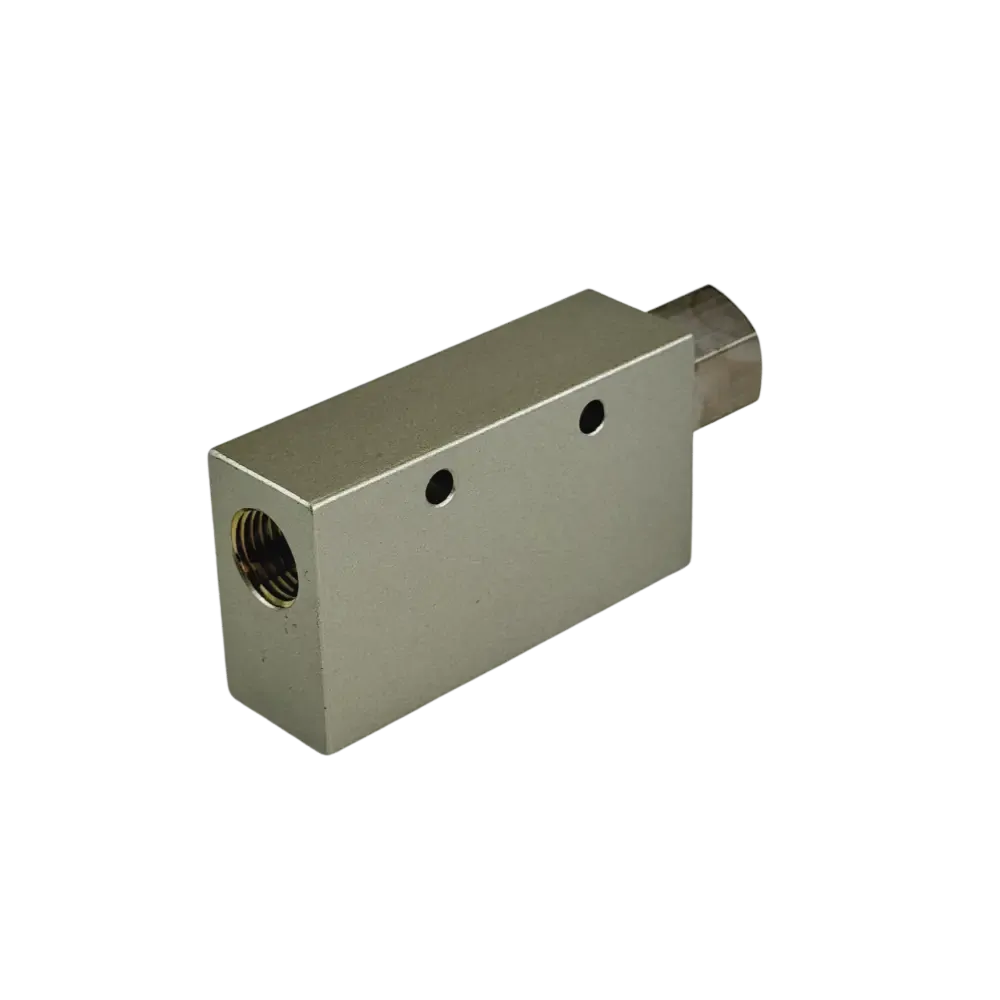

Aluminium vacuum generator commonly used in place of vacuum pump. Vacuum is created by venturi effect, passing compressd air by an open orrifice. Medium temperature range or 0°C to 60°C. Cheaper way of creating vacuum for simple applications instead of vacuum pump.

Model Size Nominal Vacuum Generated Air Consumption Air Displacement
VAC-01 ⅛” -80 kpa 44 L/min 27 L/min
VAC-02 ¼” -80 kpa 100 L/min 63 L/min
VAC-03 ⅜” -80 kpa 180 L/min 110 L/min

Pneumatic Vacuum Generator

Model A B C D E F G H
VAC-01 55 45 20 4 1/8" 16 10 32
VAC-02 78 63 25 4.6 1/4" 20 11 35
VAC-03 105 85 31.5 6 3/8" 25 15 40

All dimensions in mm unless shown otherwise.

Size 1/8" to 3/8" BSP
Function Vacuum generator
Body Aluminium
Pressure Range 0.5 to 10 BAR
Media Air

Others Also Bought

VAC

Vacuum Generator

Features:

Size 1/8" to 3/8" BSP
Function Vacuum generator
Body Aluminium
Pressure Range 0.5 to 10 BAR
Media Air

Description:

Aluminium vacuum generator commonly used in place of vacuum pump. Vacuum is created by venturi effect, passing compressd air by an open orrifice. Medium temperature range or 0°C to 60°C. Cheaper way of creating vacuum for simple applications instead of vacuum pump.

Model Size Nominal Vacuum Generated Air Consumption Air Displacement
VAC-01 ⅛” -80 kpa 44 L/min 27 L/min
VAC-02 ¼” -80 kpa 100 L/min 63 L/min
VAC-03 ⅜” -80 kpa 180 L/min 110 L/min
.

Vacuum Generator

VAC

Dimensions:

Pneumatic Vacuum Generator

Model A B C D E F G H
VAC-01 55 45 20 4 1/8" 16 10 32
VAC-02 78 63 25 4.6 1/4" 20 11 35
VAC-03 105 85 31.5 6 3/8" 25 15 40

All dimensions in mm unless shown otherwise.
