Features:
Size 50mm to 300mm
Flange ANSI 150
Body 316 Stainless Steel
Seat Metal
Pressure Range 0 to 20 BAR
Temperature 0 to 220°C
ANSI 150 Flanged Stainless Steel Swing Check Valve. Allows for a large flow rate and little head loss/pressure drop across the valve due to the full bore design and recess for the disc to sit in when fully open. Designed to BS 1868, flanges according to ASME/ANSI B16.5, face to face according to ASME B16.10, testing and inspection according to API598. Ideally suited for liquid fuels, diesel and oils.

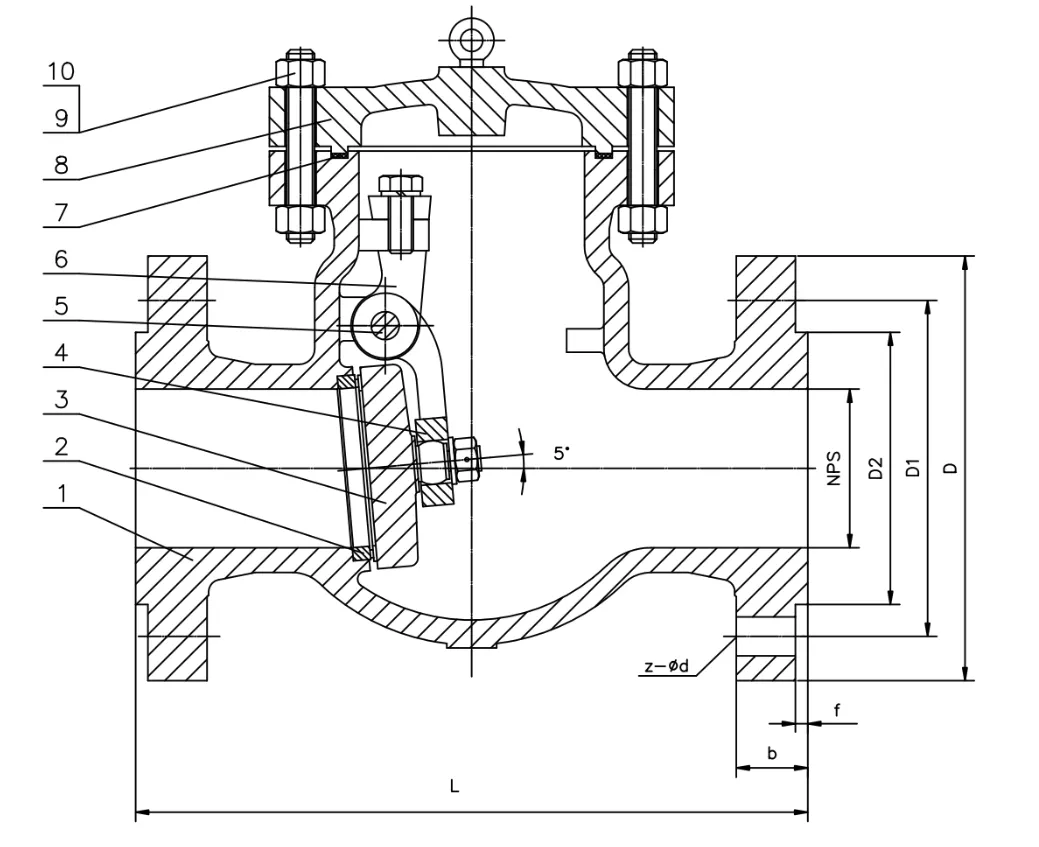

Model | NPS | L | D | D1 | D2 | b | f | z-d |
---|---|---|---|---|---|---|---|---|
SCFS-050 | 2" | 203 | 150 | 120.7 | 92.1 | 16.3 | 2 | 4-19 |
SCFS-065 | 2 1/2" | 216 | 180 | 139.7 | 104.8 | 17.9 | 2 | 4-19 |
SCFS-080 | 3" | 241 | 190 | 152.4 | 127 | 19.5 | 2 | 4-19 |
SCFS-100 | 4" | 292 | 230 | 190.5 | 157.2 | 24.3 | 2 | 8-19 |
SCFS-150 | 6" | 356 | 280 | 241.3 | 215.9 | 25.9 | 2 | 8-22 |
SCFS-200 | 8" | 495 | 345 | 298.5 | 269.9 | 29 | 2 | 8-22 |
SCFS-250 | 10" | 622 | 405 | 362 | 323.8 | 30.6 | 2 | 12-26 |
SCFS-300 | 12" | 699 | 485 | 431.8 | 381 | 32.2 | 2 | 12-26 |
All dimensions in mm unless shown otherwise.
Number | Name | Material |
---|---|---|
1 | Body | ASTM A351-CF8M |
2 | Seat | Integral Material |
3 | Disc | ASTM A351-CF8M |
4 | Hinge | ASTM A351-CF8M |
5 | Hinge Pin | ASTM A276-316 |
6 | Support | ASTM A351-CF8M |
7 | Gasket | 316/Graphite |
8 | Bonnet | ASTM A351-CF8M |
9 | Bonnet Bolt | ASTM A193 Gr.B8 |
10 | Bonnet Bolt Nut | ASTM A194 Gr.8 |
